Barbed Tape / Razor Tape: A Comprehensive Guide
Introduction to Barbed Tape / Razor Tape
Barbed tape, also called razor tape or razor wire, stands as one of the most effective security solutions available today. Razor barbed tape incorporates sharp, metal blades tightly wrapped around a high-strength steel core wire, creating a formidable barrier against intruderSecurity forces primarily use razor barbed tape in military, border security, and high-security commercial applications Its primary function is to provide an added layer of protection, acting as a physical and psychological deterrent to potential trespassers.
BTO-10 (Barbed Tape Obstacle)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 10 ± 1
- Blade Width(mm): 13 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 25 ± 1

BTO-12 (Barbed Tape Obstacle)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 12 ± 1
- Blade Width(mm): 15 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 26 ± 1

BTO-18 (Barbed Tape Obstacle)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 18 ± 1
- Blade Width(mm): 15 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 33 ± 1

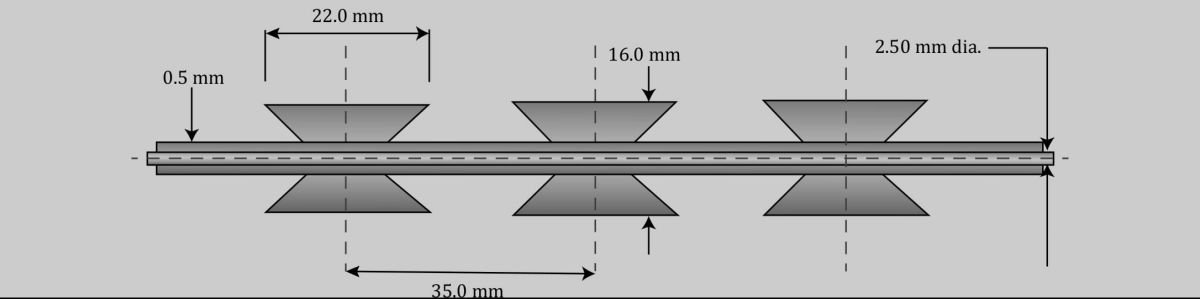

BTO-22 (Barbed Tape Obstacle)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 22 ± 1
- Blade Width(mm): 16 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 35 ± 1

BTO-28 (Barbed Tape Obstacle)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 28 ± 1
- Blade Width(mm): 15 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 45 ± 1

BTO-30 (Barbed Tape Obstacle)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 30 ± 1
- Blade Width(mm): 18 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 45 ± 2

CBT-60 (Concertina Barbed Tape)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 60 ± 2
- Blade Width(mm): 31 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 100 ± 2

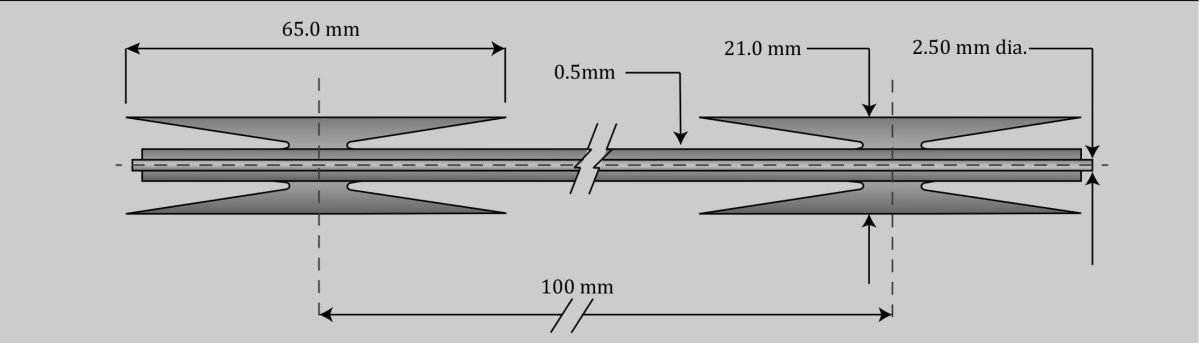

CBT-65 (Concertina Barbed Tape)
- Core Wire Diameter (mm): 2.5 ± 0.1
- Blade Length (mm): 65 ± 2
- Blade Width(mm): 21 ± 1
- Blade Thickness(mm): 0.5 ± 0.05
- Blade Spacing(mm): 100 ± 2

What Makes Razor Tape So Effective?
The unique design of razor tape makes it highly effective at preventing unauthorized access. The core wire, typically made of high-intensity metal, is resistant to cutting and tampering, offering exceptional durability. The sharp metal blades are stamped from metal strips, and they are placed at close intervals along the wire. This dense arrangement creates a barrier that is nearly impossible to breach with basic tools. The blades’ piercing and anti-grip properties ensure that anyone attempting to cross or climb over the wire will face serious difficulty.
Advantages of Razor Tape / Barbed Tape
-
High Security
Razor barbed tape is widely recognized for its superior security capabilities. The sharp, closely spaced blades create a highly effective deterrent against climbing, cutting, or tampering. This makes it an excellent choice for perimeter fencing. -
Durability
The wire and blades of razor tape are made from materials such as galvanized steel or stainless steel. These materials resist weathering, corrosion, and rust, ensuring the tape withstands harsh environmental conditions and maintains its effectiveness. -
Customization
You can customize barbed tape to fit specific security needs. Choose between materials such as galvanized or stainless steel, as well as various blade lengths, thicknesses, and spacings. Customization ensures the razor tape meets the precise requirements of your security project. -
Multiple Applications
Razor tape is versatile and can serve a variety of security applications, including military bases, border fences, correctional facilities, industrial sites, and even some residential properties. -
Quick Installation
Razor barbed tape installs easily on top of existing fences, walls, or gates. It is available in various forms like accordion style, flat wrap, single spiral, and welded razor wire mesh, making installation simple and quick. -
Cost-Effective
Compared to other high-security fencing solutions, razor tape is an affordable option. Its ease of installation and long-term durability make it a cost-effective solution for perimeter security.
Types of Barbed Tape / Razor Tape
Barbed tape comes in several different types, each suited to specific security needs:
- Accordion Style: Razor tape is wound into a compact accordion shape. It expands when installed, creating a wide perimeter barrier that is difficult to scale.
- Flat Wrap: Flat wrap razor tape is compact before installation but expands to form a continuous, sharp barrier once deployed. It is often used where space is limited for traditional fences.
- Single Spiral: This form consists of a single spiral of razor wire, creating a vertical, continuous barrier that prevents climbing.
- Welded Razor Wire Mesh: This variant features sharp blades welded into a mesh grid, offering a rigid structure ideal for high-security areas like military bases and correctional facilities.
Applications of Razor Tape / Barbed Tape
Razor barbed tape serves many purposes in securing various types of properties:
- Military and Border Security: Razor tape secures military installations and national borders, providing vital deterrence in high-risk areas.
- Prisons and Correctional Facilities: Razor tape prevents escapes and secures the perimeter of correctional facilities.
- Industrial and Commercial Sites: Businesses use razor tape to protect valuable assets and prevent unauthorized access and theft.
- Critical Infrastructure: Razor tape secures power plants, data centers, and other critical infrastructure, keeping these vital assets safe from intruders.
- Private Property and Agricultural Land: Razor tape protects private land or agricultural fields by acting as a boundary marker and deterrent to trespassing.
Conclusion
Barbed tape or razor tape is an essential security solution providing robust protection in various settings. Whether securing military bases, correctional facilities, or commercial properties, razor tape offers unmatched deterrence with its sharp, durable blades and customizable options. The high-strength core wire, combined with its adaptability, makes it ideal for enhancing perimeter security.
Dongfu provides customizable razor tape solutions, allowing you to select the right type and specifications for your needs. Contact us today to learn more about how razor tape can enhance the security of your facility.
Frequently Asked Questions (FAQs)
What is Razor Barbed Tape?
Razor barbed tape, also called razor wire, consists of metal strips with sharp blades wrapped around a steel core wire. It serves as a physical deterrent to unauthorized access.
What Materials Are Used to Make Razor Tape?
Manufacturers typically make razor tape from galvanized steel or stainless steel. These materials ensure durability and resistance to rust and corrosion.
Can Razor Tape Be Customized?
Yes, you can customize razor tape by adjusting the wire diameter, blade length, thickness, and spacing. Additionally, you can choose between galvanized or stainless steel for the material.
How Is Razor Tape Installed?
You can install razor tape easily on top of existing fences, walls, or gates. It comes in various forms, such as accordion style, flat wrap, single spiral, and welded wire mesh, which makes installation quick and simple.
Where Is Razor Tape Used?
Razor tape secures military and border security areas, prisons, correctional facilities, industrial sites, agricultural land, and critical infrastructure.
Is Razor Tape Safe to Install in Residential Areas?
Razor tape is generally unsuitable for residential areas due to its sharp blades. It is designed for high-security applications, making it better suited for more secure environments.
