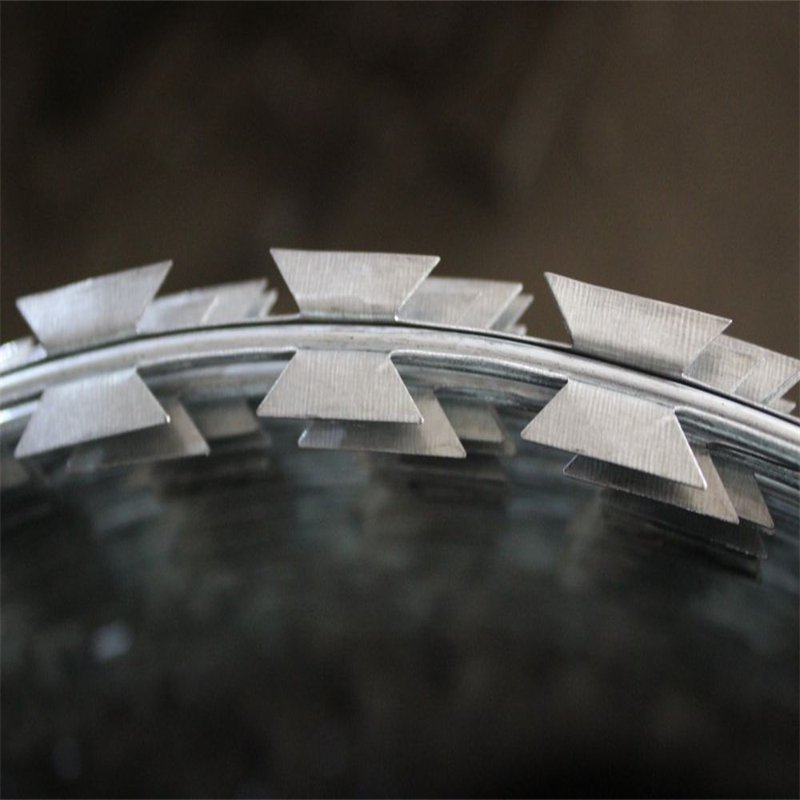

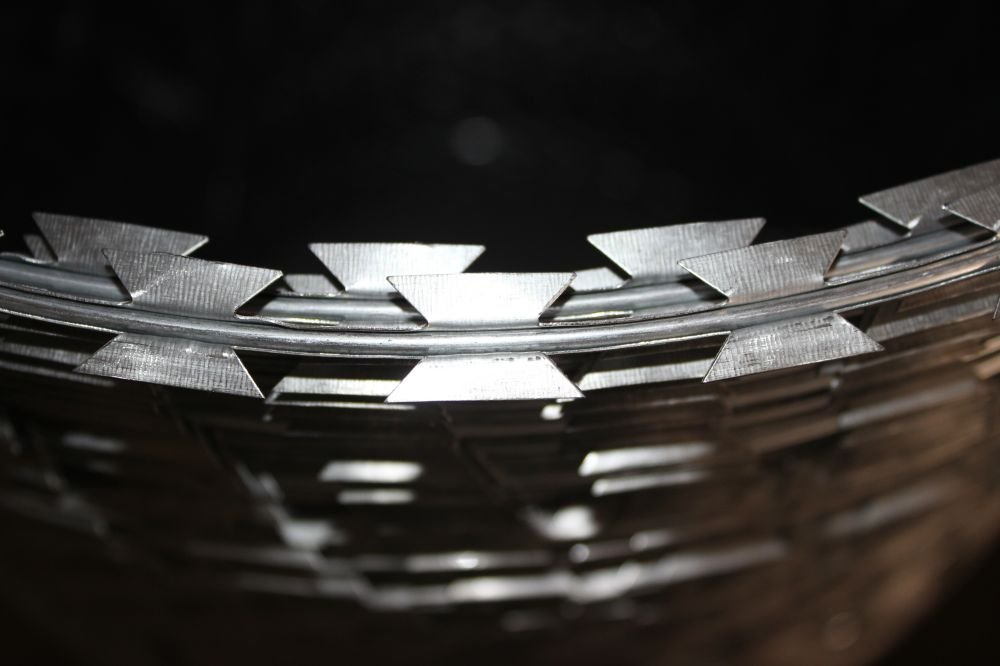

BTO-22 Razor Wire

BTO-22 Razor Wire is known for its effectiveness in providing superior security. With blades measuring 22 millimeters, it offers strong protection against unauthorized access and is favored for both its safety features and durability. Due to its balance between affordability and strength, it’s widely used in commercial and industrial settings.

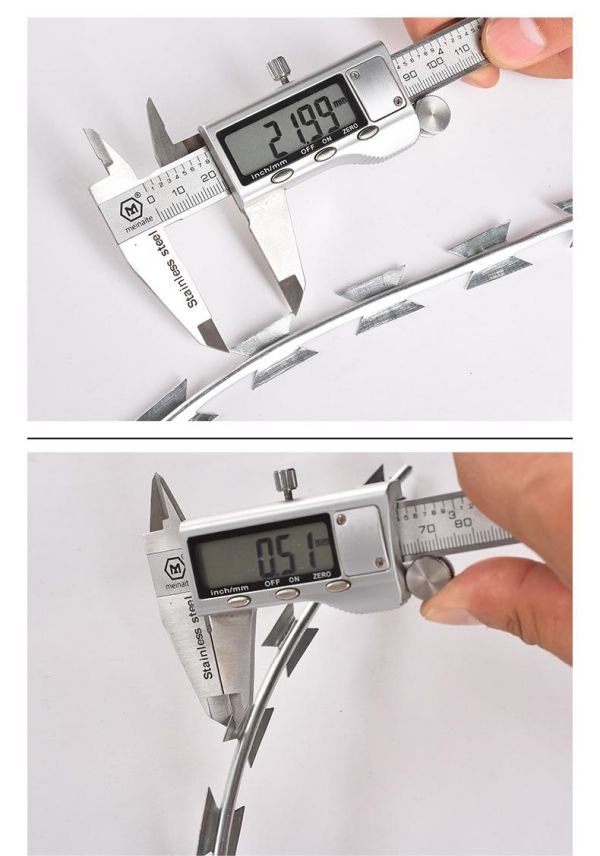

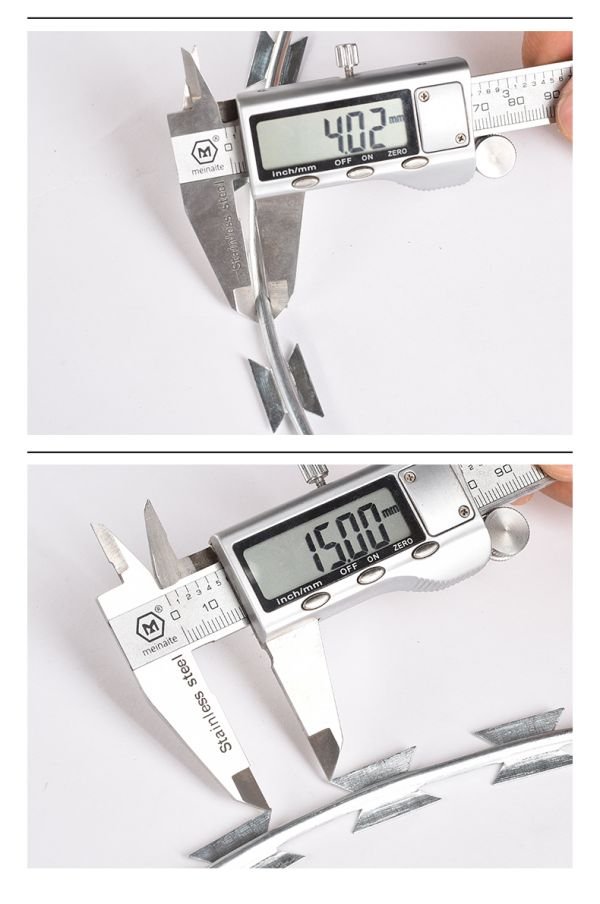

Mga pagtutukoy:

• Blade Type: BTO-22
• Barb Thickness: 0.5 ± 0.05 mm
• Barb Length: 22 ± 1 mm
• Barb Width: 16 ± 1 mm
• Barb Spacing: 35 ± 2 mm
• Core Wire Diameter: 2.5 ± 0.1 mm

BTO-22 Blade Razor Concertina Wire Details:

Modelo	Blade Thickness	Core Wire Diameter	Blade Length	Blade Width	Blade Space
BTO-22	0.45±0.05mm	2.5±0.1mm	22±1mm	15±1mm	34±1mm

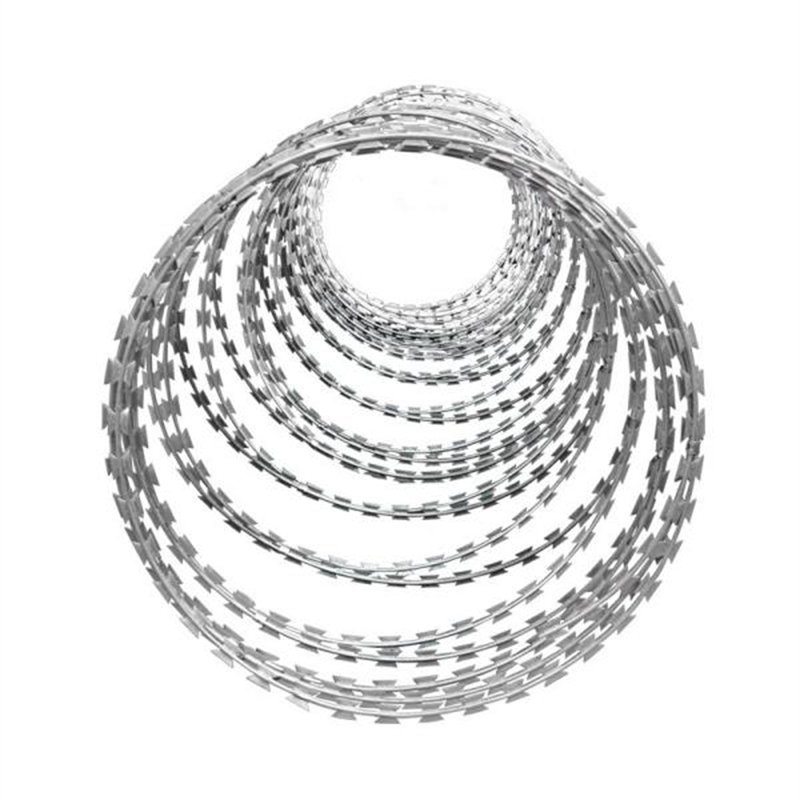

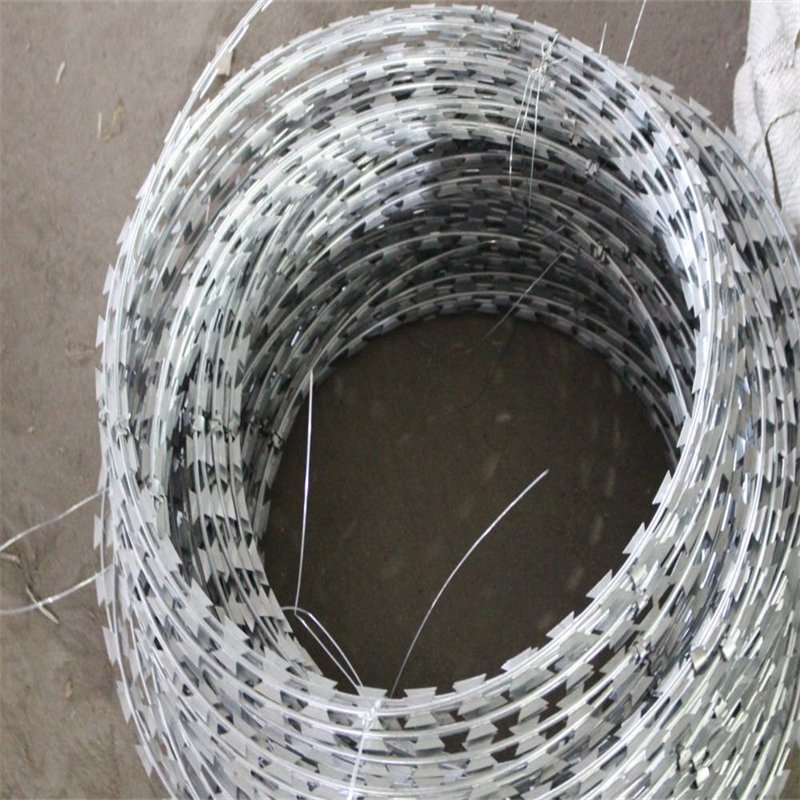

Crossed BTO 22 Concertina Wire 56 Loops (Loop Diameters, Haba, Clips Needed)

Blade Type	Mga Tala	Panlabas na Diameter	Pamantayang Haba sa bawat coil	No.of Loops
BTO-22	Uri ng krus	450mm	8-9m(3 Mga clip)	56
BTO-22	Uri ng krus	500mm	9-10m(3 Mga clip)	56
BTO-22	Uri ng krus	600mm	10-11m(3 Mga clip)	56
BTO-22	Uri ng krus	600mm	8-10m(5 Mga clip)	56
BTO-22	Uri ng krus	700mm	10-12m(5 Mga clip)	56
BTO-22	Uri ng krus	800mm	11-13m(5 Mga clip)	56
BTO-22	Uri ng krus	900mm	12-14m(5 Mga clip)	56
BTO-22	Uri ng krus	960mm	13-15m(5 Mga clip)	56
BTO-22	Uri ng krus	980mm	14-16m(5 Mga clip)	56

Common Applications:

BTO-22 Razor Wire is perfect for high-security locations, kabilang ang:

• Perimeter Fencing: Mainam para sa mga bilangguan, Mga Instalasyon ng Militar, at mga gusali ng pamahalaan.
• Pang-industriya & Commercial Properties: Protects warehouses, mga pabrika, and electrical facilities.
• Private Properties: Provides enhanced security for large estates and farms.

Its visibility and deterrent capabilities make it a preferred choice for both residential and industrial uses.

Mga Benepisyo:

• Effective Security: The sharp blades make climbing or bypassing the wire extremely difficult, ensuring robust protection.
• Epektibo sa Gastos: Despite its durability and strength, BTO-22 offers an affordable solution for large-scale security needs.
• Long-lasting Durability: Made from galvanized or stainless steel, it resists rust and corrosion for extended service life.
• Madaling Pag-install: Flexible enough for various setups, whether in concertina or straight-line form.

What is BTO-22 Razor Wire?

BTO-22 Razor Wire is a specific variant of razor wire featuring 22mm long blades. These medium-length blades effectively prevent unauthorized access. Ang BTO-22 model stands out for its combination of strength, affordability, at kadalian ng pag-install. These qualities make it a popular choice for both residential and industrial security applications.

Combining Concertina Razor Wire with BTO-22 Razor Wire

Concertina Razor Wire primarily serves large-scale perimeter protection, habang ang BTO-22 Razor Wire provides an additional layer of security along fences or acts as a standalone deterrent. By combining the two types of razor wire, you can create a layered security system that offers stronger protection.

Halimbawa na lang, install Concertina Razor Wire along the top of a fence or wall to create a visible and intimidating barrier. Pagkatapos ay, use BTO-22 Razor Wire as a secondary layer, either within the concertina coil or on a lower portion of the fence. This multi-layered approach significantly increases the difficulty for intruders to bypass the fence.

Types of Razor Wire and Their Features

Materials for Razor Wire

BTO-22 Razor Wire are made from high-quality materials that ensure long-lasting protection. Kabilang sa mga karaniwang materyales ang:

• Hot-Dipped Galvanized Steel: Offers excellent corrosion resistance, making it suitable for outdoor use in harsh conditions.
• Hindi kinakalawang na asero: Provides even greater durability and resistance to rust, ideal for long-term, high-security applications.
• High Zinc Coating: Adds additional corrosion resistance to galvanized steel, providing enhanced protection in humid or coastal environments.
• Painted Razor Wire: An additional layer of protection, often used in areas requiring extra resistance to environmental factors.

Coil and Blade Variations BTO-22

• Concertina Razor Wire: Magagamit sa single coil at double coil configurations, concertina wire typically comes in larger diameters (300mm to 1250mm), with spiral turns per coil ranging from 33 sa 55, depending on the coil size. These coils can stretch from 4 metro hanggang sa 20 mga metro, making them highly flexible and adaptable to different installation needs.

• BTO-22 Razor Wire: Ang BTO-22 variant features 22mm long blades and is specifically designed for high deterrence. The wire has a core diameter of 2.5 mm, with barb spacing at 35mm. Its sharp blades are highly effective at preventing climbing and cutting, making it a trusted choice for both residential and industrial fencing.



Pangwakas na Salita:

For an affordable, matagal na panahon, and highly effective security solution, BTO-22 is the ideal choice. Its medium-length blades provide a strong deterrent, making it suitable for both residential and industrial applications. The wire is easy to install and ensures reliable protection for your property.

BTO-22 Razor Wire FAQs:

1. What material is used for Razor Wire?
   It’s crafted from galvanized or stainless steel to ensure long-term durability and corrosion resistance.

2. Where is this wire commonly installed?
   It’s often used to secure perimeters at prisons, military sites, commercial facilities, and large private estates.

3. How does BTO-22 prevent unauthorized access?
   Its sharp, medium-length blades serve as both a physical barrier and a visual deterrent to intruders.

4. What is the cost of BTO-22 ?
   The cost varies by order size and material, but it remains a cost-effective choice for high-security needs.

5. Is BTO-22 Razor Wire suitable for residential security?
   Oo nga, it’s an excellent option for private properties, especially larger estates or those with fewer security features.
