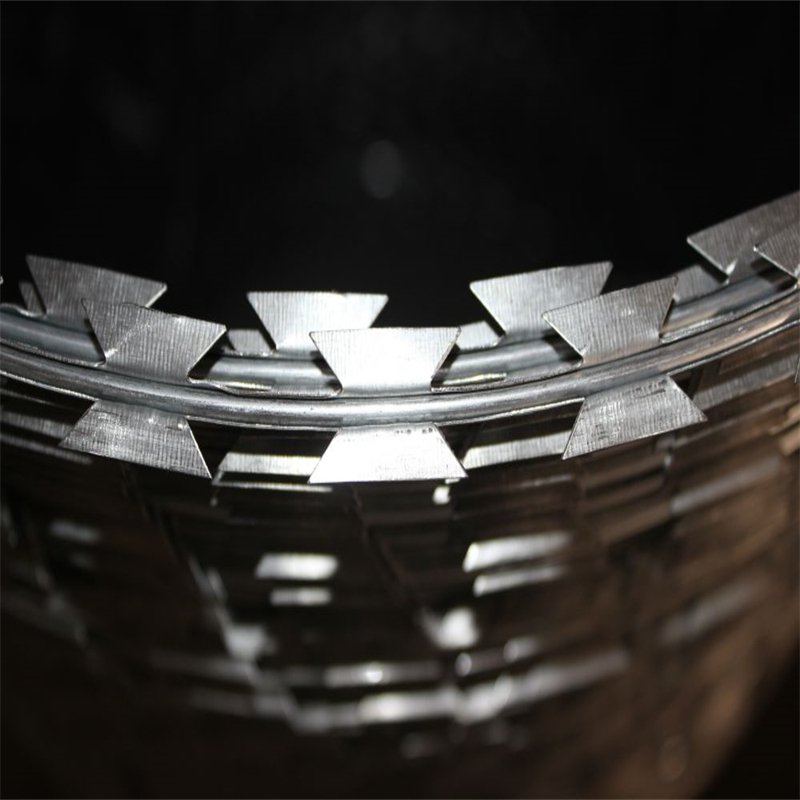

Electro-galvanized labaha wire

Electro-galvanized razor wire offers an economical alternative to hot-dip galvanized wire, providing effective security while keeping costs low. Through an electrochemical process, steel is coated with a layer of zinc, which offers some protection against corrosion. While not as robust as hot-dip galvanizing, electro-galvanized razor wire is still an excellent choice for situations where extreme corrosion resistance is not critical, or where budget constraints are a concern.

What is Electro-Galvanized Razor Wire?

Electro-galvanized razor wire is a type of security fencing material where a layer of zinc is applied to steel through an electrolytic process. During this process, steel blades and wires are exposed to an electrolyte solution and an electric current, which causes zinc ions to bond to the surface of the steel. The result is a protective zinc coating that provides some corrosion resistance.

Electro-Galvanized Razor Wire Features

• Paglaban sa kaagnasan: While electro-galvanized wire provides some level of protection against rust and corrosion, it is not as durable as hot-dip galvanizing. It works well in dry or inland environments but may not perform as well in coastal or highly humid areas.

• Uniform Plating: The electroplating process ensures a consistent, even coating of zinc across the wire. This allows for a smooth surface finish and a more aesthetic appearance compared to other methods.

• Aesthetics: The zinc coating gives electro-galvanized razor wire a bright white metallic sheen, making it ideal for applications where appearance is important.

Benefits of Electro-Galvanized Razor Wire

1. Epektibo sa Gastos: Electro-galvanized razor wire is more affordable compared to hot-dip galvanized wire, making it a budget-friendly choice for basic security needs.

2. Lower Corrosion Resistance: The zinc coating provides adequate protection against corrosion, especially in inland and dry environments. Gayunpaman, it may require more frequent inspections and maintenance in harsher conditions.

3. Uniform Coating: Electro-galvanizing creates a thin, uniform layer of zinc, which helps ensure that all parts of the wire are protected.

4. Aesthetic Appearance: Electro-galvanized wire has a smoother finish with a bright, metallic appearance, which is ideal for applications requiring a clean and polished look.

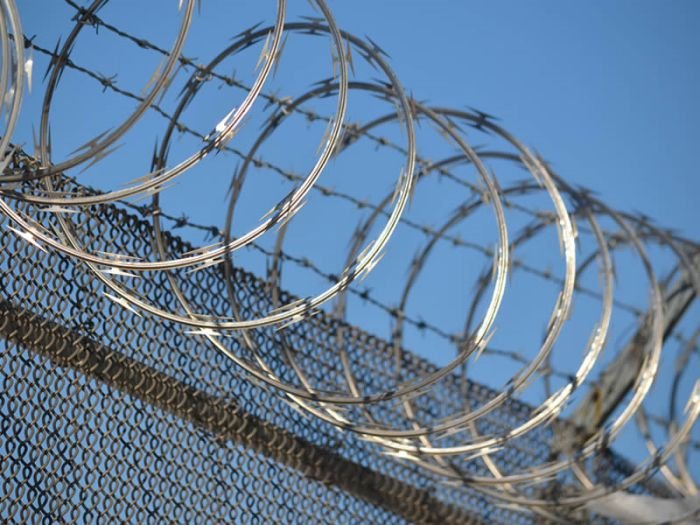

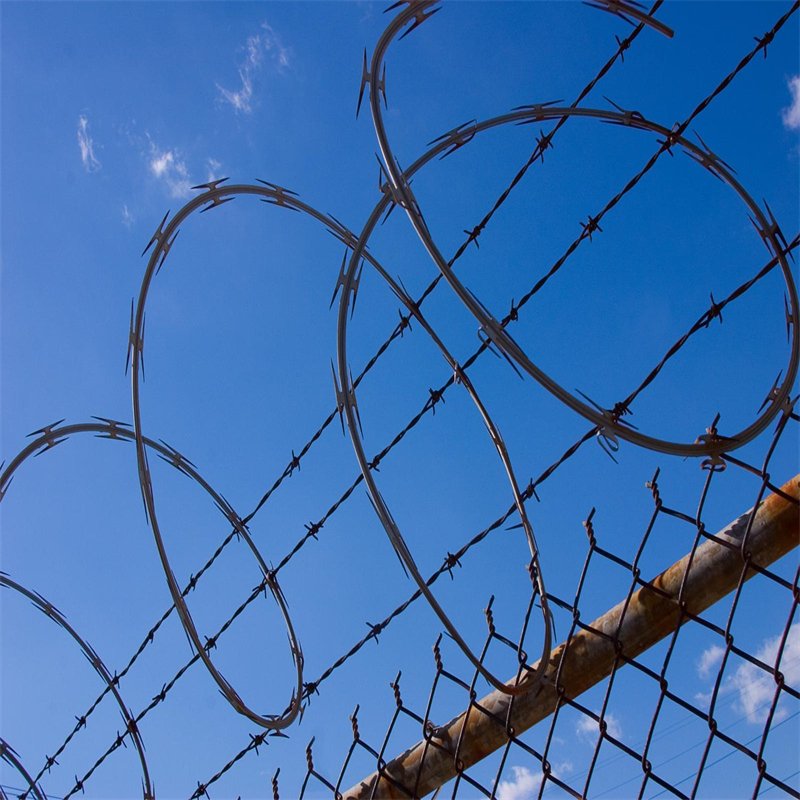

Application Scenarios

Electro-galvanized razor wire is ideal for environments where budget is limited, and extreme corrosion resistance is not a priority. It is commonly used in the following applications:

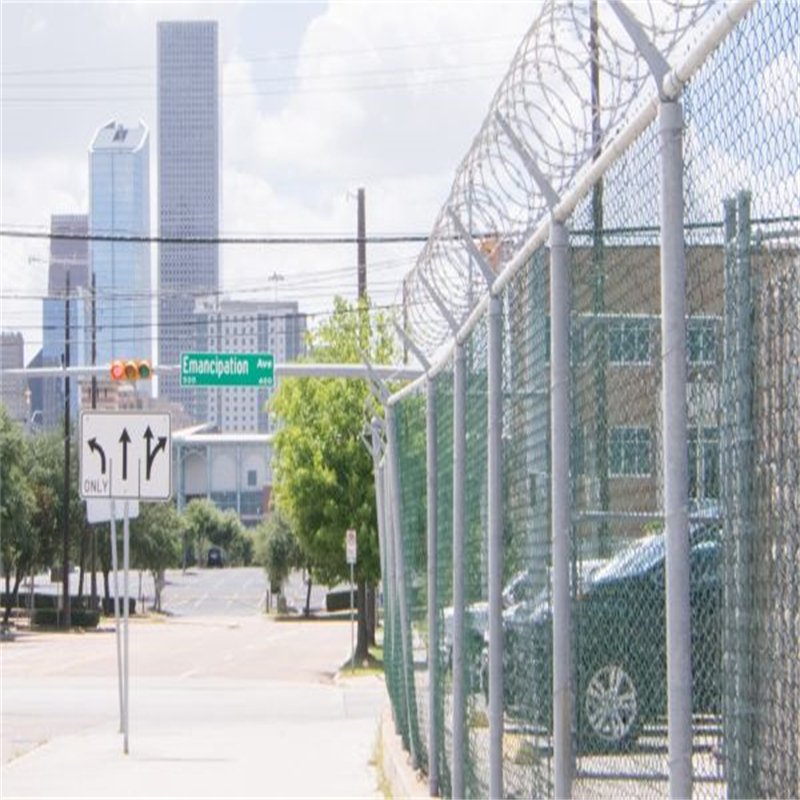

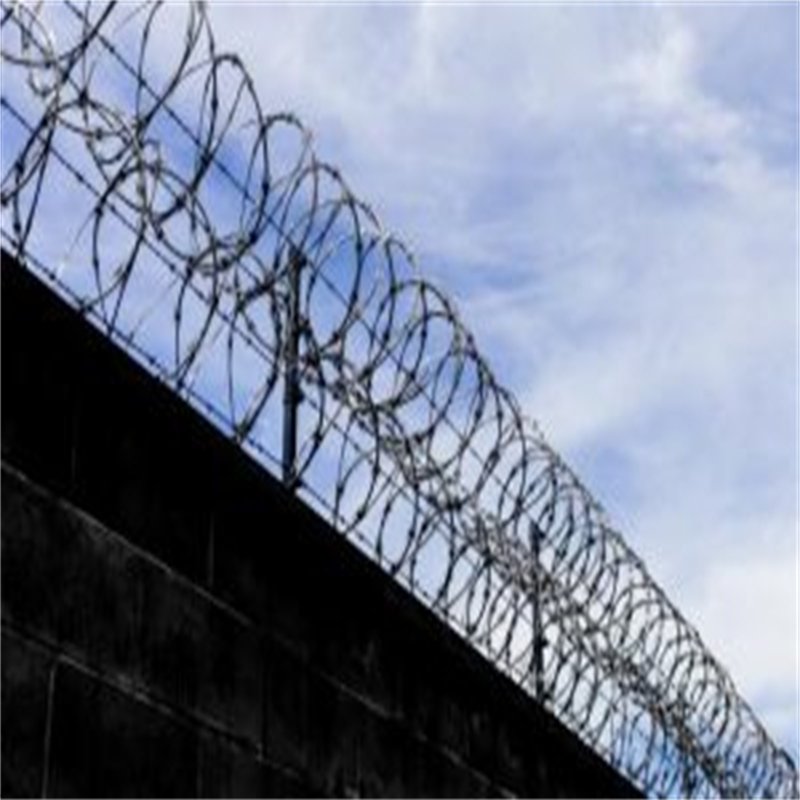

• Residential and Commercial Properties: Provides security for property boundaries, protecting against trespassing and theft.
• Agricultural Fencing: Protects farms from wildlife, with the added benefit of being cost-effective for large-scale fencing.
• Industrial Areas: Suitable for providing basic security around industrial zones where high-end security features are not critical.

Maintenance and Durability

Electro-galvanized razor wire requires relatively low maintenance, but due to the thin zinc coating, it is not as durable as hot-dip galvanizing. It may require more frequent inspection and maintenance, particularly when exposed to harsh outdoor conditions. For environments with extreme humidity, high levels of corrosive agents (like saltwater), or heavy physical impact, regular monitoring of the wire’s condition is advised.

Electro-Galvanized Razor Wire Specifications

The following table outlines some of the common specifications

Pagtutukoy	Mga Detalye
Materyal	Steel Blade with Steel Wire or Stainless Steel
Patong na patong	Electro-Galvanized Zinc
sink patong	15 g/m2
Blade Thickness	0.5mm
Lapad ng Wire	2.5mm
Coil Diameter	450mm, 600mm, 900mm, 1000mm (Various Sizes)
Coil Length	7m, 10m, 12m, 15m, 16m (Customizable)
Barb Length	10mm
Barb Width	15mm
Barb Distance	3″
Barb Spacing	25mm-35mm (depending on type)

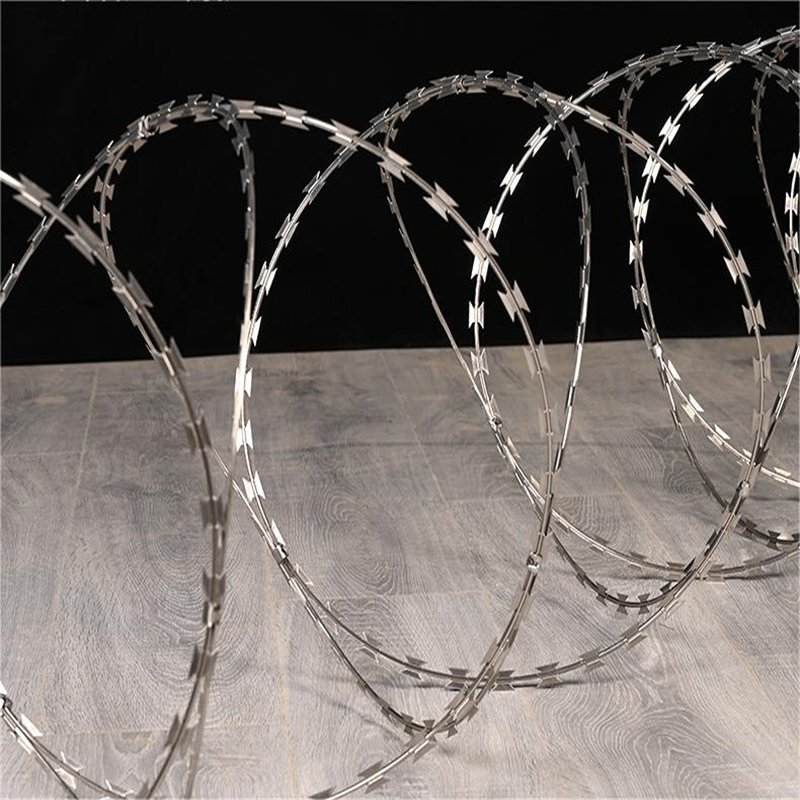

Coil Type	Single Coil, Cross Coil (Customizable)
Tapos na sa ibabaw	Bright, Makinis na, and Shiny
Kulay	Silver/Metallic Finish

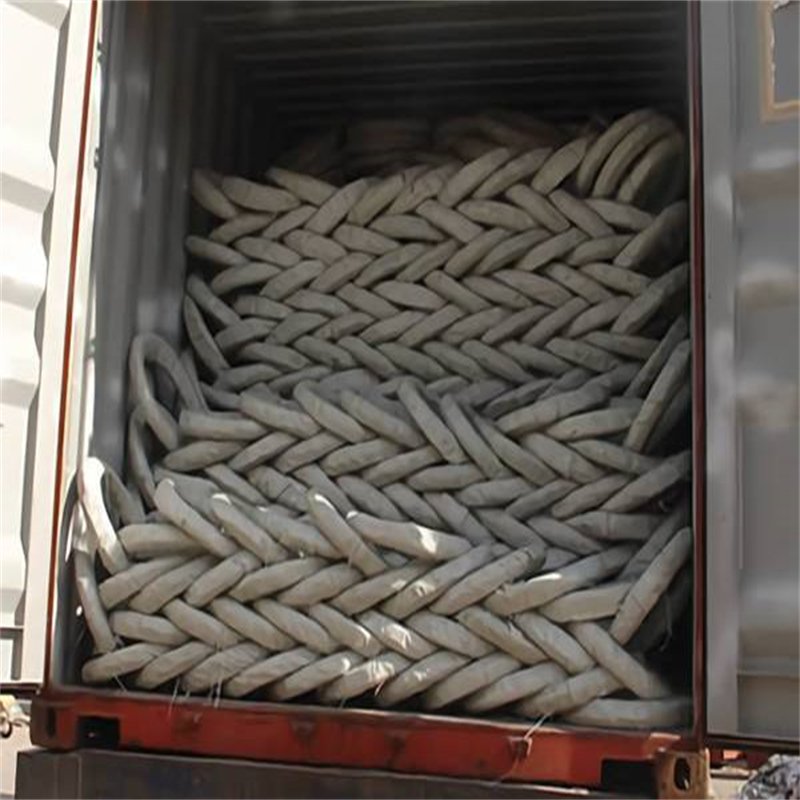

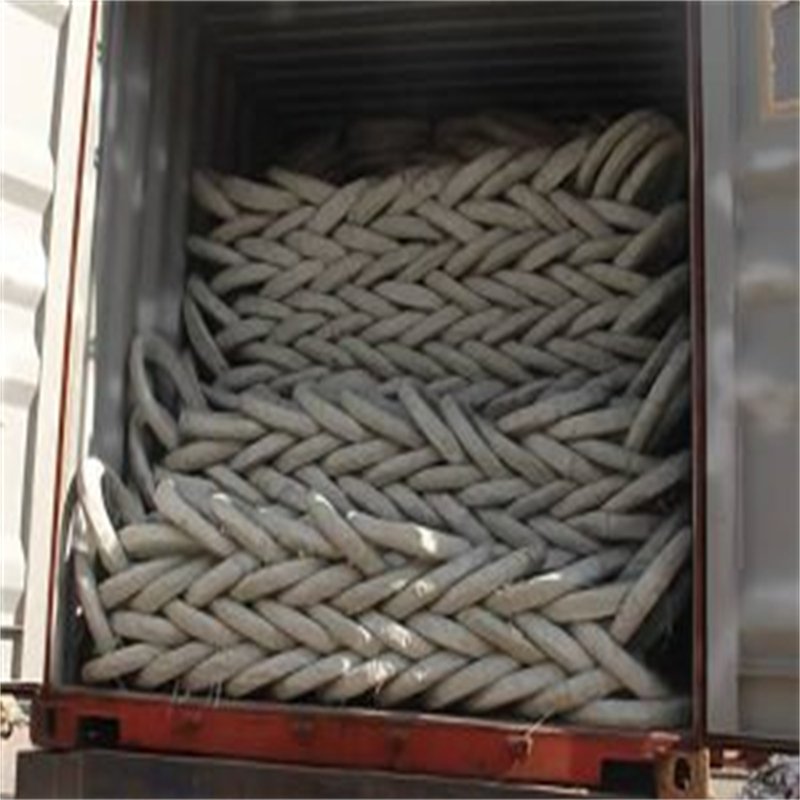

Pag-iimpake	Waterproof Paper Inside & Woven Bags
Quantity per Coil	Depends on coil size and type (hal., 33, 41, 53 loops)
HS Code	73130000
Trademark na	Customizable
Pinagmulan	Tsina
Average Delivery Time	7-14 mga araw (depending on order size)
Paggamit ng	Suitable for residential, agrikultura, at mga lugar na pang industriya
Maintenance Requirements	Low maintenance, periodic inspection suggested
Application Areas	Residential, Commercial, Agrikultura, Pang-industriya, Border Security, Military Installations
Price Category	Epektibo ang gastos, Budget-Friendly
Service Life	Medium (depends on environmental conditions)

Razor Wire Models

Modelo	Barb Length	Lapad ng Wire	Barb Distance	Coil Diameter	Coil Length	sink patong
BTO-10	10mm	2.5mm	3″	450mm, 600mm	7m, 10m, 12m	15g/m2
BTO-12	12mm	2.5mm	3″	600mm, 900mm	10m, 12m	15g/m2
BTO-18	18mm	2.5mm	3″	900mm, 1000mm	10m, 12m, 15m	15g/m2
BTO-22	22mm	2.5mm	3″	1000mm	12m, 15m, 16m	15g/m2
BTO-28	28mm	2.5mm	3″	1000mm, 1200mm	15m, 16m	15g/m2
BTO-30	30mm	2.5mm	3″	1000mm	12m, 16m	15g/m2
CBT-65	65mm	2.5mm	3″	1000mm, 1200mm	12m, 15m	15g/m2

Pangwakas na Salita

Electro-galvanized razor wire offers a cost-effective security solution, especially in environments where budgets are constrained, and corrosion resistance is less critical. While not as durable as hot-dip galvanizing, it provides adequate protection in drier or inland areas. galvanized razor wire is ideal for residential, agrikultura, at pang industriya na mga aplikasyon, where basic protection is required without the need for extreme durability.

For further inquiries or to request a quote, feel free to contact us!
