Proteksyon ng BMP Slope
Tecco High Tensile Mesh Acting is a cutting-edge product designed to tackle some of the most challenging problems in civil engineering, particularly erosion control and slope stabilization. With its remarkable tensile strength and durability, it has become the go-to solution for many large-scale projects worldwide.
Applications of Tecco High Tensile Mesh Acting
Tecco High Tensile Mesh Acting serves many purposes that require strength and long-lasting solutions:
- Pagpapatatag ng Slope: Prevent landslides by securing slopes, ensuring safety on construction sites and highways.
- Pagkontrol ng Erosion: Hold soil in place, reduce runoff, and prevent erosion in areas with heavy rainfall.
- Proteksyon sa Rockfall: Create a barrier against falling rocks, ideal for mountainous and hilly terrain.
- Green Wall Systems: Use the mesh in landscaping projects to create green walls and support plant growth.
Key Benefits of Tecco High Tensile Mesh Acting
- Exceptional Strength: With up to 1770 MPa tensile strength, it withstands extreme pressure and harsh conditions.
- Long-Lasting Durability: Galvanized or PVC-coated mesh resists corrosion, UV degradation, and weather.
- Pangangalaga sa Kapaligiran: Stabilize slopes and control erosion, protecting sensitive areas and the environment.
- Versatility: Customize for civil engineering projects, green architecture, and other applications.
- Epektibo sa Gastos: The meshâs long lifespan and low maintenance reduce repair and replacement costs.
Specifications of Tecco High Tensile Mesh Acting
| Tampok | Pagtutukoy |
|---|---|
| Materyal | High tensile steel, galvanized or PVC-coated |
| Laki ng Mesh | 50mm x 50mm (customizable) |
| Lapad ng Wire | 2.0mm to 5.0mm |
| Lakas ng Paghatak | Up to 1770 MPa |
| Uri ng patong | Galvanized na (275g/m2) o pinahiran ng PVC |
| kapal ng patong | 0.6mm to 1.0mm |
| Mesh Type | Woven or welded mesh |
| Edge Treatment | Reinforced edges |
| Haba ng Roll | 30m to 50m (customizable) |
| Lapad ng Roll | 1m to 5m (customizable) |
| Timbang | Varies (typically 4-8 kg per meter) |
Mga Accessoires

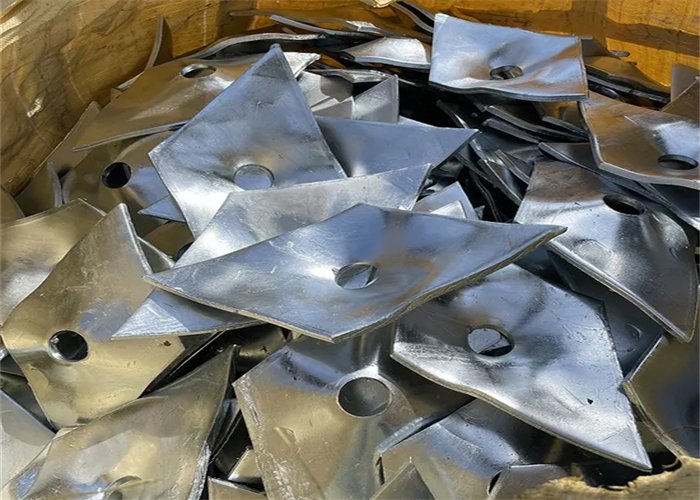

1. TECCO Spike Plates
TECCO spike plates are rigid and reinforced with ribbing to ensure strong load transfer from soil or rock anchors to the TECCO mesh. Place these plates over the anchor heads and tighten them to pre-tension the mesh onto the slope. The plates come galvanized and measure 330mm x 190mm x 10mm (13.0″ x 7.5″ x 0.4″).
2. TECCO Connection Clips
TECCO connection clips use high-strength steel wire to join mesh sections without overlapping. These clips ensure complete force transfer between sections. They feature hot-dip galvanization and consist of 6mm thick steel spirals.

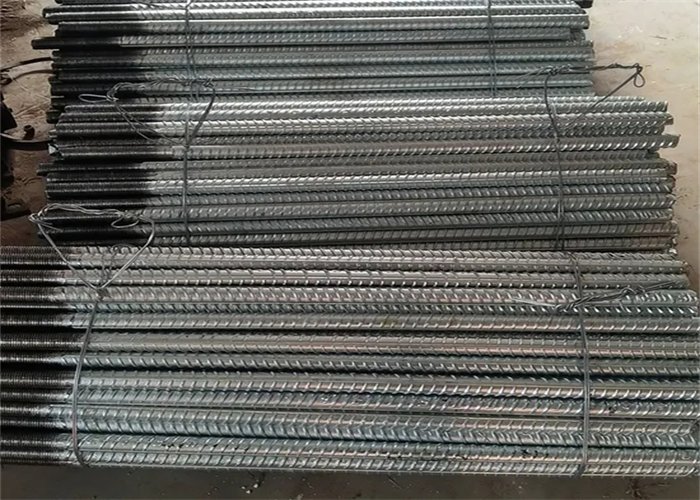

3. Lupa o kuko sa bato
Anchor TECCO mesh using commercial soil or rock nails, which adapt to local soil and rock conditions. Install the main anchors in a grid pattern with horizontal and vertical spacings ranging from 2.0 to 5.0m (6.6 sa 16.4 ft), depending on site analysis and modeling. Use steel bars ranging from 25mm to 32mm (1.0″ to 1.25″) in diameter for the anchors. Self-drilling grout injection anchors are also acceptable. Add extra anchors at boundaries or low points for additional support.
Production Process of Tecco High Tensile Mesh Acting
- Pagpili ng Materyal: Engineers choose high-quality steel for its superior tensile strength and durability.
- Mesh Production: Workers weave or weld steel wires into a uniform mesh pattern, ensuring maximum strength and support.
- Coating Process: The mesh receives a coating of either galvanized zinc or PVC, providing resistance to corrosion and UV damage, which extends its service life.
- Quality Control: Experts conduct stringent quality control to ensure the mesh meets international standards for tensile strength and corrosion resistance.
Packing and Shipping
Tecco High Tensile Mesh Acting gets packaged carefully to prevent damage during transit. The mesh typically rolls for easy handling, and workers wrap it to shield it from environmental factors. We can also arrange custom packaging based on the clientâs specific needs.
- Roll Packing: Pack the mesh compactly for efficient transportation.
- Protective Wrapping: Wrap the mesh to prevent damage during shipment.
- Custom Packaging: Provide packaging tailored to fit unique project requirements.
Why Choose Tecco High Tensile Mesh Acting?
Tecco High Tensile Mesh Acting offers a solution to some of the toughest challenges in civil engineering. Whether you need slope stabilization, pagguho ng lupa control, or rockfall protection, this mesh proves to be the ideal choice. Its high strength, mahabang buhay, and environmental benefits make it an essential tool for engineers and contractors.
By choosing Tecco High Tensile Mesh Acting, you ensure that your projects stay protected against natural forces while maintaining a high level of safety and durability. The versatility of the mesh allows for use in various projects, from protecting construction sites in hilly areas to creating sustainable green walls for landscaping.
Pangwakas na Salita
Tecco High Tensile Mesh Acting is the ultimate solution for challenging environments, offering superior strength, tibay ng katawan, and environmental protection. With its wide range of applications and benefits, itâs the go-to choice for slope stabilization, pagguho ng lupa control, proteksyon sa pagbagsak ng bato, at marami pang iba. If you are working on a project that requires high strength and longevity.
