Tecco Mesh G80 / 2

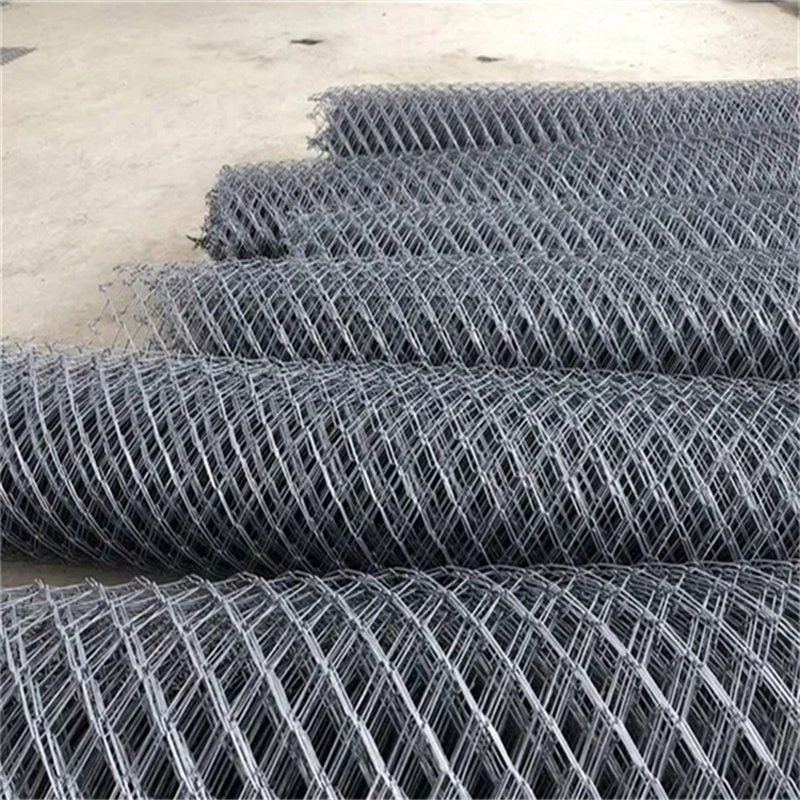

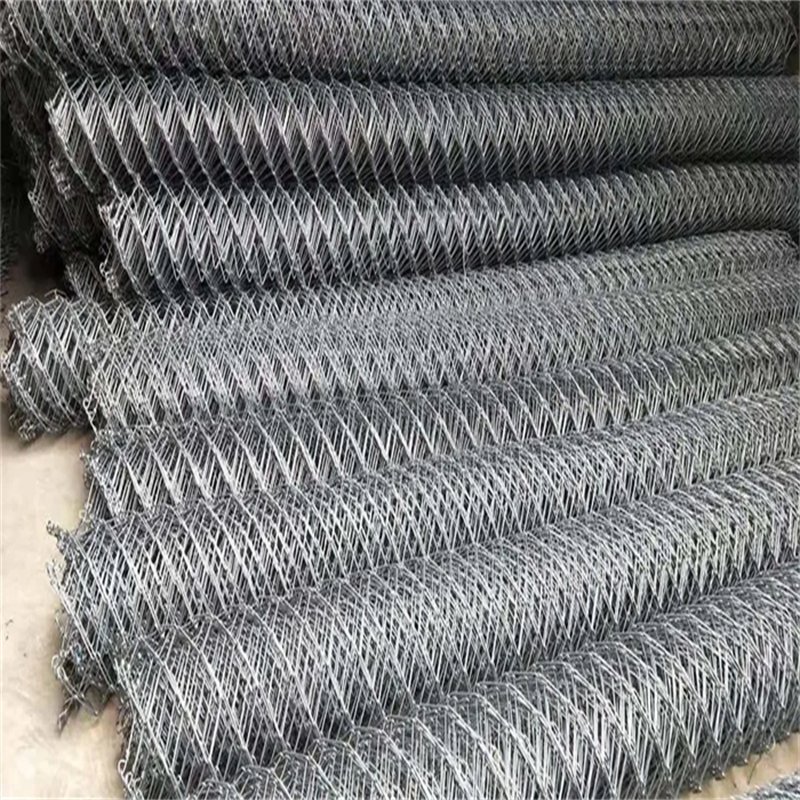

BMP Tecco Mesh G80/2 is a high-tensile, rhomboid (diamond) steel wire mesh that pairs 2.0 mm wire with an ≈ 80 mm inscribed opening. As the lightest 80-mm-aperture option in the BMP tecco family, it offers fast handling, excellent drainage, and an open visual profile—while maintaining reliable surface control on weathered rock and soil/rock interfaces. The knotted ends ensure efficient load transfer to edges and seams. G80/2 integrates with anchors, spike plates, boundary and sewing (lacing) ropes, and connection clips as a complete, systemized facing.

2) Key advantages Tecco Mesh G80/2

Lightest 80-mm variant for rapid installation and easier manual handling
Open aperture (~80 mm) for superior drainage, vegetation growth, and lower visual mass
High-tensile wire (≥ 1770 N / mm²) for low elongation and dependable capacity paths
Knotted edges for strong, tidy terminations and reliable seam behavior
Durable metallic coatings (Zn–Al or HDG) for long service life in harsh climates
System-ready with standard anchors, spike plates, and lacing components

3) Technical specifications (G80/2)

Item	Pagtutukoy
Modelo	G80/2
Lapad ng wire	2.0 mm (high-tensile steel)
Wire makunat na lakas	≥ 1770 N / mm²
Opening reference	≈ 80 mm (inscribed circle of the diamond)
Tipikal na mga diagonal ng brilyante	~ 102 × 177 mm (± ilang %)

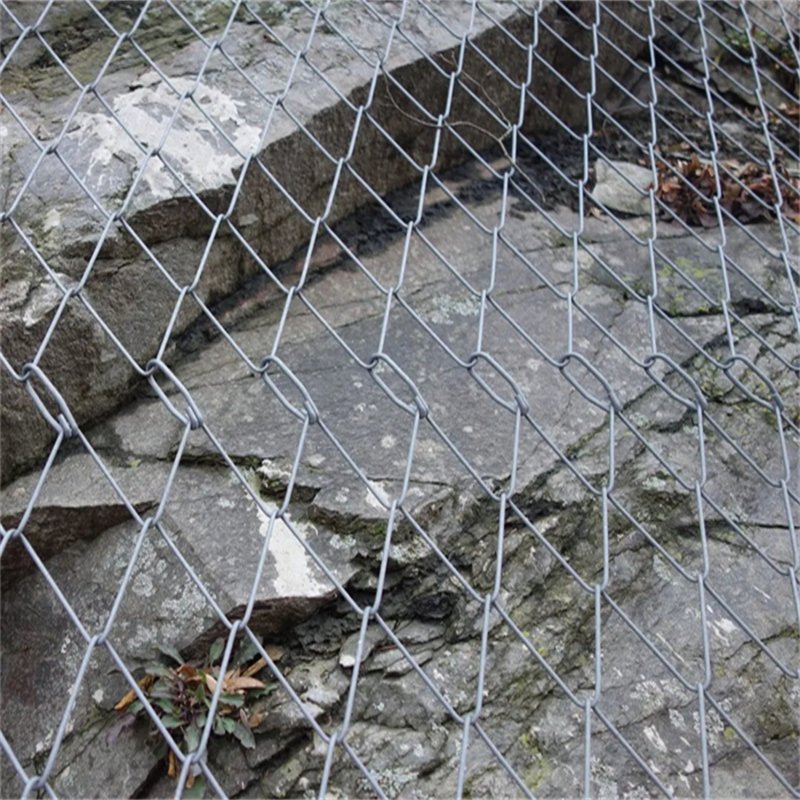

Mesh geometry	Rhomboid / brilyante, knotted ends
Mesh makunat na klase ng kapasidad	≈ 150 kN/m (typical for 2.0 mm high-tensile tecco meshes*)
Mga pagpipilian sa patong	Zn-Al (Galfan) o hot-dip galvanized (HDG); tipikal na patong mass ≥ 150 g/m2; heavier classes on request

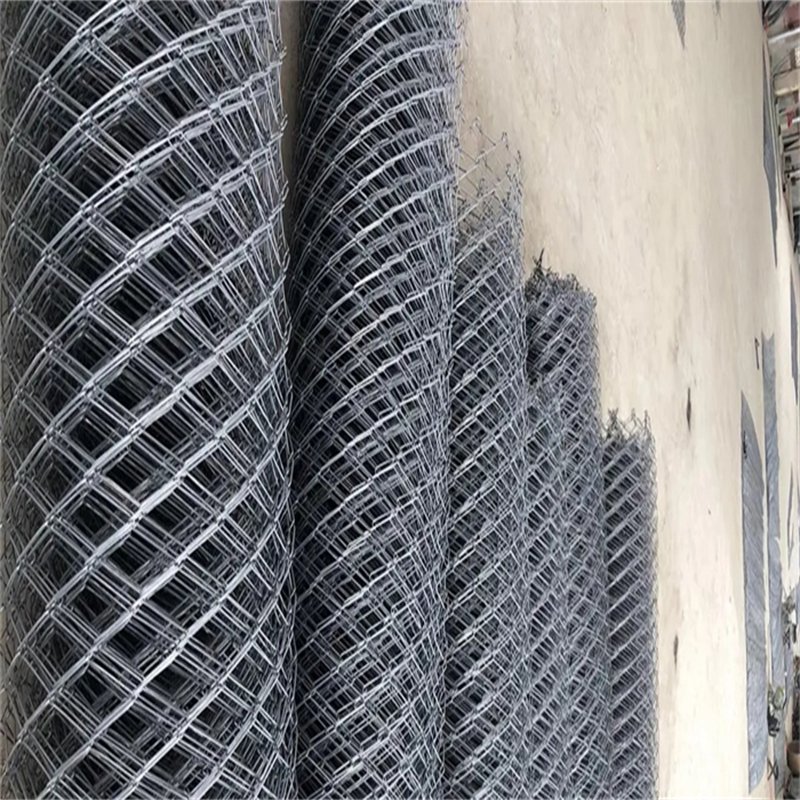

Lapad ng roll (tipikal)	3.5 m
Roll length (tipikal)	10 m / 20 m / 30 m

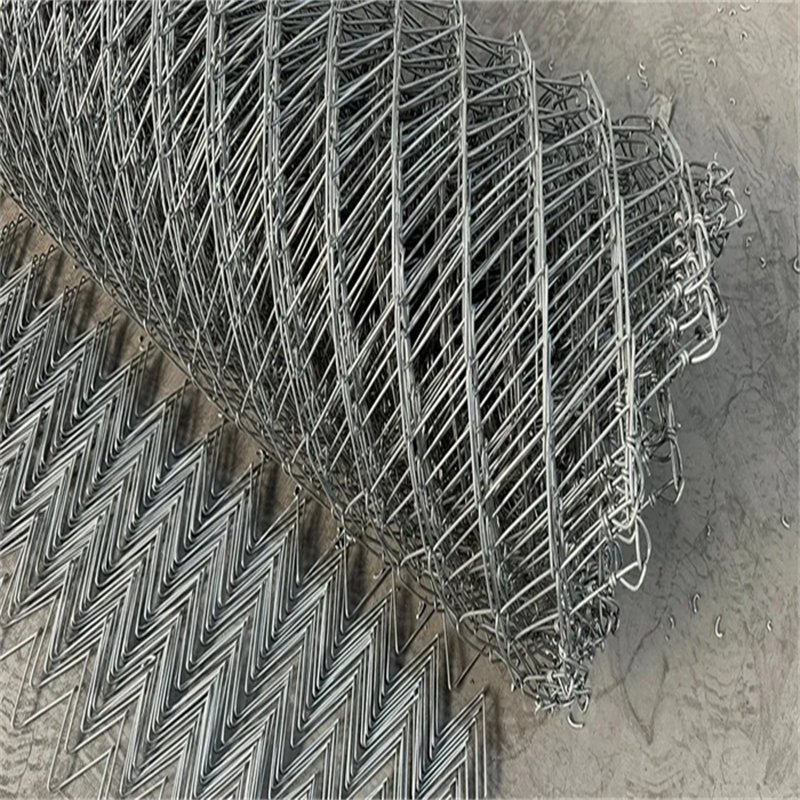

Edge finish	Knotted ends; prepared for lacing/sewing
System compatibility	Spike plates, anchors/bolts, boundary rope, sewing (lacing) rope, connection clips

*Exact rated tensile (kN/m), puncture/shear resistances, and unit mass depend on wire tolerances, diamond geometry, and coating class. Certified values are provided on the project-specific datasheet.

4) Where G80/2 fits in the family Tecco Mesh G80/2

Versus G65/2: larger aperture for more drainage and an even lighter “feel” per square meter.
Versus G80/3 / G80/4 / G80/4.6: same 80 mm openness, but lighter wire; choose heavier wires when higher mechanical reserves are required.
Versus G45/2: significantly more open and faster to install; pick G45/2 where very tight face control is needed.

5) Typical applications Tecco Mesh G80/2

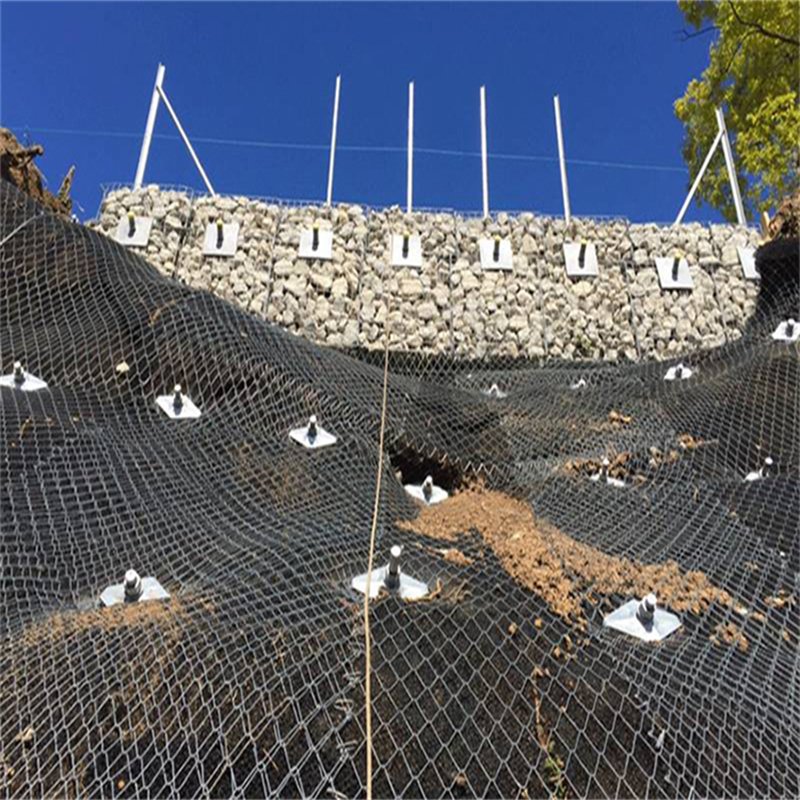

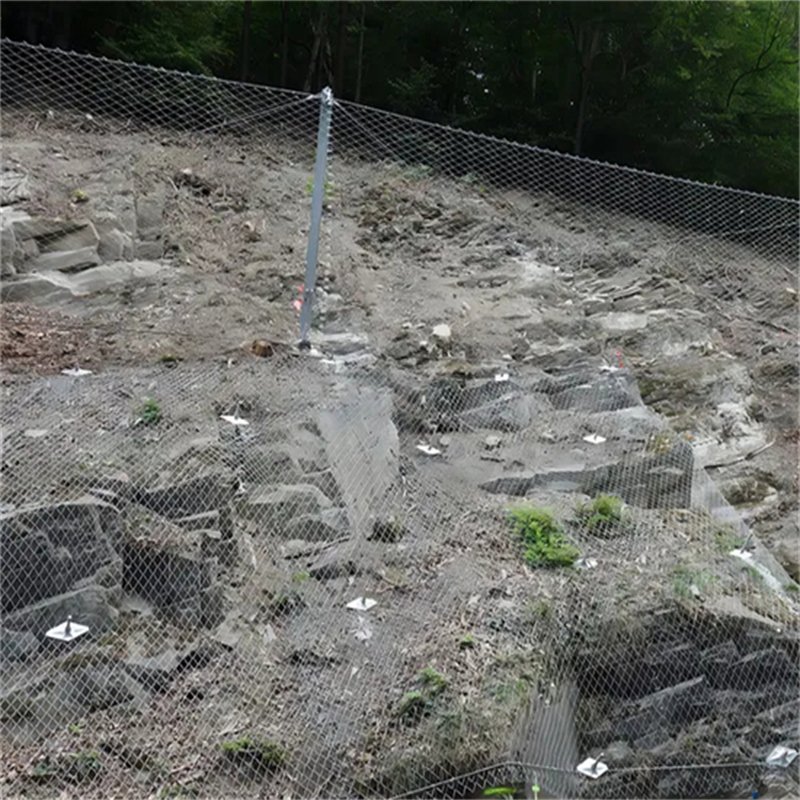

Active slope stabilization on rock cuts and embankments

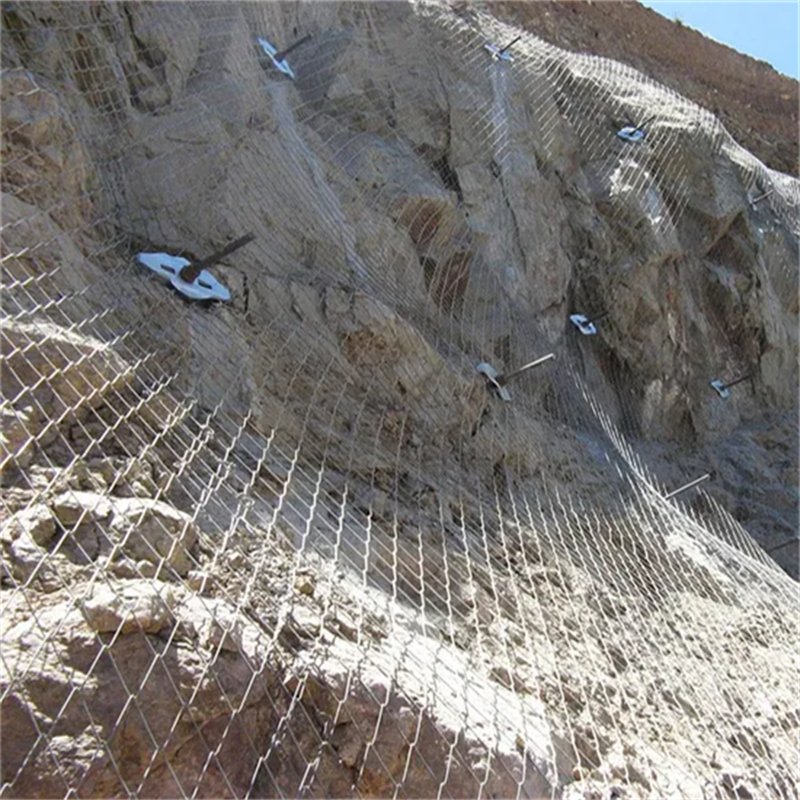

Rockfall mitigation where large aperture aids drainage and vegetation
Soil-nail / rock-bolt facings that benefit from a lightweight, open mesh
Aesthetic/vegetated slopes requiring unobtrusive appearance and fast installation

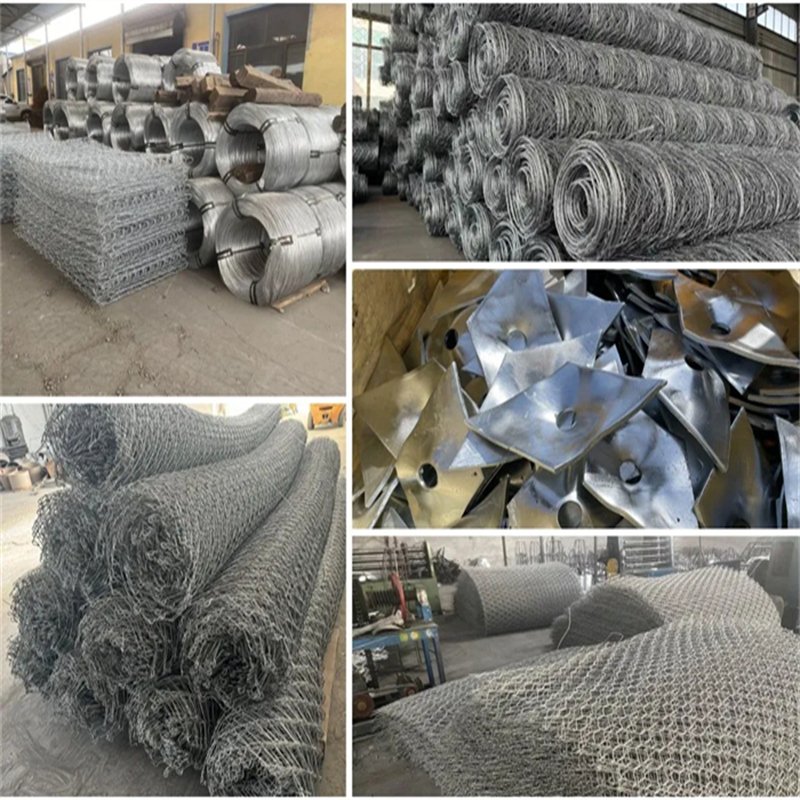

6) System components (select as needed)

Component	Function

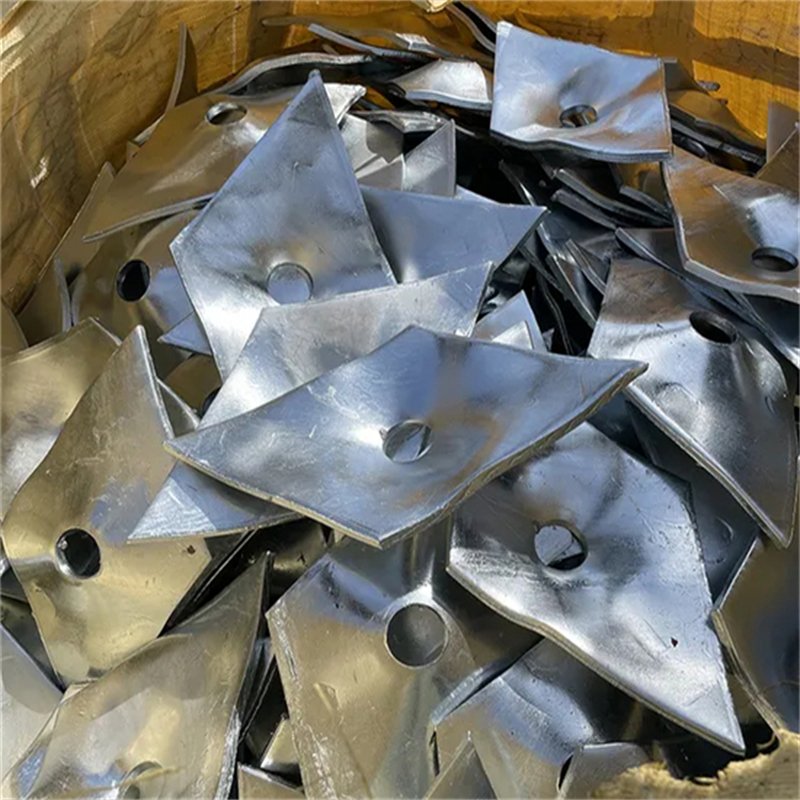

Spike plates	Distribute anchor load efficiently into the mesh

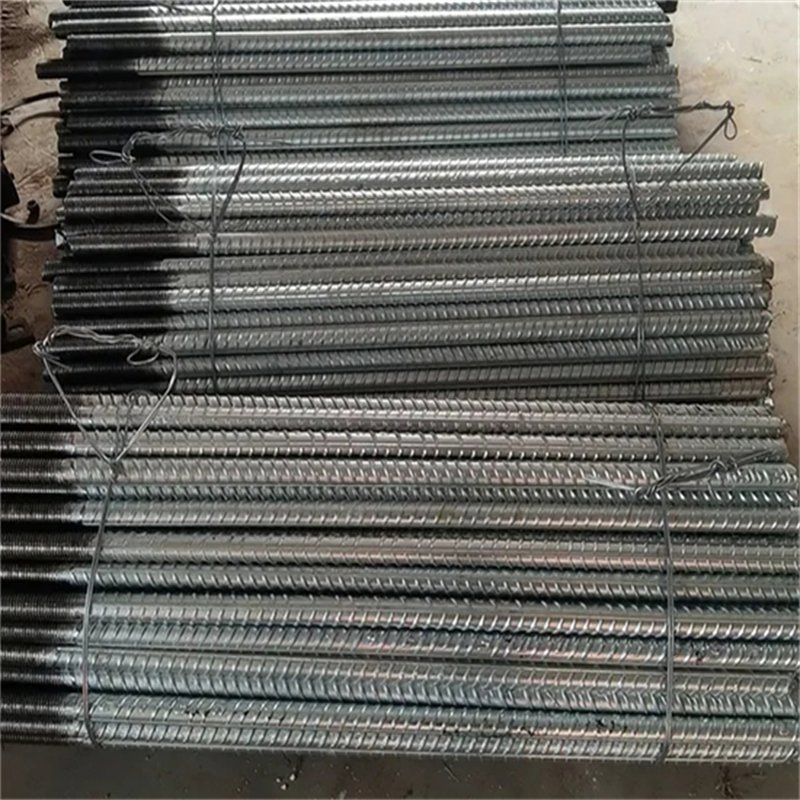

Anchors / mga bolts	Primary connection to competent ground (self-drilling or bar anchors)
Boundary rope	Secures perimeters, transitions, and terminations
Sewing (lacing) rope	Joins adjacent panels; maintains continuity and load paths
Connection clips/clamps	Rapid local connections at specified points

7) Installation summary (good practice)

Survey & design the anchor grid, panel layout, edge treatment, and seam/lacing plan.

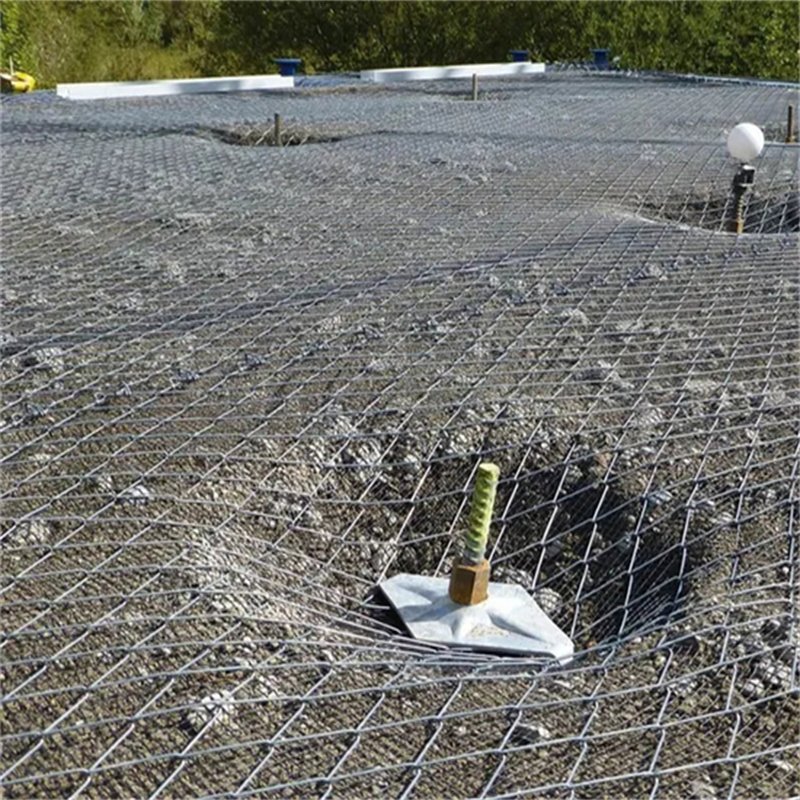

Drill & set anchors; verify embedment; fit spike plates and nuts; pretension to specification.
Place panels; align diamonds with load paths; secure edges using boundary rope.
Sew/lace panels along the full seam at the specified pitch; maintain uniform tension; add clips where required.
Pretension & inspect: final torque check; verify contact, overlaps/terminations, and overall continuity.

8) Disenyo & selection guidance Tecco Mesh G80/2

Choose G80/2 when the project prioritizes speed, drainage, and low visual mass with an 80 mm aperture, and when 2.0 mm wire capacity is sufficient.
For higher design loads or dynamic energy levels, consider G80/3, G80/4, or G80/4.6.
Detail all edges and seams with boundary rope and lacing to maintain clean load paths.
Specify the coating class/mass according to the site’s corrosivity category.

9) Quality & documentation Tecco Mesh G80/2

Manufactured from high-tensile steel wire with controlled tolerances.
Batch test certificates available (wire strength, coating class/mass; unit mass on request).
Typical submittals include: panel schedule, anchor layout, spike plate details, lacing method, and inspection/acceptance criteria.

10) Ordering checklist (G80/2)

Modelo: BMP Tecco Mesh G80/2
Wire & patong na patong: 2.0 mm; specify Galfan or HDG and coating mass/class
Geometry: ≈ 80 mm inscribed opening; request diamond diagonals on the quote
Rolls: 3.5 m width × 10/20/30 m length (confirm availability)
Mga accessory: spike plates, anchors/bolts, boundary rope, sewing rope, connection clips
Dokumentasyon: request project-specific datasheet (rated tensile/puncture/shear, unit mass) and coating certificates

Conclusion Tecco Mesh G80/2

BMP Tecco Mesh G80/2 delivers lightweight, fast-install performance with the openness of an 80 mm aperture and the reliability of high-tensile 2.0 mm wire. Knotted edges, robust metallic coatings, and a fully compatible accessory set create a system-ready facing that provides dependable surface control, excellent drainage, and long service life—ideal for modern slope stabilization and rockfall protection where speed and efficiency matter.
