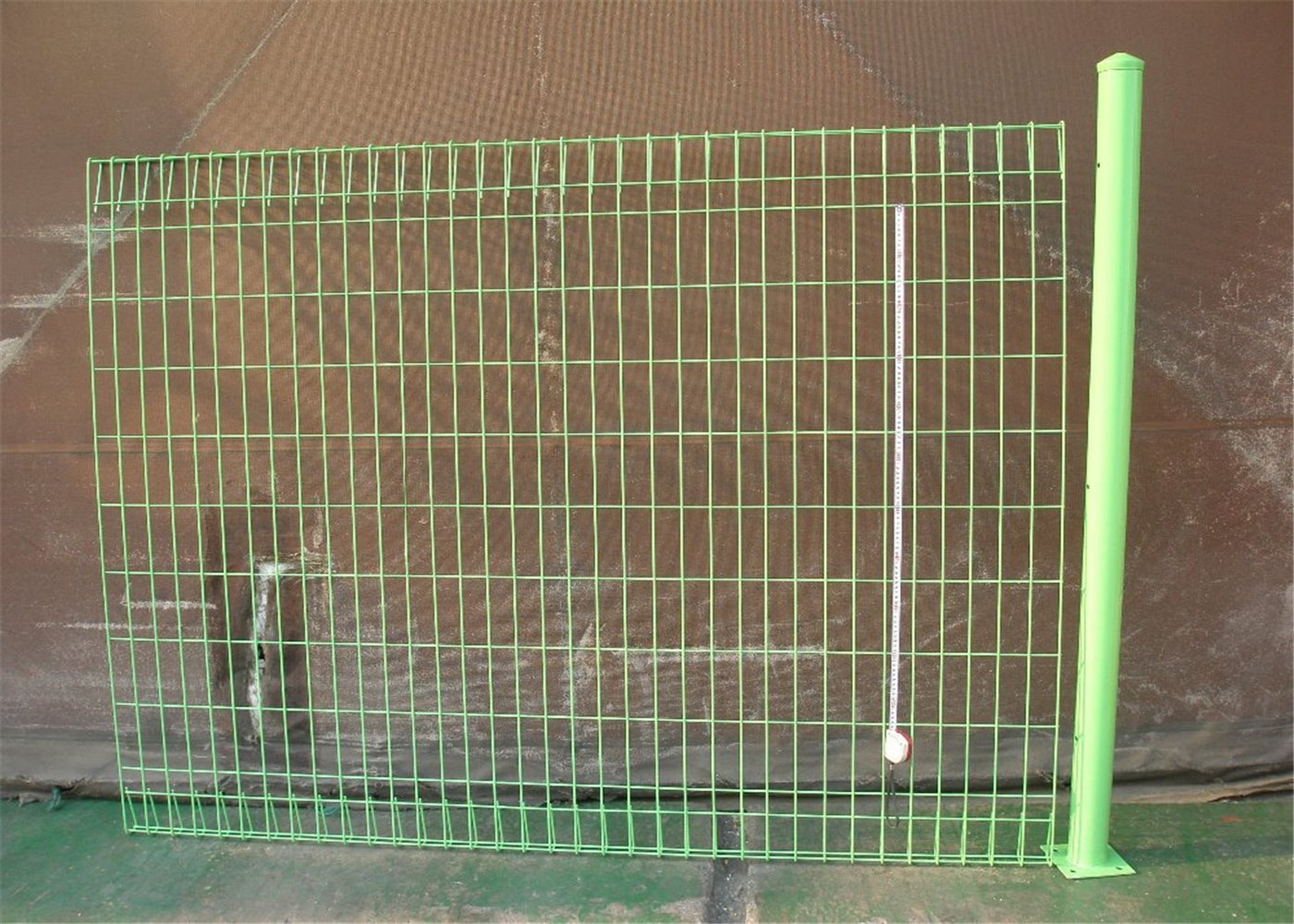

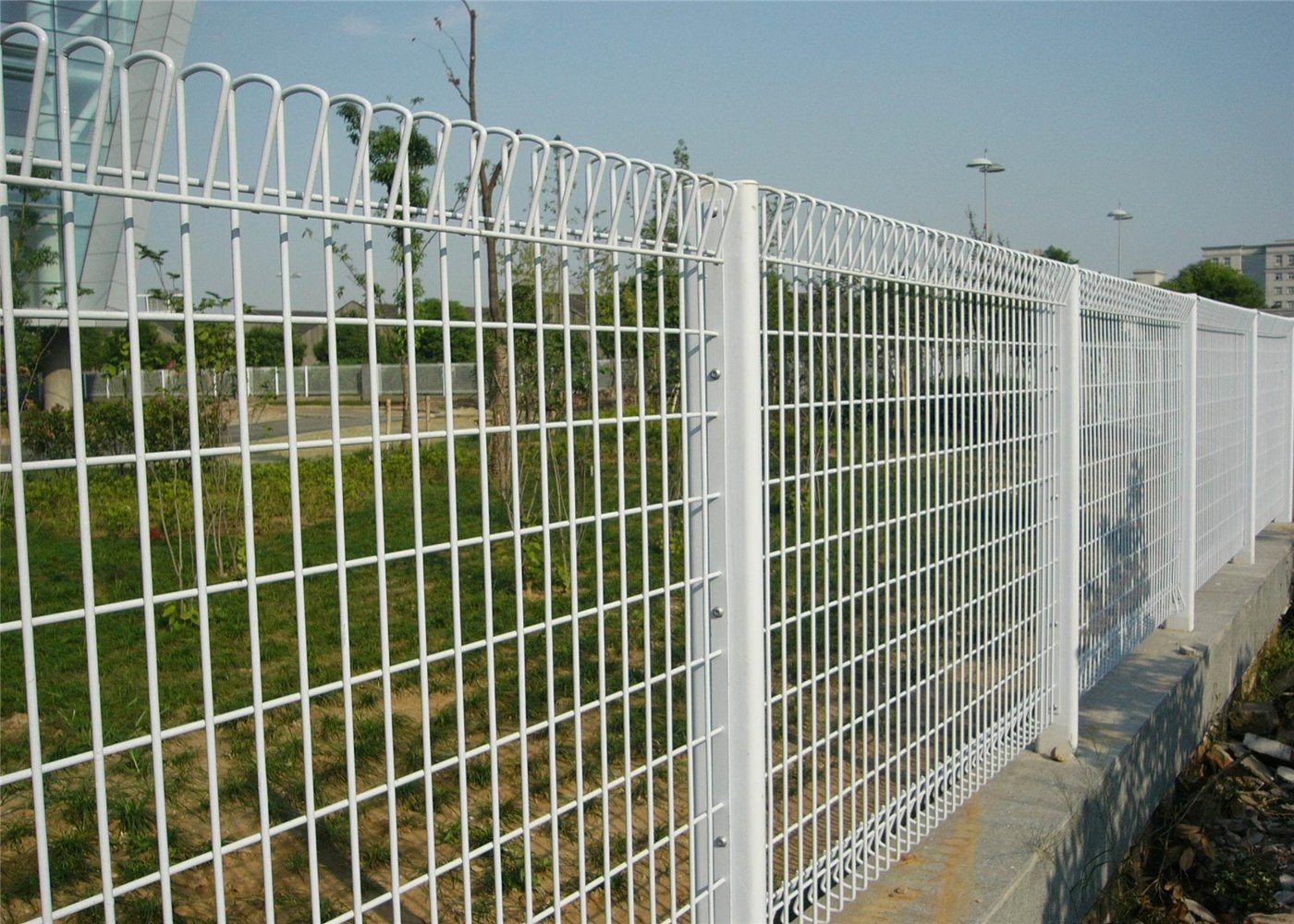

BRC fence, commonly known as Roll Top Fence, is a versatile and durable fencing solution widely used for both public and private properties. The Roll Top fence features unique rolled edges at the top and bottom of the mesh, making it both safer and more rigid. This system is particularly popular in parks, schools, playgrounds, and pedestrian zones. It offers excellent visibility while also ensuring security and durability.
This article will cover everything you need to know about BRC fences, including its key features, specifications, installation methods, and popular applications.
Key Features of BRC Fence

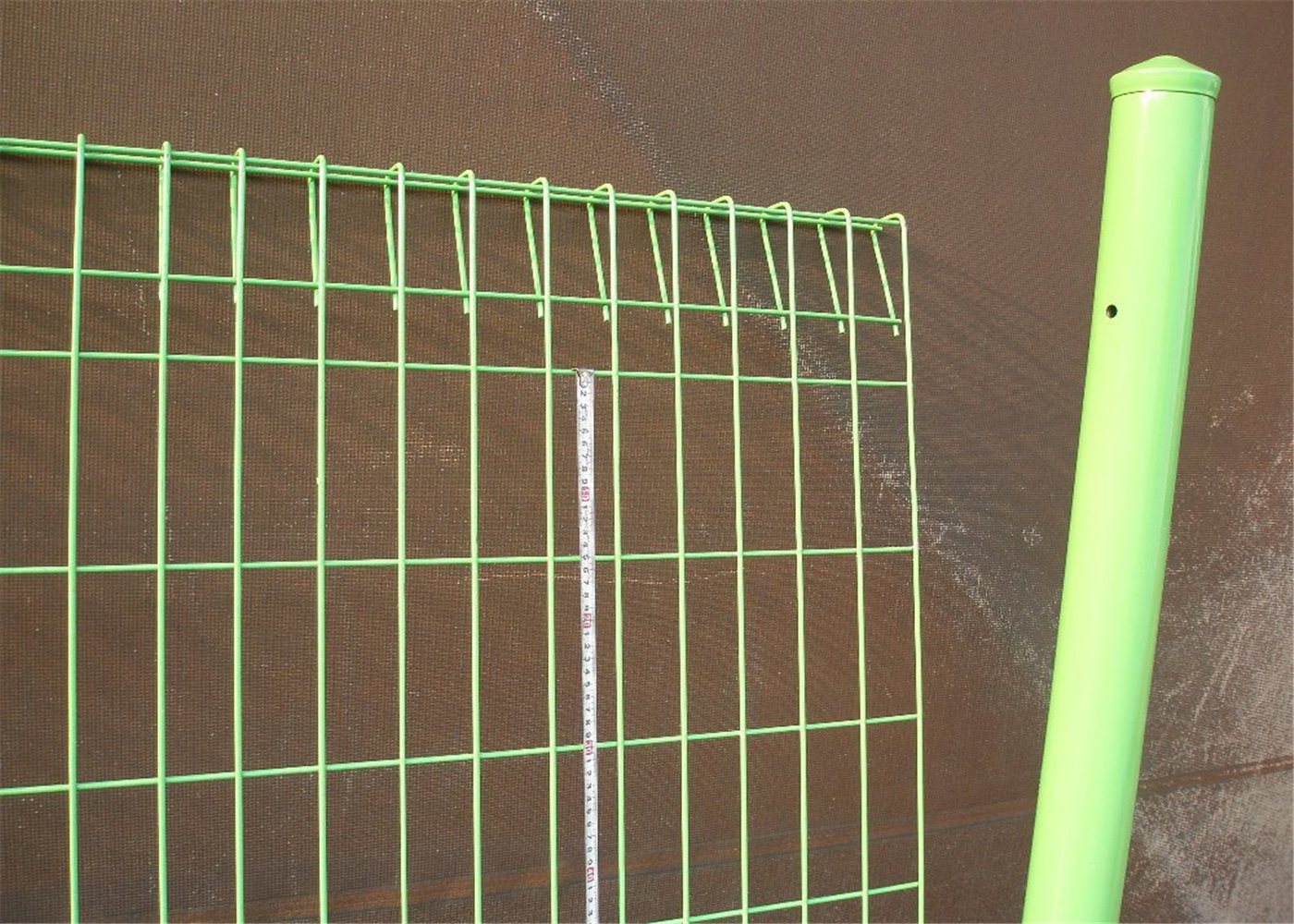

- Durable Design: BRC fences are designed with a rolled beam profile at the top and bottom edges, which significantly enhances their strength and stability.
- User-Friendly Surface: The rolled top and bottom edges create a smooth surface, eliminating sharp or raw edges, making it safer for installation and use.
- Visibility: As an open mesh system, BRC fences provide excellent visibility, making them ideal for residential, commercial, and recreational areas.
- Corrosion Resistance: With either a hot-dipped galvanized or PVC-coated finish, these fences can withstand harsh weather conditions and offer long-lasting protection against corrosion.
- Versatile Applications: BRC fences are ideal for parks, schools, playgrounds, residential areas, and any site requiring both security and visibility.
BRC Fence Specifications
Below is a comprehensive table outlining the key specifications for BRC fence:
| Specification | Option 1 | Option 2 | Option 3 | Option 4 | Option 5 |
|---|---|---|---|---|---|

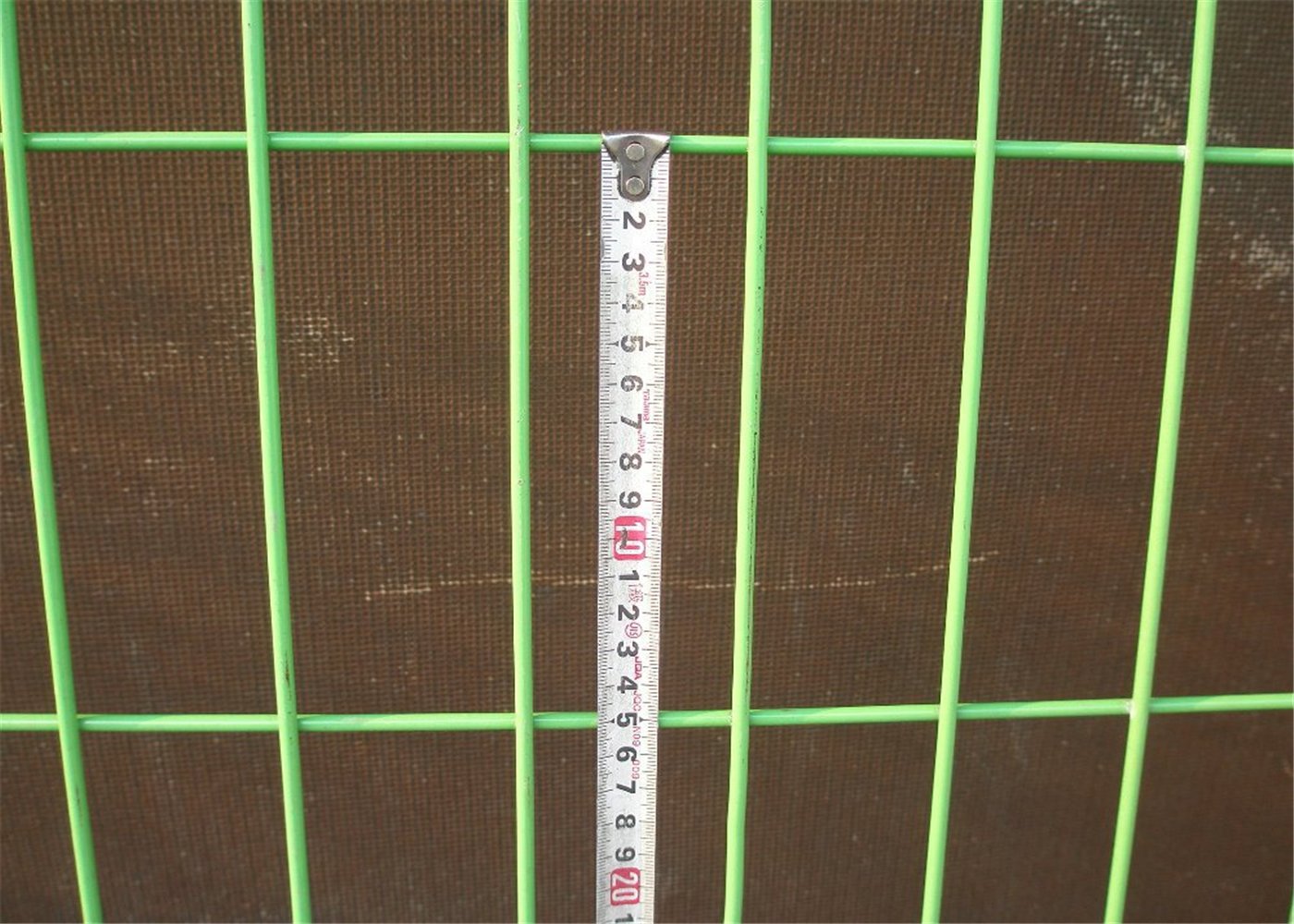

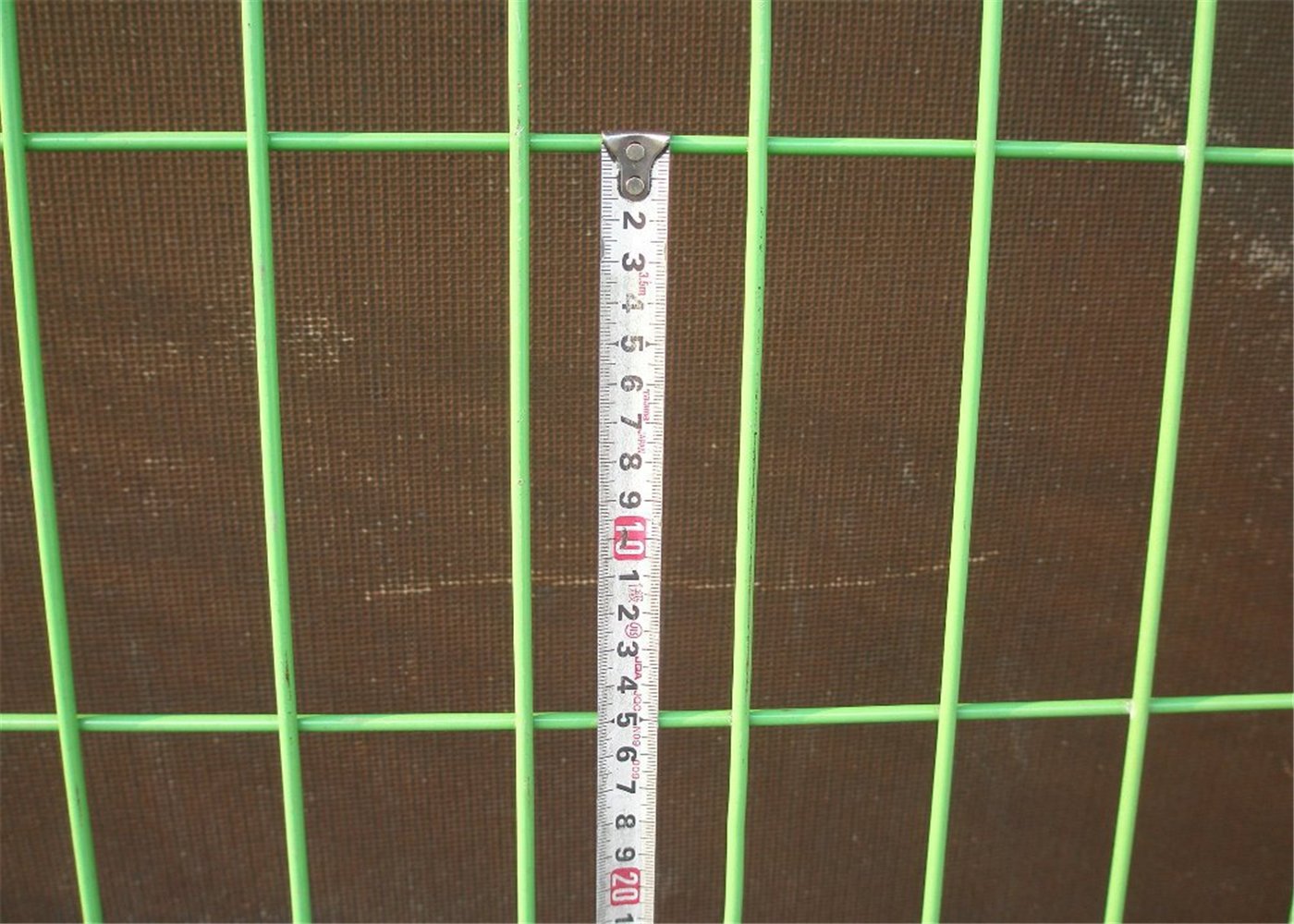

| Mesh Size (mm) | 250*50 | 200*50 | 150*75 | 150*50 | 100*50 |
| Wire Diameter (mm) | 5 | 3 | 4 | 3.5 | 4.5 |
| Square Post Size (mm) | 60x60x1.5 | 60x60x2.5 | 48x48x2.5 | 60x60x2.0 | 48x48x2.0 |
| Width (m) | 1.2, 1.5, 1.8, 2.1, 2.4 | 1.2, 1.5, 1.8, 2.1, 2.4 | 1.2, 1.5, 1.8, 2.1, 2.4 | 1.2, 1.5, 1.8, 2.1, 2.4 | 1.2, 1.5, 1.8, 2.1, 2.4 |
| Length (m) | 2.4/3.0 | 2.4/3.0 | 2.4/3.0 | 2.4/3.0 | 2.4/3.0 |
| Post Size (Round Profile) | 48mm, 60mm | 48mm, 60mm | 48mm, 60mm | 48mm, 60mm | 48mm, 60mm |
| Post Thickness (mm) | 1.5, 2.0, 2.5 | 1.5, 2.0, 2.5 | 1.5, 2.0, 2.5 | 1.5, 2.0, 2.5 | 1.5, 2.0, 2.5 |
| Surface Treatment | Hot-Dip Galvanized or PVC Coating | Hot-Dip Galvanized or PVC Coating | Hot-Dip Galvanized or PVC Coating | Hot-Dip Galvanized or PVC Coating | Hot-Dip Galvanized or PVC Coating |
| Height (mm) | 900, 1200, 1500, 1800, 2100, 2400 | 900, 1200, 1500, 1800, 2100, 2400 | 900, 1200, 1500, 1800, 2100, 2400 | 900, 1200, 1500, 1800, 2100, 2400 | 900, 1200, 1500, 1800, 2100, 2400 |
| Accessories | U-Clip, M6 Bolt & Nut | U-Clip, M6 Bolt & Nut | U-Clip, M6 Bolt & Nut | U-Clip, M6 Bolt & Nut | U-Clip, M6 Bolt & Nut |
Surface Treatments for BRC Fence
- Hot-Dip Galvanized: After welding, the fence undergoes a hot-dip galvanization process, which forms a protective layer on the steel. This layer effectively prevents oxidation and corrosion, enhancing the fence’s lifespan.
- PVC Coating: After the fence is galvanized, a layer of PVC is applied to the surface, providing an additional barrier against rust and improving its aesthetic appeal. PVC-coated fences are also more resistant to weather elements.
- Powder Coating: Like PVC coating, powder coating also provides a protective finish that is both durable and aesthetically pleasing. It is available in a variety of colors, allowing for customization based on your needs.
Installation Methods of BRC Fence
BRC fences are easy to install, and their installation methods offer flexibility:
- Embedded Post: Install the posts directly into the ground or concrete for stability and support.
- Bolted Post: Bolt the posts to a concrete foundation using post plates to ensure added strength.
Installation Accessories:
- U-Clips and Bolts: Use U-clips to securely attach the mesh to the posts. Bolts add extra security and make installation easier.

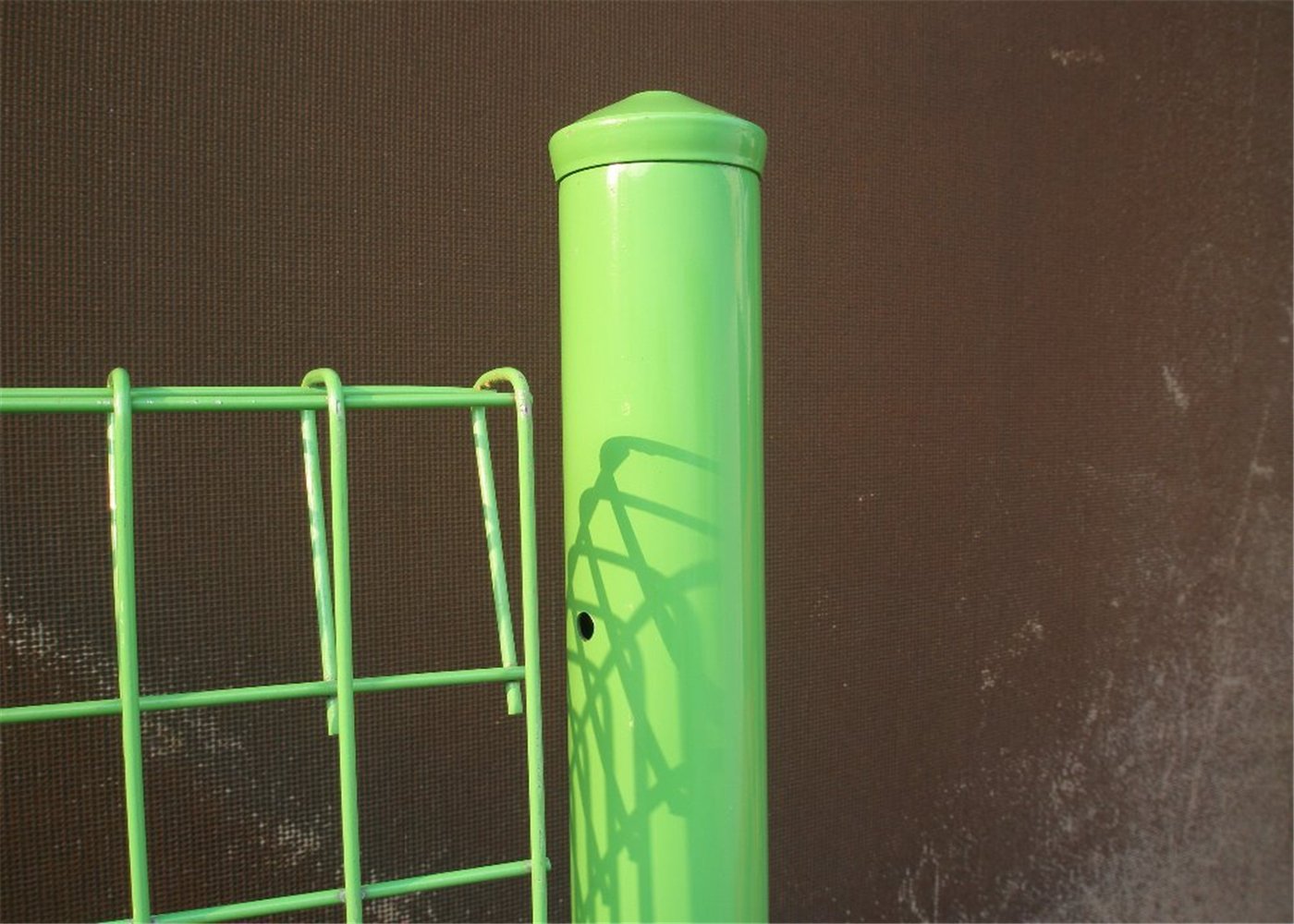

- Rainproof Cap: Place a rainproof cap on top of the posts to prevent water from entering and causing rust or corrosion.
- Post Plates: Weld post plates to the posts to enhance their durability and strength.
Applications of BRC Fence
BRC fences are versatile and can serve various purposes in different settings:
- Residential Areas: Use BRC fences to secure residential properties while maintaining an attractive appearance.
- Commercial and Industrial Areas: Install BRC fences to protect commercial properties, factories, and warehouses.
- Parks and Recreation Areas: BRC fences are ideal for parks, gardens, and playgrounds, offering a secure barrier with excellent visibility.
- Schools and Universities: BRC fences provide a secure option for educational facilities, ensuring safety without obstructing views.

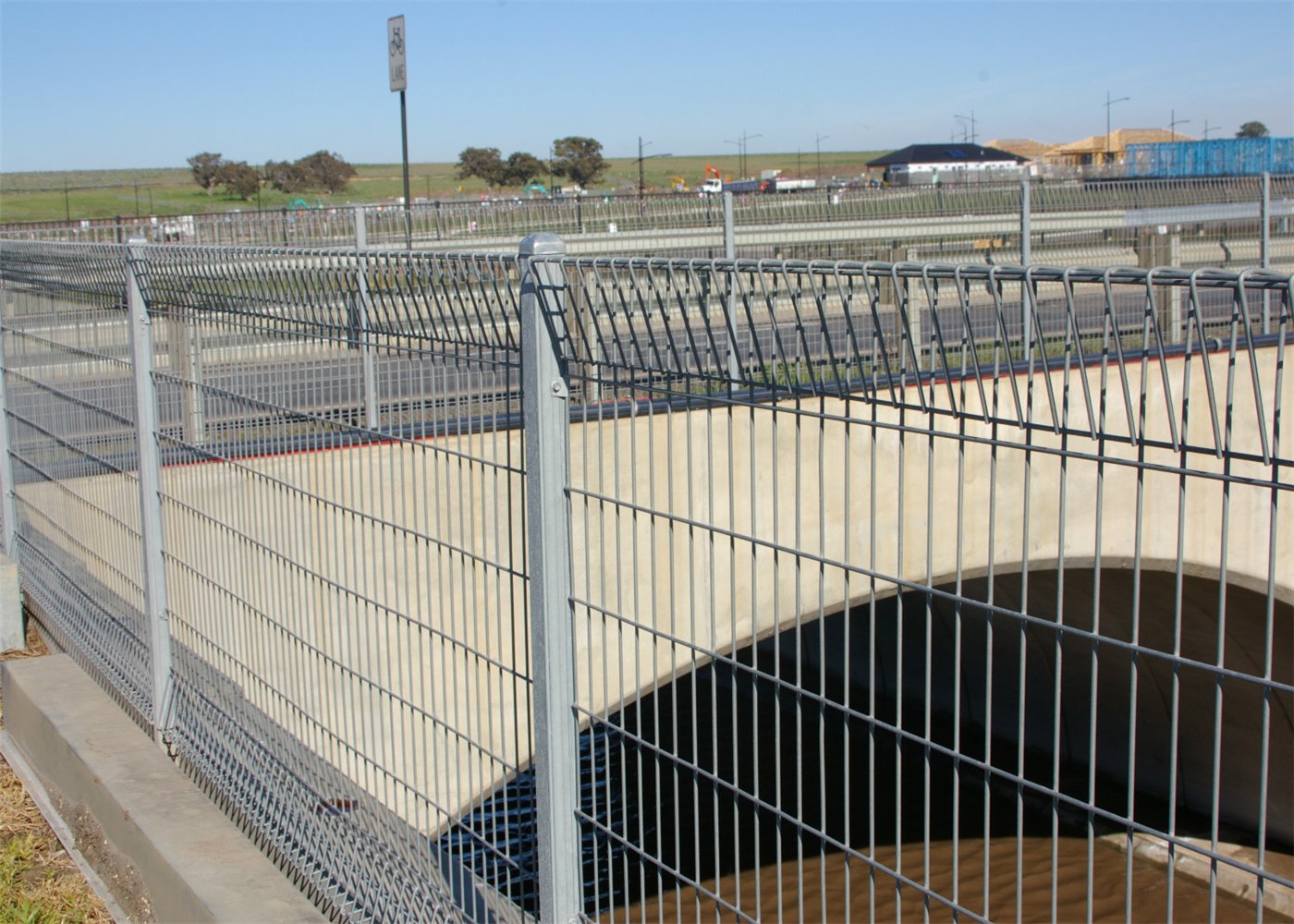

- Transportation Zones: Use BRC fences at airports, railways, and bus terminals to control access and enhance security.
Popular Colors of BRC Fence
BRC fences are available in various colors, with common options including:
- RAL 6005 (Green)
- RAL 7016 (Grey)
- RAL 9005 (Black)
These colors can be customized according to the specific needs of the project, ensuring that the fence blends seamlessly with its surroundings.
Conclusion
The BRC fence, or Roll Top fence, is an excellent choice for a wide range of applications, offering both security and visibility. Its robust design, corrosion resistance, and versatility make it a popular option for parks, schools, residential areas, and more. With options for both galvanized and PVC-coated finishes, BRC fences are designed to provide long-term durability and a professional look.
Whether you’re installing a fence for security, aesthetics, or both, BRC fences offer an effective and customizable solution to meet your needs. With easy installation and a range of sizes and finishes, BRC fences are an investment in both quality and reliability.
