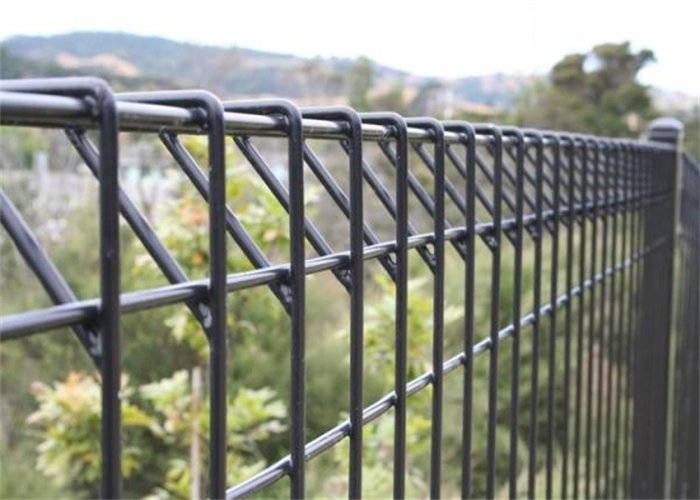

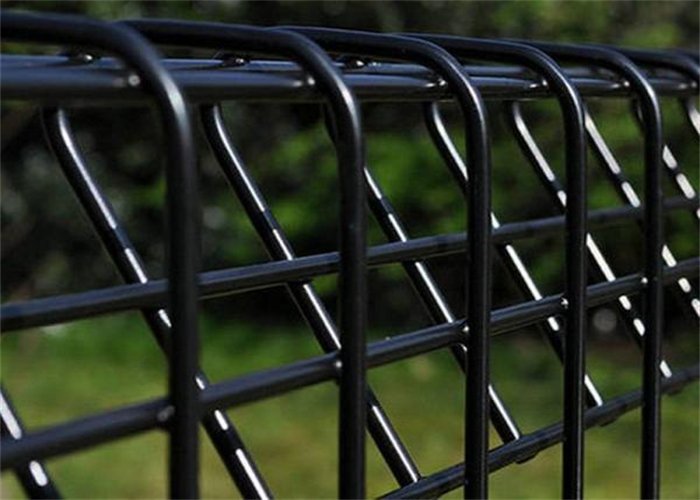

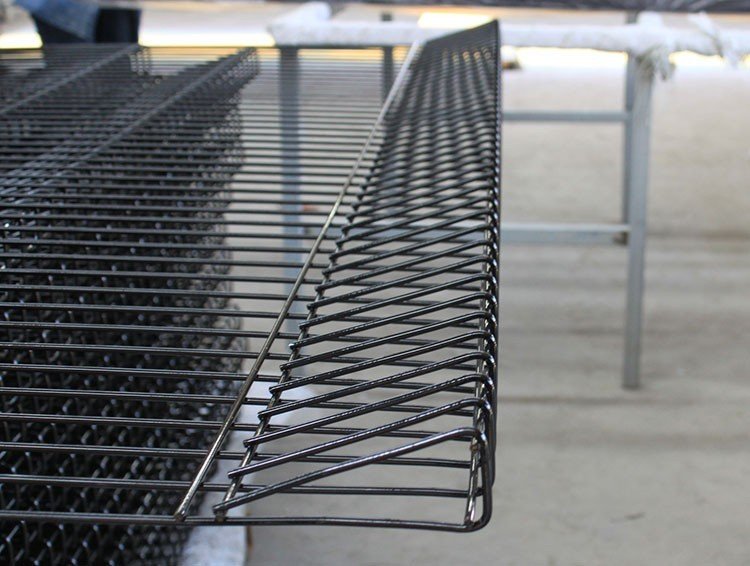

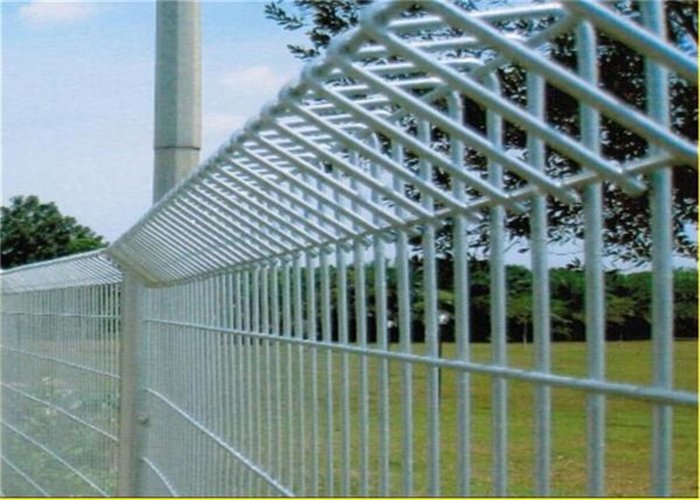

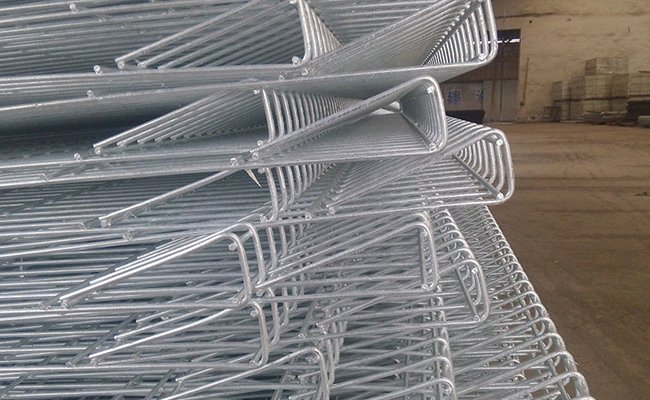

BRC Steel Matting Fence, also known as Roll Top Mesh Fence, is a widely used fencing system designed for safety, durability, and aesthetics. It consists of welded mesh panels with rolled top and bottom edges to eliminate sharp edges, ensuring a smooth and secure finish. This fencing system is popular in Australia, Southeast Asia, and the European market due to its reliability and easy installation. It is ideal for parks, recreational areas, playgrounds, schools, and other public or private spaces where safety and visibility are important.
Features of BRC Steel Matting Fence
- High Safety: The rolled top and bottom edges eliminate sharp edges, reducing the risk of injury.
- Rigid Structure: The welded steel mesh ensures a high-strength panel resistant to bending and external forces.
- Good Visibility: The open mesh design allows clear sightlines, making it suitable for security applications.
- Corrosion-Resistant Coating: Available in galvanized, powder-coated, and PVC-coated finishes to resist rust and UV radiation.
- Easy Installation: Quick assembly using steel posts, clips, and fixings.
- Customization Options: Available in different sizes, mesh apertures, and colors to match specific requirements.
Common Applications of BRC Steel Matting Fence
- Security protection for residential buildings, schools, and commercial premises.
- Perimeter fencing for sports fields, parks, and playgrounds.
- Public infrastructure fencing such as highways, airports, railway stations, and car parks.
- Factory and warehouse fencing for controlled access and safety.
Specifications of BRC Steel Matting Fence
Panel Size and Wire Diameter
| Panel Height (mm) | Panel Width (m) | Wire Diameter (mm) | Mesh Size (mm) |
|---|---|---|---|
| 900 | 2.4 & 3 | 4.0 & 5.0 | 50×100, 50×150, 50×200 |
| 1200 | 2.4 & 3 | 4.0 & 5.0 | 50×100, 50×150, 50×200 |
| 1500 | 2.4 & 3 | 4.0 & 5.0 | 50×100, 50×150, 50×200 |
| 1800 | 2.4 & 3 | 4.0 & 5.0 | 50×100, 50×150, 50×200 |
| 2100 | 2.4 & 3 | 4.0 & 5.0 | 50×100, 50×150, 50×200 |
| 2400 | 2.4 & 3 | 4.0 & 5.0 | 50×100, 50×150, 50×200 |
Other sizes are available upon request.

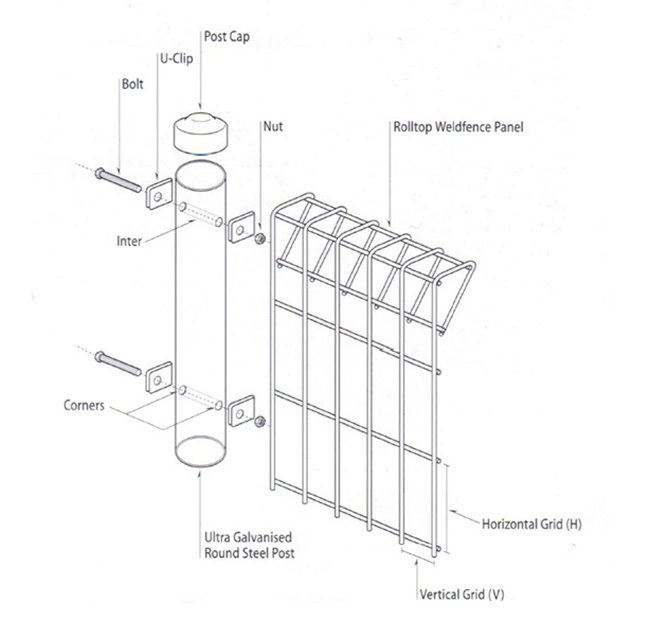

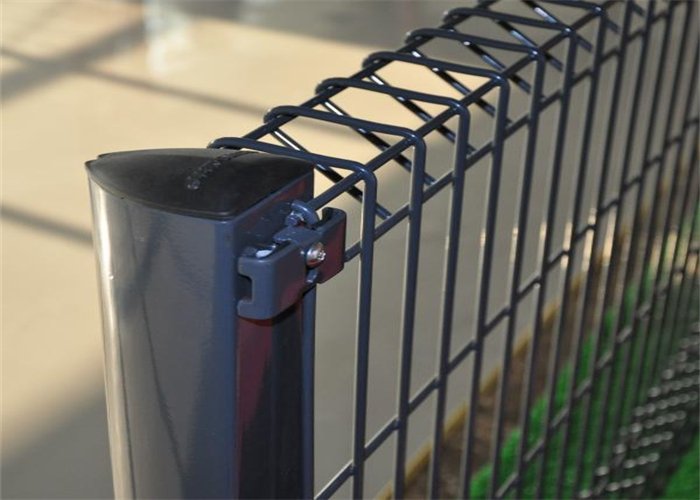

Post Specifications
| Post Type | Dimensions |
| Square Tube | 60×60mm, 60×80mm |
| Round Pipe | φ48mm, φ50mm, φ60mm |
Additional fixings allow installation on sloped terrain.
Surface Treatment Options
- Hot Dipped Galvanized After Fabrication
- Galvanized Material Fabricated, then Powder-Coated & PVC-Coated
- Hot Dipped Galvanized After Fabrication, then Powder-Coated & PVC-Coated
Coating Details:
| Surface Type | Min Thickness | Max Thickness |
| Hot Dipped Galvanized | 450g/m² | 650g/m² |
| Powder Coating | 60μm | 120μm |
| PVC Coating | 450μm | 650μm |
Popular Colors:
- Green RAL 6005 (most common)
- Grey RAL 7016
- Black RAL 9005
- Other colors available upon request.
Advantages of BRC Steel Matting Fence
- Secure Design: The roll top and bottom edges eliminate sharp points, making it ideal for environments where safety is a priority.
- Quick & Easy Installation: Assembly requires only basic tools, and panels can be attached using bolts, nuts, and clamps.
- Durability & Strength: Double-layer coating (galvanized + powder/PVC coating) ensures long-lasting resistance to corrosion and harsh weather conditions.
- Factory Quality Control: Each component is produced and checked in-house to maintain high-quality standards.
- Customizable: Available in various sizes, thicknesses, and colors to suit different fencing needs.
- Low Maintenance: Resistant to rust, requiring minimal maintenance over its lifespan.
Installation Process
- Prepare the site by marking post locations and digging holes.
- Secure the posts by placing them in concrete and allowing them to set.
- Attach the panels to the posts using clamps, bolts, and nuts.
- Install additional security features like razor wire or barbed wire if needed.
- Ensure alignment and stability before finalizing the installation.
BRC Steel Matting Fence Material Options
| Material Type | Description |
| Low Carbon Steel Wire | Standard material for BRC fences |
| High Carbon Steel Wire | Provides extra strength and rigidity |
| Galvanized Iron Wire (Q195 & Q235) | Enhances rust and corrosion resistance |
BRC Steel Matting Fence Pricing (Estimated in PHP)
| Fence Type | Price Per Square Meter (PHP) | Installation Cost Per Square Meter (PHP) |
| 900mm Height | PHP 2,430.25 – PHP 4,970.80 | PHP 1,200.50 – PHP 2,500.75 |
| 1200mm Height | PHP 2,500.50 – PHP 5,200.75 | PHP 1,300.25 – PHP 2,700.50 |
| 1500mm Height | PHP 2,800.75 – PHP 5,500.80 | PHP 1,400.50 – PHP 3,000.25 |
| 1800mm Height | PHP 3,200.40 – PHP 6,000.50 | PHP 1,500.75 – PHP 3,200.50 |
| 2100mm Height | PHP 3,500.75 – PHP 6,500.90 | PHP 1,800.50 – PHP 3,500.75 |
| 2400mm Height | PHP 3,800.25 – PHP 7,000.60 | PHP 2,000.80 – PHP 3,800.40 |
Conclusion
BRC Steel Matting Fence, or Roll Top Mesh Fence, is an excellent choice for both public and private properties. It combines safety, durability, and ease of installation with a modern design. With multiple coating options and custom sizes available, this fencing solution offers long-term security and aesthetic value. Whether for parks, playgrounds, schools, or industrial sites, BRC fencing remains a preferred option worldwide.
