BMP Slope Protection
Chain link fence construction offers a versatile, durable, and cost-effective solution for temporary barriers. Widely used for construction sites, outdoor events, and security purposes, chain link fences are easy to install, lightweight, and highly functional. With its galvanized steel components and customizable options, this fencing system provides long-lasting protection against unauthorized access, while also being easy to transport and install.
In this guide, we will explore the technical specifications of chain link fence construction, its key benefits, and the various options available for installation.
Key Features of Chain Link Fence Construction:
- Durable Material: The fence is made from low carbon steel wire (Q195) and carbon steel pipe (Q235), ensuring strength and long-term durability.
- Weather-Resistant: The hot-dipped galvanized finish offers superior corrosion resistance, enabling the fence to withstand harsh weather conditions.
- Ease of Installation: No digging or foundation work is necessary, allowing for a quick and efficient setup process.
- Portability: Lightweight design makes the fence easy to transport, perfect for temporary installations.
- Customizable Size and Design: The fence comes in various heights, widths, and mesh sizes to meet different security and site requirements.
Specifications for Chain Link Fence Construction
| Specification | Details |
|---|---|
| Material | Low carbon steel wire (Q195), carbon steel pipe (Q235) |
| Wire Diameter | 2.7mm (standard) |
| Mesh Opening | 58x58mm, 60x60mm, 50x50mm |
| Frame Pipe Diameter | 32mm O.D., 33.4mm O.D. |
| Pipe Thickness | 2.0mm – 3.0mm |
| Panel Size (Height x Width) | 6ft x 10ft, 6ft x 12ft |
| Surface Finish | Hot-dipped galvanizing |
| Wire Zinc Coating | 200g/m² (28 microns) |
| Pipe Zinc Coating | 300g/m² (42 microns) |
| Fence Base | Blow-molded plastic concrete feet (762mm x 460mm) |
| Standard | ASTM A392-06 |
| Weight per Square Meter | 1.1kg/m² |
| Package | On steel pallet, wrapped in plastic |
| Transport | Forklift-assisted delivery for easy distribution |
| HDG Zinc Thickness | 14 microns (100g/SQM), 28 microns (200g/SQM), 42 microns (300g/SQM), 84 microns (600g/SQM) |
Types of Chain Link Temporary Fences
- Standard Height Options: 4ft, 6ft, 8ft, 12ft
- Panel Sizes: Common panel sizes include 6ft x 12ft, 8ft x 12ft, and 4ft x 12ft.

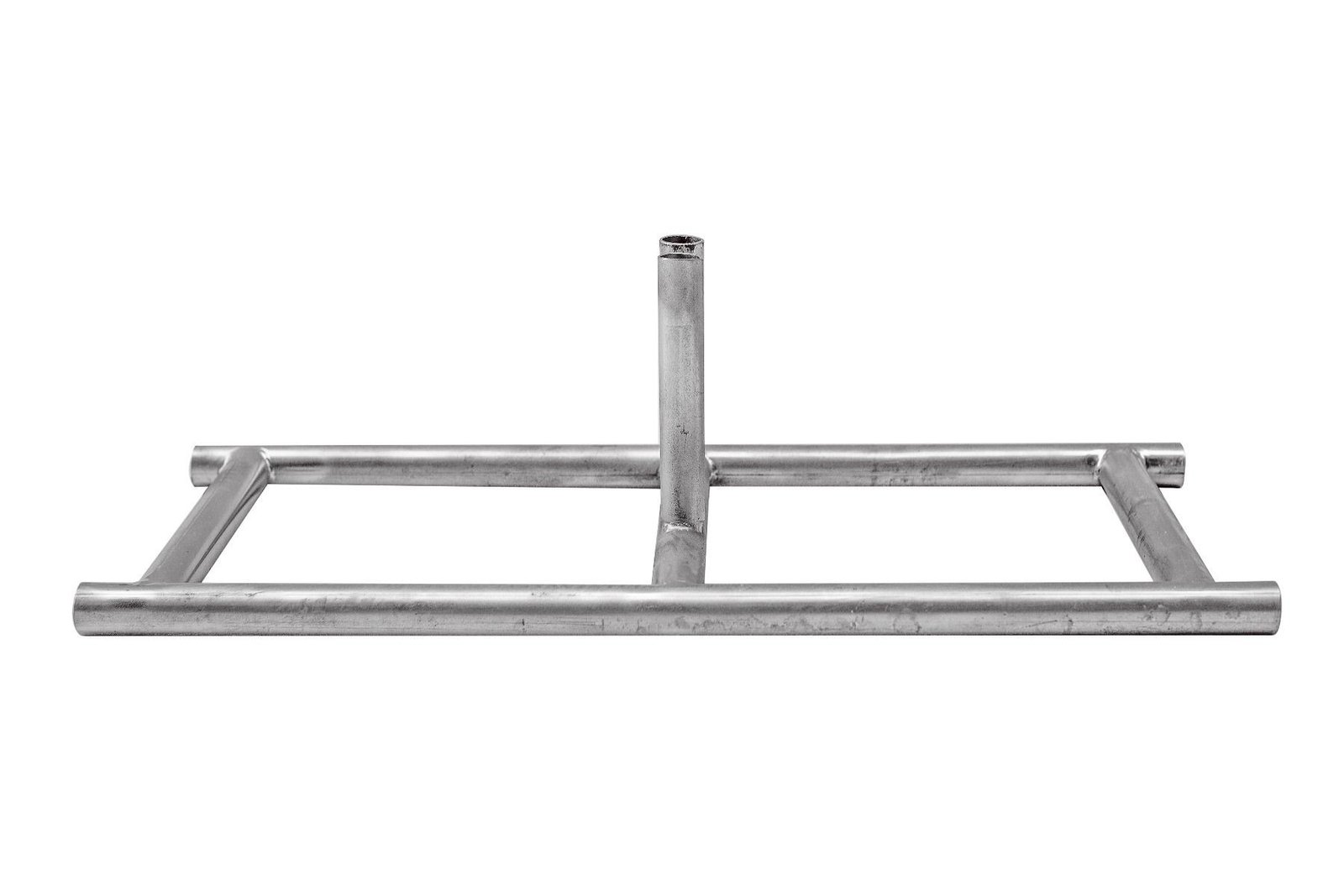

- Base Options:
- 36” length x 30” width x 8” height (914mm x 762mm x 203mm)
- 36” length x 16” width x 8” height (914mm x 406mm x 203mm)
- 30” length x 18” width x 8” height (762mm x 460mm x 203mm)
Benefits of Chain Link Fence Construction
- Quick and Easy Setup
Chain link fences are easy to install and can be set up in a matter of minutes without disturbing the ground. This makes them ideal for temporary fencing on construction sites, events, and more. - Weather Resistance and Durability
The hot-dipped galvanizing on both the wire and frame ensures that the fence will withstand rust and corrosion, even in harsh environmental conditions. This makes chain link fences ideal for outdoor use in any climate. - Lightweight Yet Robust
Despite being lightweight, chain link fences are incredibly strong and durable. This makes them suitable for both short-term and long-term applications. - Portable and Removable
The removable feet and modular design make chain link fences easy to transport, store, and reinstall when necessary. - Cost-Effective
Chain link fences offer a budget-friendly option for temporary fencing without compromising on strength and security. They can be reused multiple times, increasing their value for money. - Customizable
You can choose from a variety of mesh sizes, frame diameters, and panel sizes to suit your specific needs. Whether you require high-security fencing or basic perimeter protection, chain link fences can be tailored accordingly.
Installation Process:
- Weaving: Workers weave pre-galvanized steel wire into the desired mesh size.
- Frame Construction: Workers cut galvanized frame pipes to size and weld them together to form the fence structure.
- Assembly: Workers attach the woven mesh to the frame using wire ties to ensure a secure fit.
- Base Feet Application: Workers coat the base feet to prevent rust, and the fence becomes ready for installation.
Applications of Chain Link Fence Construction
Chain link fence construction is widely used in various industries and applications, including:
- Construction Sites: Provides security and safety for construction zones.
- Event Management: Used to secure outdoor events, sports arenas, festivals, and concerts.
- Public Utilities: Ideal for fencing off public utilities, power plants, and other sensitive areas.
- Security: A cost-effective solution for creating temporary perimeters in residential and commercial properties.
- Crowd Control: Perfect for controlling large crowds at public events or gatherings.
Conclusion
Chain link fence construction is an essential tool for temporary fencing in a variety of applications. Whether you need it for a construction site, event, or security purposes, this fencing system offers flexibility, durability, and ease of installation. With its corrosion-resistant materials and customizable options, chain link fencing ensures long-term reliability, even in the harshest conditions.
For more information or to place an order, please contact us today!
