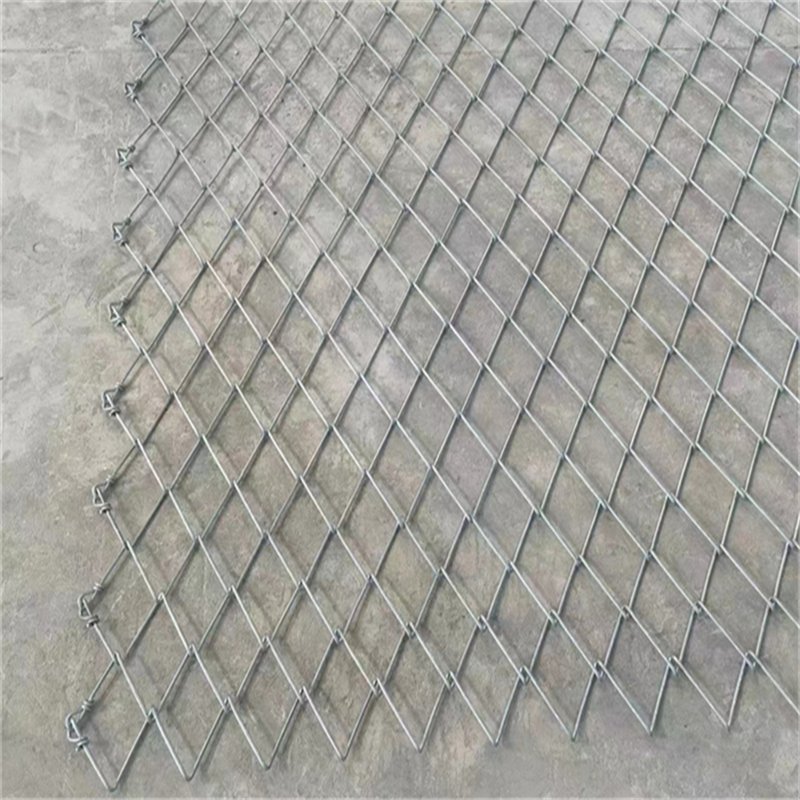

BMP G80/4.6 tecco mesh is the most robust model in the BMP tecco range. Built from 4.6 mm high-tensile steel wire and formed into rhomboid (diamond) cells with an ≈ 80 mm inscribed opening, it delivers exceptional capacity for demanding geotechnical conditions—steep rock faces, dynamic rockfall zones, and mining ground support—while remaining modular and field-friendly. Knotted ends ensure strong load transfer and tidy, secure edges. The mesh integrates with anchors, spike plates, and lacing systems to create a complete, high-performance facing.
2) Key Advantages G80/4.6 tecco mesh
- Maximum robustness within the BMP tecco family
- High strength-to-weight from ultra-high-tensile wire (≥ 1770 N/mm²)
- Large aperture (≈ 80 mm) for drainage, vegetation, and reduced visual impact

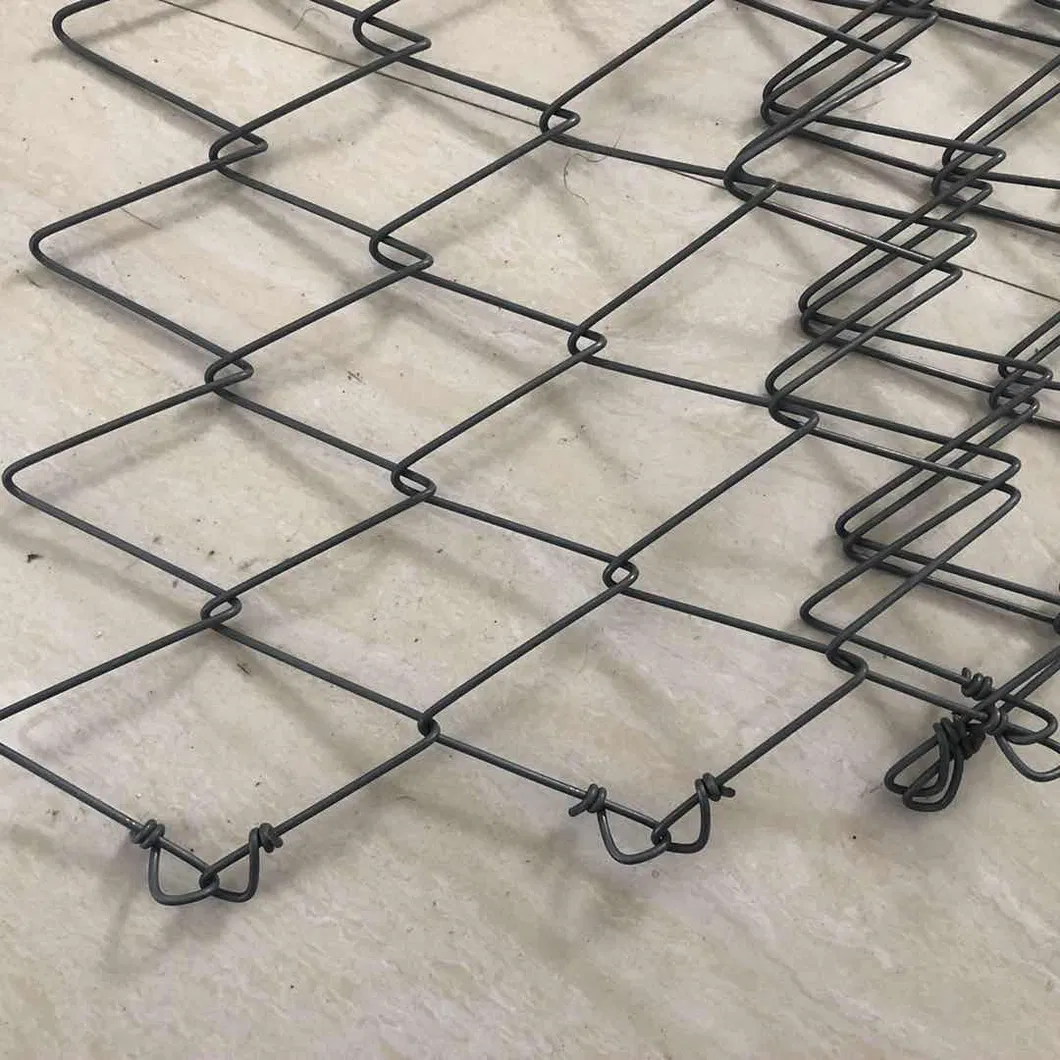

- Knotted edges for reliable force transfer to boundaries and seams
- Durable coatings (Zn-Al or HDG) for long service life in harsh climates
- Systemized installation with compatible anchors, spike plates, and ropes
3) Technical Specifications (G80/4.6)
| Item | Specification |
|---|---|
| Model | G80/4.6 |
| Wire diameter | 4.6 mm (high-tensile steel) |
| Wire tensile strength | ≥ 1770 N/mm² |

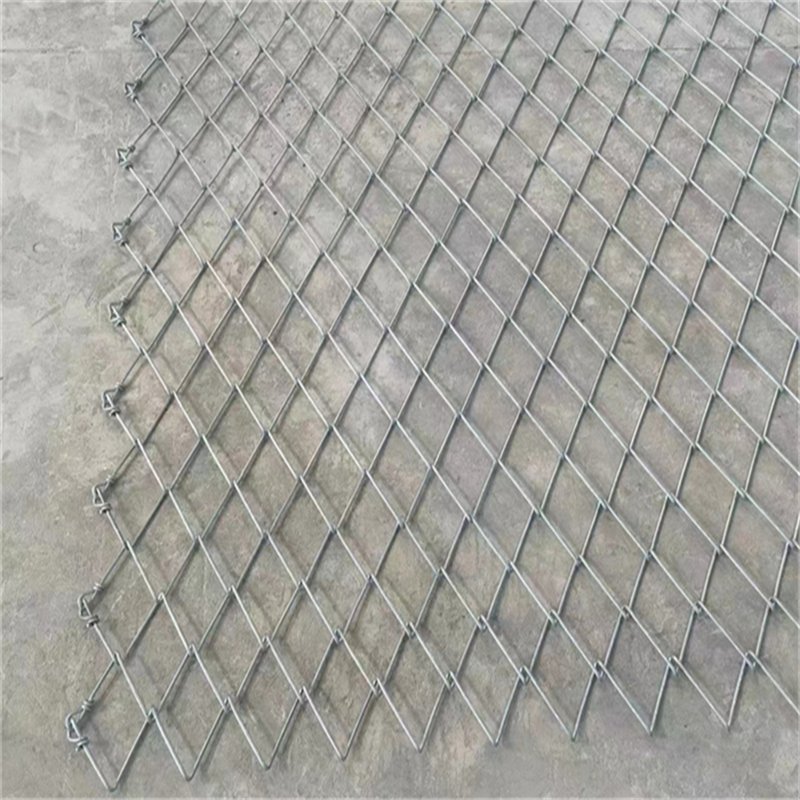

| Mesh geometry | Rhomboid/diamond, knotted ends |
| Opening reference | ≈ 80 mm (inscribed circle of the diamond) |
| Typical diamond diagonals | ~102 × 173 mm (± few %) |
| Mesh tensile capacity class | Very high / top of range for BMP tecco meshes* |
| Coating options | Zn–Al (Galfan) or hot-dip galvanized; typical coating mass ≥ 150 g/m²; heavier classes available on request |

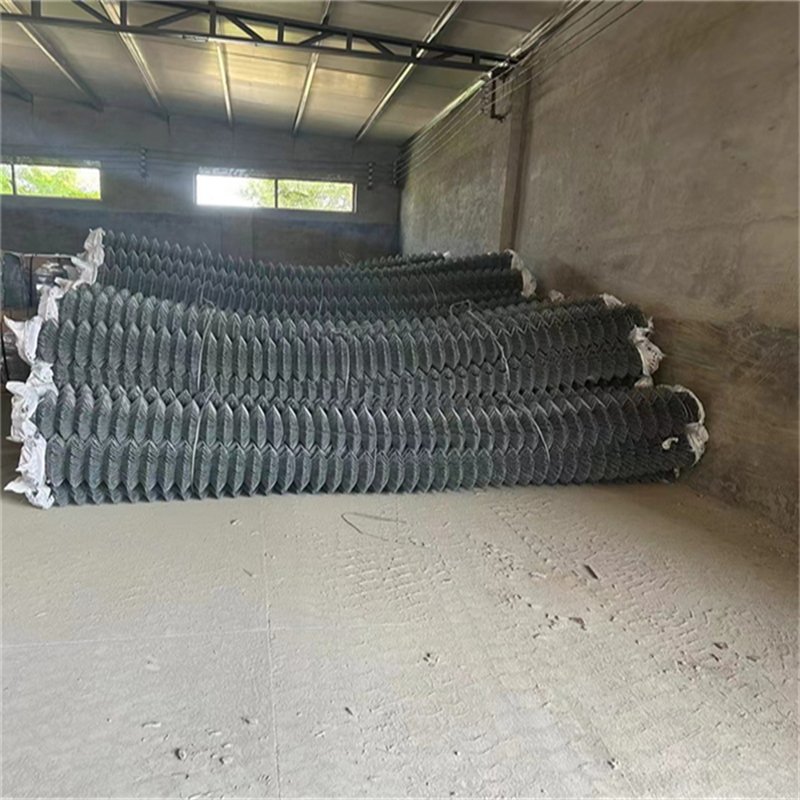

| Roll width (typical) | 1.0 m – 3.9 m |

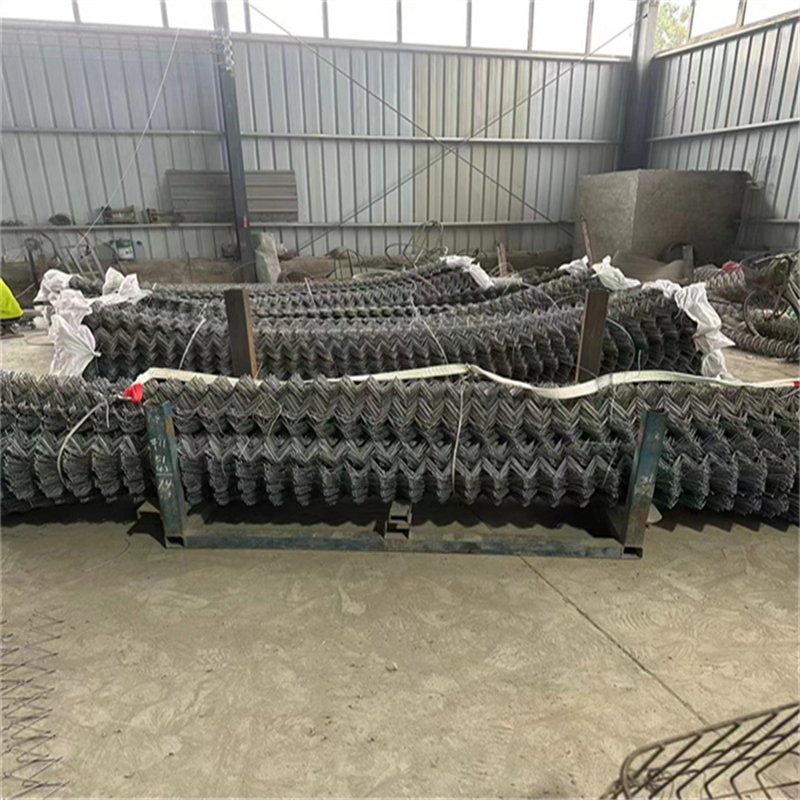

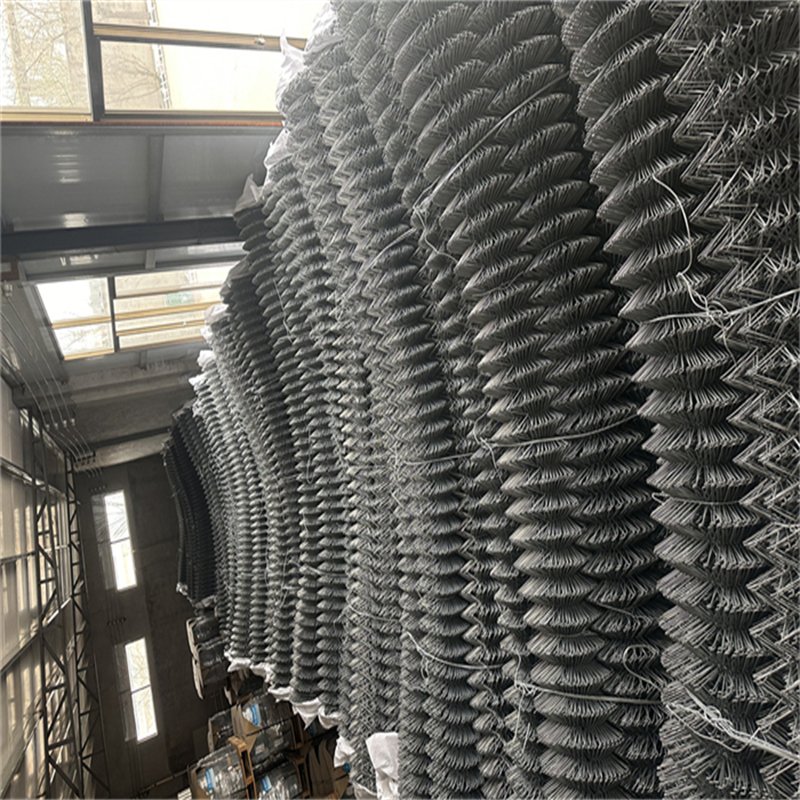

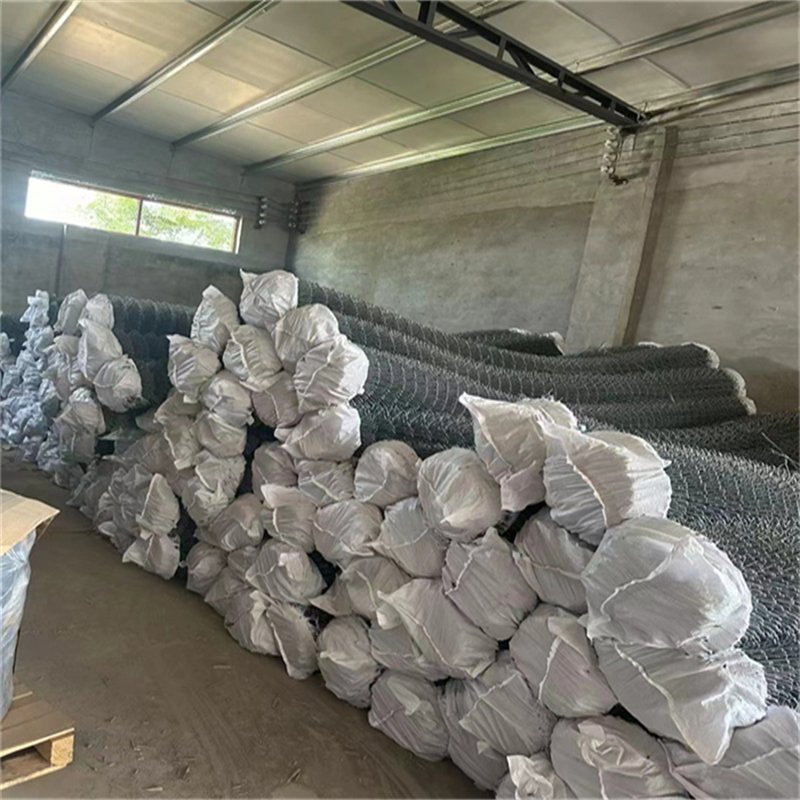

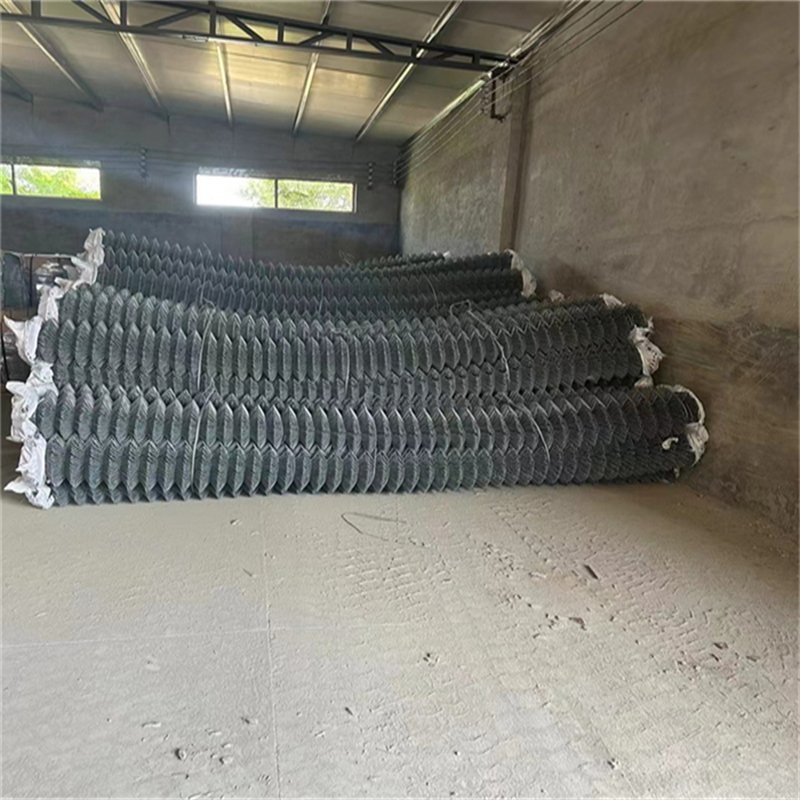

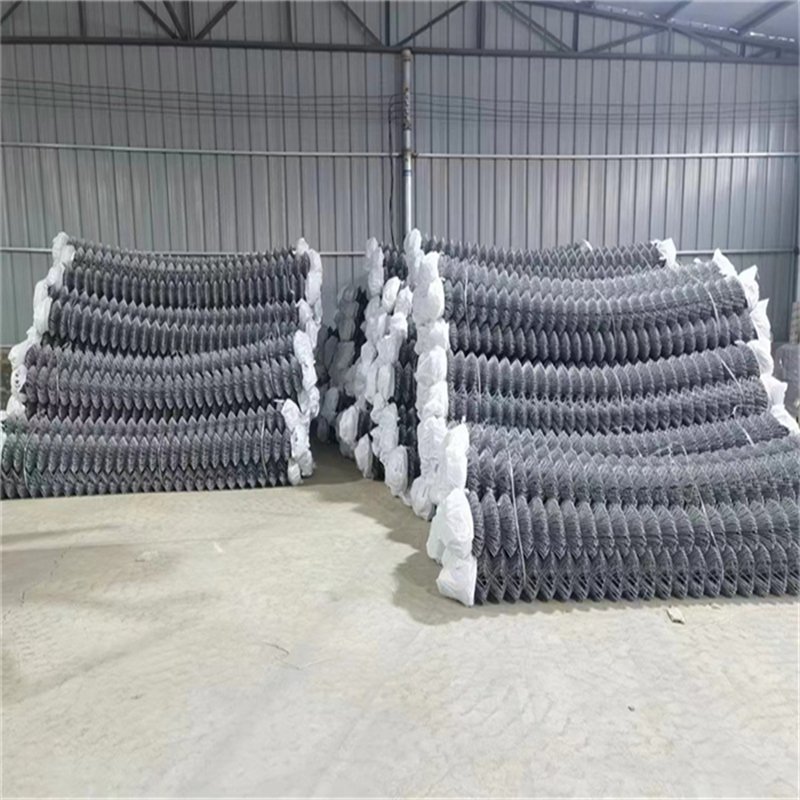

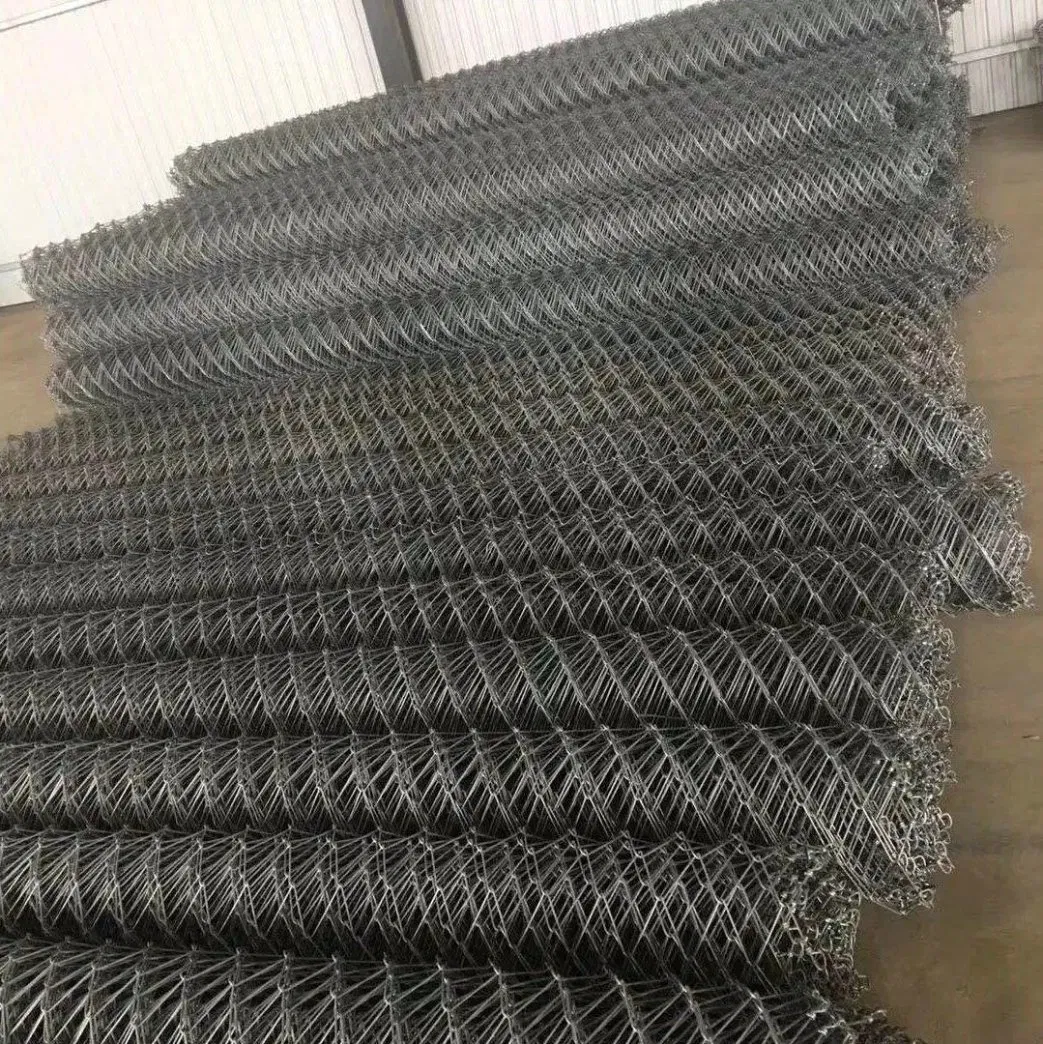

| Roll length (typical) | 10 m – 30 m |

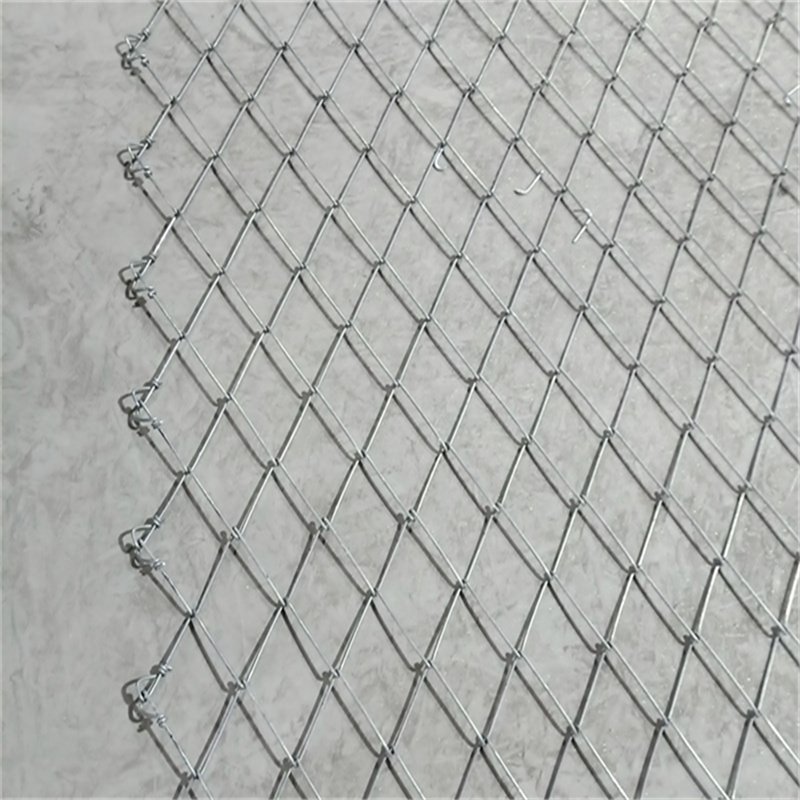

| Edge finish | Knotted ends; prepared for lacing/sewing |
| System compatibility | Spike plates, anchors/bolts, boundary rope, sewing (lacing) rope, connection clips |
*Exact rated mesh-tensile, puncture, shear, and unit mass are configuration-dependent (wire/coating/tolerances). Certified values are provided on the project datasheet for the ordered build.
4) Typical Applications G80/4.6 tecco mesh

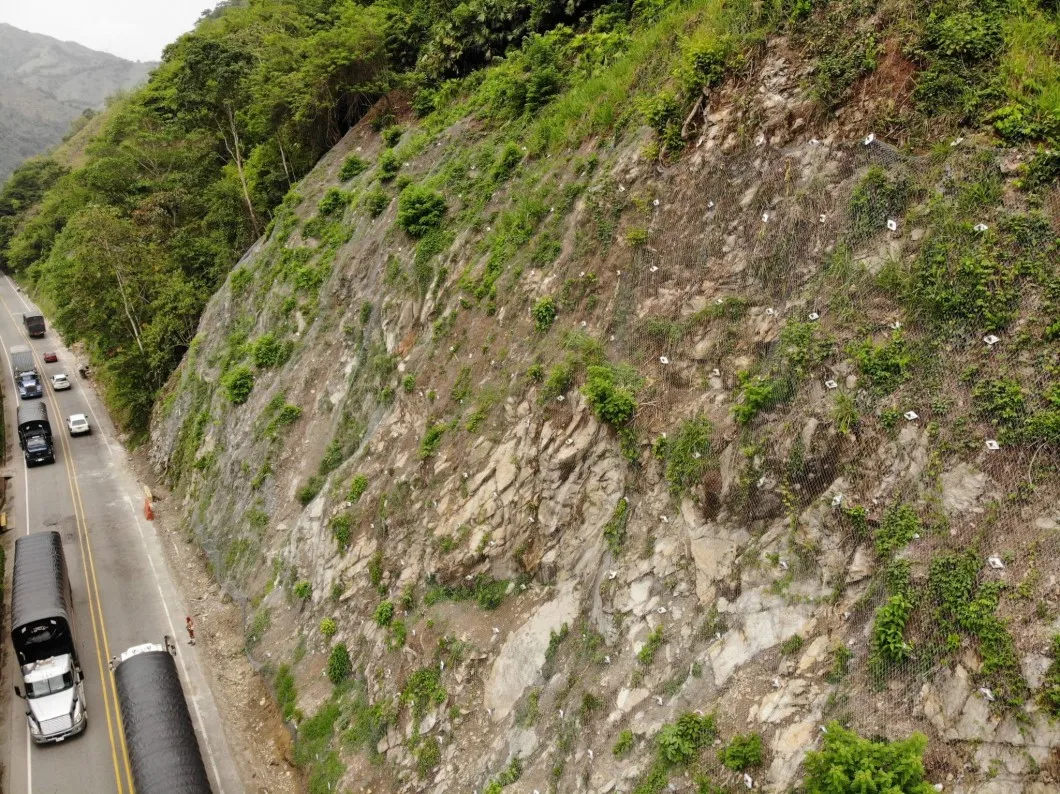

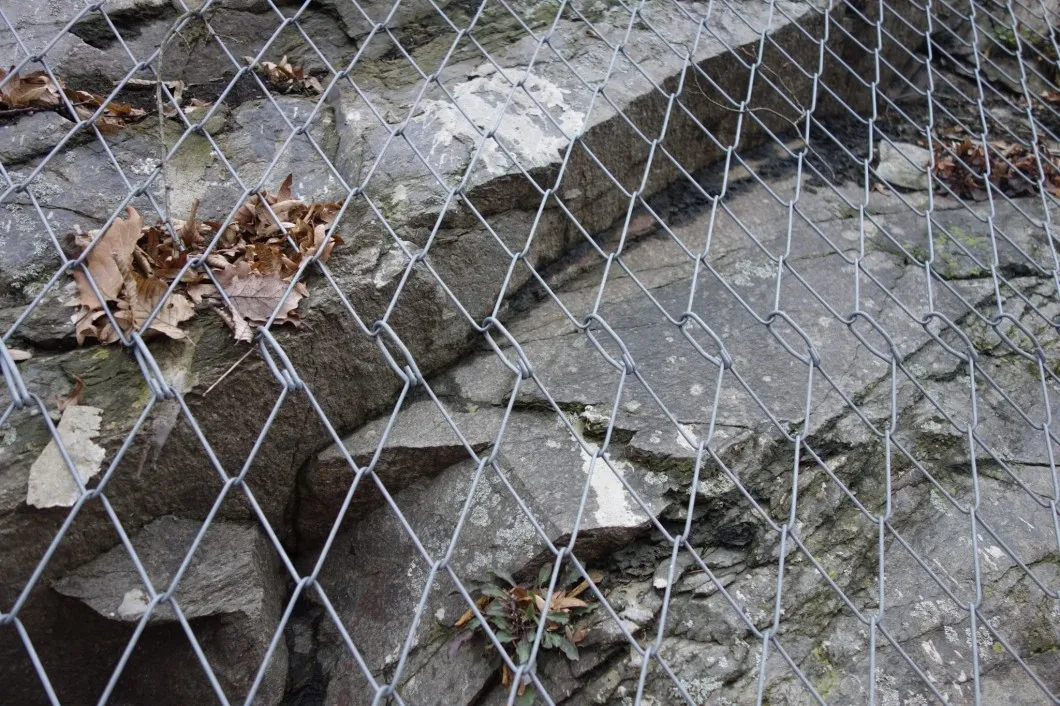

- Rockfall protection on steep slopes and cuttings
- Dynamic ground support in high-stress zones (e.g., mining portals, headings)
- High-energy impact areas where maximum mesh capacity is required

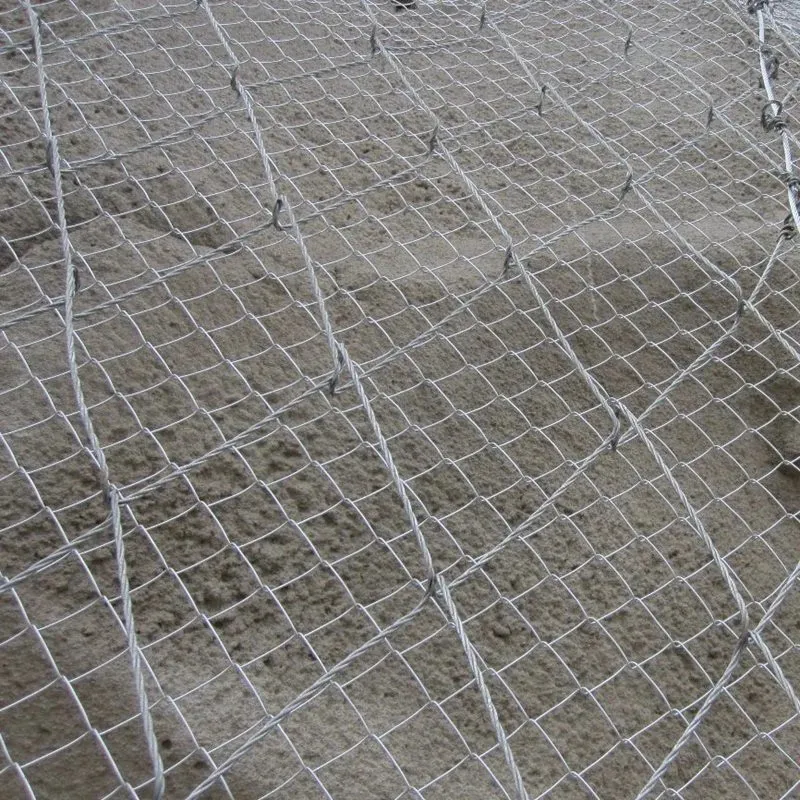

- Soil-nail / rock-bolt facings needing a durable, open, and strong surface
5) System Components (select as needed)
| Component | Function |
|---|---|
| Spike plates | Transfer/hold anchor load into the mesh effectively |
| Anchors / bolts | Primary connection to competent ground (self-drilling or bar anchors) |
| Boundary rope | Secures perimeter, transitions, and terminations |
| Sewing (lacing) rope | Joins adjacent panels; maintains continuity and load paths |
| Connection clips/clamps | Rapid local connections where specified |
6) Installation Summary (Good Practice)
- Survey & design: define anchor grid, panel layout, overlaps or seam sewing.
- Drill & set anchors: verify embedment; fit spike plates and nuts; pretension per design.
- Place panels: align diamonds with load paths; secure edges using boundary rope.
- Sew/lace panels: apply specified lacing pitch; keep uniform tension; add clips where required.
- Pretension & inspect: tighten to the design torque; check contact, overlaps, and terminations.
7) Quality & Documentation
- Manufactured from high-tensile steel wire under controlled tolerances
- Batch test certificates (wire strength, coating) available on request
- Project submittals typically include: panel schedule, anchor layout, spike plate details, lacing method, inspection/acceptance criteria
8) Family Positioning (for selection)
| Model | Wire Ø | Inscribed Opening | Typical Use Note |
|---|---|---|---|
| G65/4 | 4.0 mm | ≈ 65 mm | High-capacity baseline for many slopes |
| G80/4 | 4.0 mm | ≈ 80 mm | Large aperture with high capacity |
| G80/4.6 | 4.6 mm | ≈ 80 mm | Maximum robustness; top mechanical class |
9) Ordering Checklist (G80/4.6)
- Model: G80/4.6 tecco mesh
- Wire/coating: 4.6 mm; Galfan or HDG (state target coating mass/class)
- Roll size: width × length within 1.0–3.9 m × 10–30 m
- Accessories: spike plates, anchors/bolts, boundary rope, sewing rope, clips
- Documentation: request batch certificates and a project-specific datasheet (rated capacities, unit mass)
Conclusion G80/4.6 tecco mesh
BMP G80/4.6 tecco mesh is engineered for projects that demand the highest mesh capacity and durability. Its 4.6 mm high-tensile wire, ~80 mm diamonds, knotted edges, and long-life coatings create a rugged, system-ready facing that installs efficiently and holds up under severe static and dynamic loads—making it the dependable choice for critical rockfall and ground-support applications.
