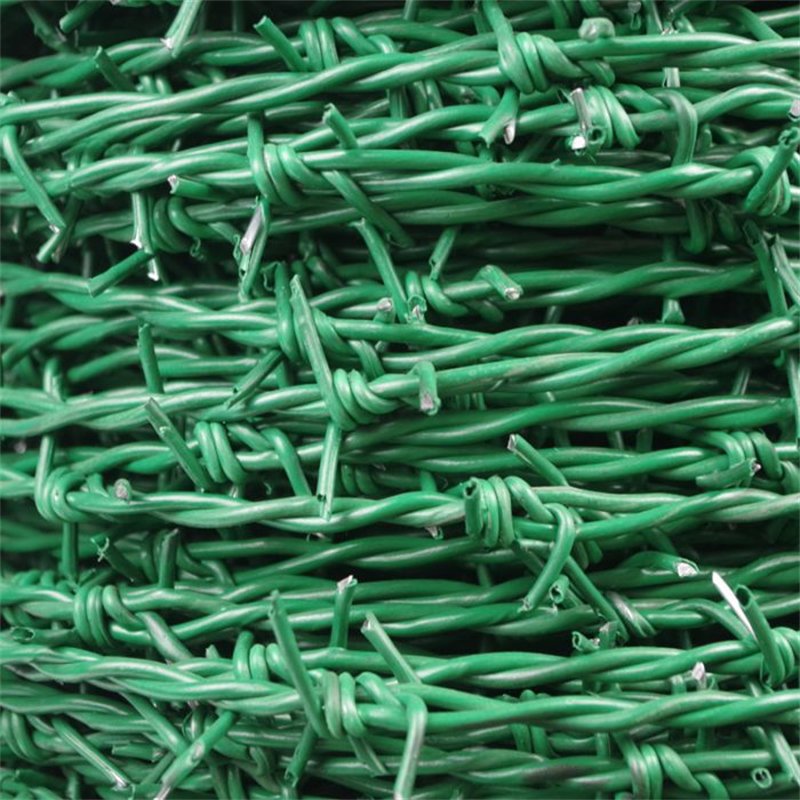

PVC Coated Barbed Wire

PVC coated barbed wire is a practical and aesthetically pleasing fencing solution widely used in various industries. This wire provides exceptional durability and an attractive appearance, making it ideal for use in residential areas, parks, industrial zones, and other locations where environmental harmony and security are important. The PVC coating not only enhances the wire’s corrosion resistance but also allows for a variety of colors, improving its appearance to suit different environments.

Features of PVC Coated Barbed Wire

• High Quality: PVC coated barbed wire provides stability and rigidity, ensuring a strong, secure fence.
• High Strength: The barbed wire is robust enough to secure cattle, horses, and other livestock in designated areas.
• Security: The sharp edges of the barbed wire act as a deterrent to intruders and thieves, enhancing security.
• Variety of Strands: Available in both single and double strands to suit different budgets and security requirements.
• Corrosion Resistance: The galvanized core and PVC coating offer excellent rust and corrosion resistance, extending the wire’s lifespan.
• Color Options: The PVC coating comes in various colors, including green, red, and other custom choices, allowing it to blend with its surroundings.
• Ease of Installation: The barbed wire comes with all necessary accessories, making installation and removal simple and convenient.
• Safety and Visibility: The painted barbs improve visibility and serve as a warning feature.

Applications of PVC Coated Barbed Wire

• Livestock Fencing: PVC coated barbed wire is commonly used on farms and ranches to contain livestock such as cattle, horses, and sheep. It serves as an alternative to woven wire field fences and electric fences.
• Security Fencing: Barbed wire is highly effective for securing boundaries. It can be installed along highways, railways, and other high-risk areas to prevent unauthorized access.
• Enhancing Existing Fences: PVC coated barbed wire can be added to existing wire mesh fences to enhance security in sensitive locations such as prisons, factories, military sites, and airports.

PVC Coated Barbed Wire: Aesthetic and Durable

The PVC coating process involves covering the wire with a layer of polyvinyl chloride (PVC), which not only improves corrosion resistance but also adds color options, making the wire more aesthetically pleasing and environmentally fitting. The coating also adds to the durability of the barbed wire, making it a reliable and long-lasting fencing option.

Specifications of PVC Coated Barbed Wire

• Polymeric Coating: Green RAL 6005
• Inside Wire: Galvanized wire
• PVC Coating Thickness: 0.4 mm – 0.6 mm

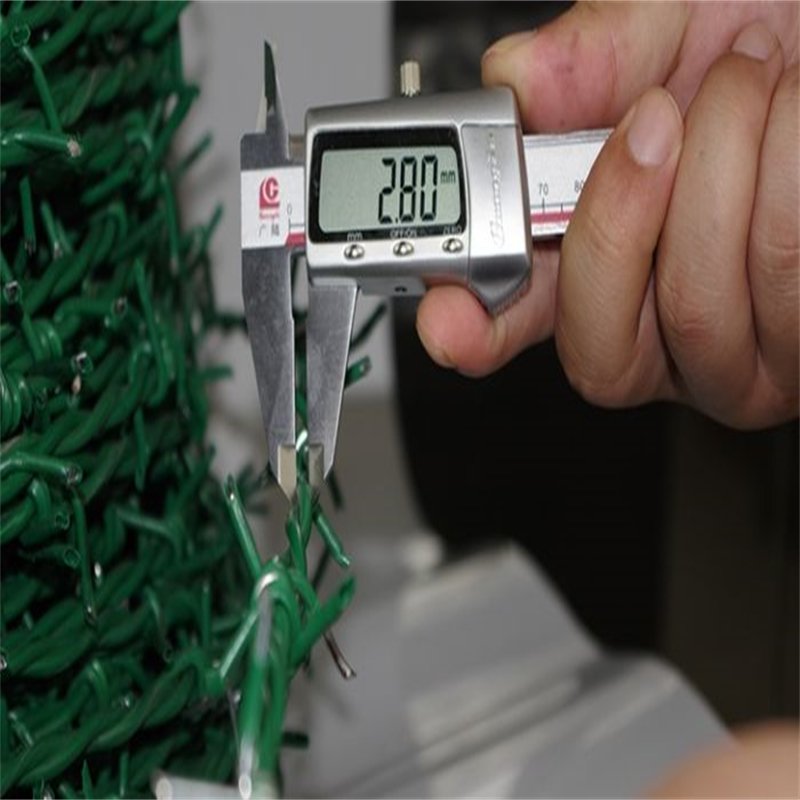

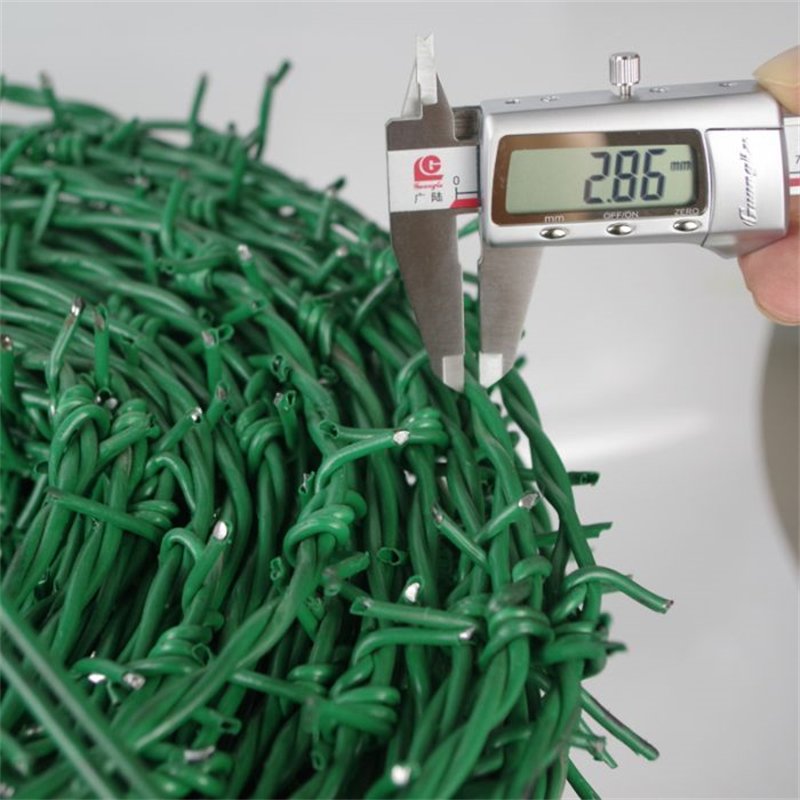

• Inside Wire Diameter: 1.6 mm – 3.5 mm
• Outside Wire Diameter: 2.0 mm – 4.0 mm
• Thorn Wire Diameter: 1.5 mm – 3.0 mm

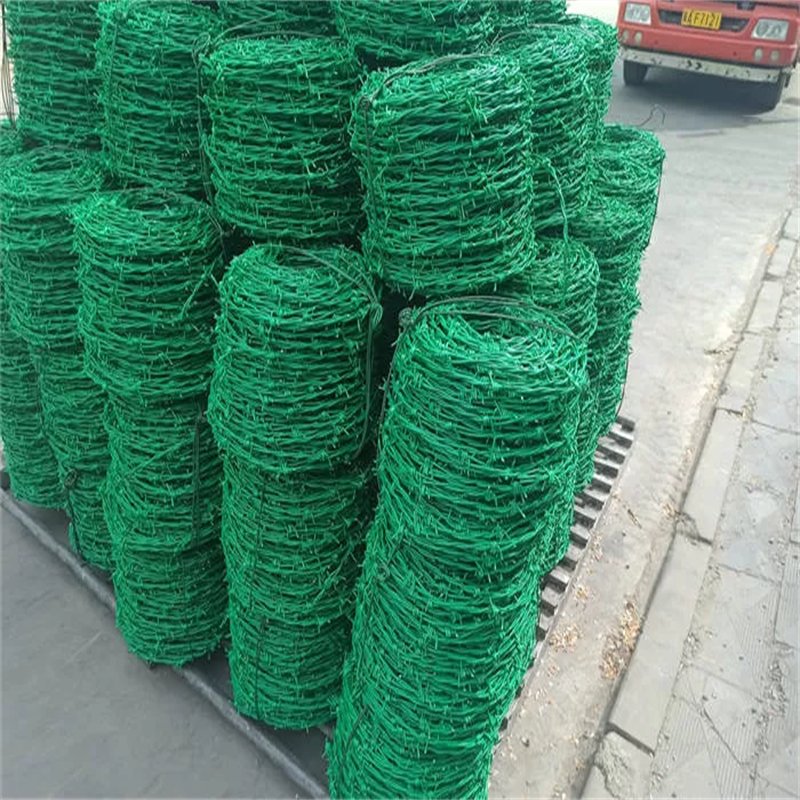

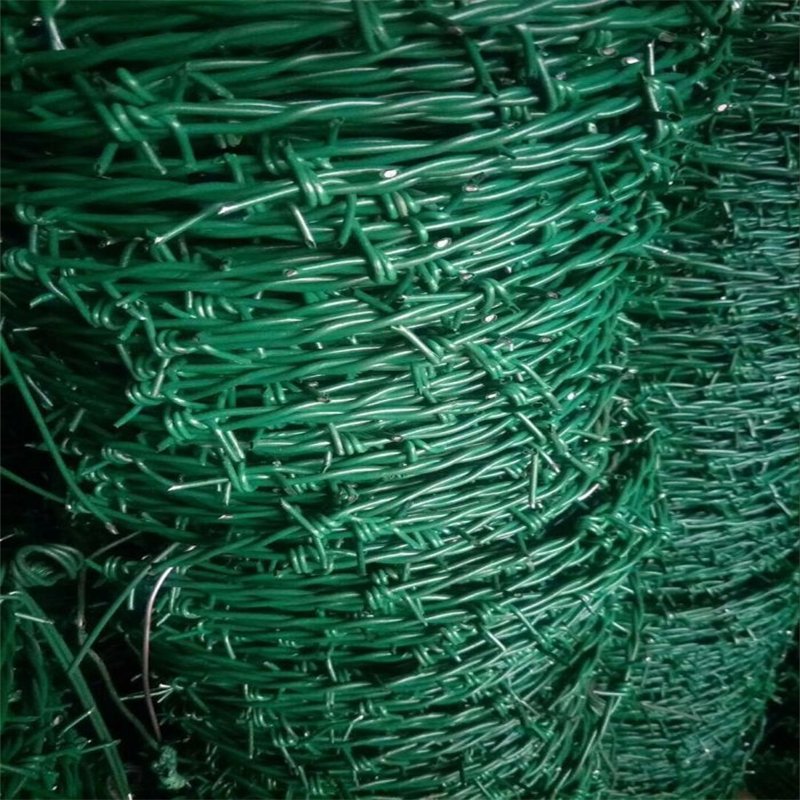

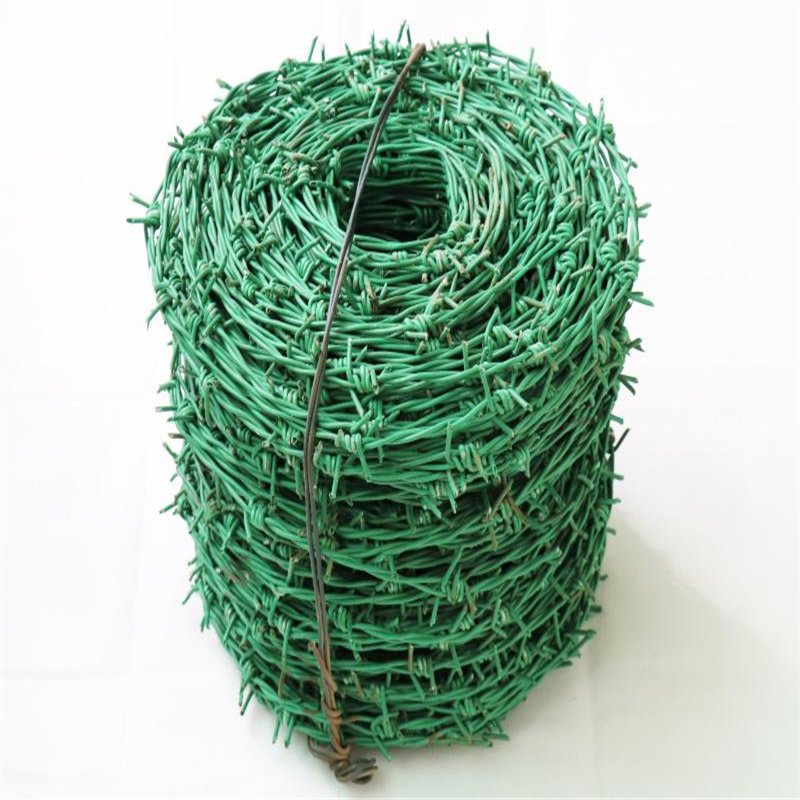

• Packaging Options: 50 m, 100 m, 250 m, 400 m per coil, or 30-50 kg per coil
• Color Options: Grass green, dark green, blue, yellow, orange, gray, etc.

Table 1: Minimum coating weight on zinc coated barbed wire

Table 2: Minimum Coating Thickness for Zinc and Aluminum Alloy Coated Barbed Wire

Item	Steel wire gauge	Nominal wire diameter		Minimum weight of coating Oz/ft2) (g/m2)
		in.	mm	Class 1	Class 3	Class 60
ZACBW-01	12-1/2	0.099	2.51	0.28 (85)	0.80 (245)	0.60 (183)
ZACBW-02	13	0.092	2.34	0.28 (85)	0.75 (230).	0.60 (183)
ZACBW-03	13-1/2	0.086	2.18	0.25 (75)	0.70 (215)	0.60 (183)
ZACBW-04	13-3/4	0.083	2.11	0.25 (75)	0.70 (215)	0.60 (183)
ZACBW-05	14	0.080	2.03	0.25 (75)	0.70 (215)	0.60 (183)
ZACBW-06	15-1/2	0.067	1.70	0.20 (61)	0.65 (198)	n/a
ZACBW-07	16-1/2	0.058	1.47	0.20 (61)	0.60 (183)	n/a

Specifications of Twist Double Strand Barbed Wire

Material: Galvanized steel wire, zinc-aluminum alloy wire, PVC coated wire, and stainless steel wire.
Strand Type: Single strand and double strand.
Twist Type: Traditional twist and reverse twist.

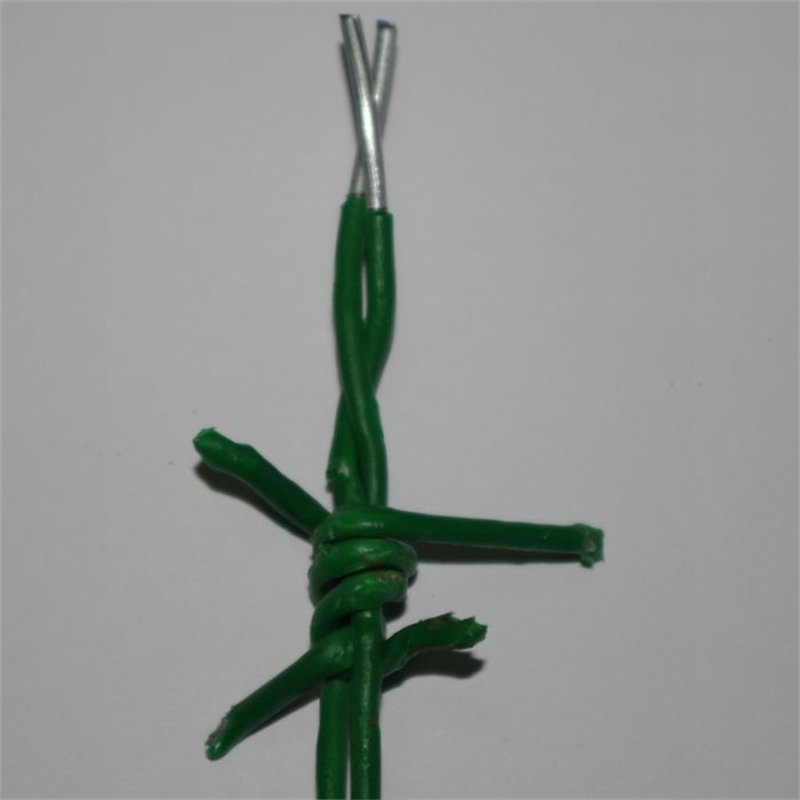

Barb Type: 2-point and 4-point.
Color Options: Grass green, dark green, yellow, blue, and other colors based on RAL standards.

Table 3: Standard Specifications of Traditional Twist Double Strand Barbed Wire

This rewrite provides a more formal and professional tone suitable for business contexts. Let me know if you need further refinement!

Item	Model (line wire × barb wire)	Approximate length per kilogram (m)
		Barb spacing 3″	Barb spacing 4″	Barb spacing 5″	Barb spacing 6″
BWCS-01	12 × 12	6.0617	6.7590	7.2700	7.6376
BWCS-02	12 × 14	7.3335	7.9051	8.3015	8.5741
BWCS-03	12-1/2 × 12-1/2	6.9223	7.7190	8.3022	8.7221
BWCS-04	12-1/2 × 14	8.1096	8.814	9.2242	9.5620
BWCS-05	13 × 13	7.9808	8.899	9.5721	10.0553
BWCS-06	13 × 14	8.8448	9.6899	10.2923	10.7146
BWCS-07	13-1/2 × 14	9.6079	10.6134	11.4775	11.8553
BWCS-08	14 × 14	10.4569	11.6590	12.5423	13.1752
BWCS-08	14-1/2 × 14-1/2	11.9875	13.3671	14.3781	15.1034
BWCS-10	15 × 15	13.8927	15.4945	16.6666	17.5070
BWCS-11	15-1/2 × 15-1/2	15.3491	17.1144	18.4060	19.3386

PVC Coated Barbed Wire in Action

• Enhanced Security: PVC coated barbed wire, when used on top of chain-link fences, provides an attractive yet secure barrier. The dark green color blends well with the environment, making it less conspicuous while still offering a strong deterrent.

• Eco-Friendly Fencing: Combining PVC coated barbed wire with traditional fence posts creates an environmentally friendly, practical, and economical border for grasslands and other agricultural areas.

Conclusion

PVC coated barbed wire combines traditional barbed wire’s security benefits with modern materials to create a highly durable, visually appealing fencing solution. Whether for security, livestock containment, or boundary protection, PVC coated barbed wire offers an ideal choice for a variety of applications.
