Tecco High Tensile Mesh Factory: Your Reliable Partner for Slope Protection
Unstable slopes can create significant hazards, including landslides, rockfalls, and erosion. At our Tecco High Tensile Mesh Factory, we manufacture high-strength solutions to stabilize slopes and protect infrastructure. Designed using advanced materials and strict quality controls, our meshes deliver safety, durability, and long-lasting performance for a wide range of applications.At our Tecco High Tensile Mesh Factory, we manufacture durable and high-performance solutions for slope stabilization and rockfall protection. Designed to address potential geological hazards like collapses, shallow landslides, and rockfalls, Tecco Mesh ensures long-lasting safety and stability.
How Tecco Mesh Works
Tecco Mesh is installed using steel anchors (capable of applying prestress), wire rope anchors, specialized anchor bearing plates, and edge support ropes when required. The flexible mesh, as the core component, is laid over slopes to prevent geological hazards and reinforce unstable soil or rock formations.
Tecco Mesh Technical Parameters
- Wire Diameter: 3.0mm high-strength steel wire
- Tensile Strength: Exceeds 1770 MPa
- Mesh Size: 65mm x 65mm
- Standard Roll Dimensions: 10m x 3.5m (modifiable based on project needs)
Anchors Used with Tecco Mesh
- Threaded Steel Anchors:
- Diameter: Ø25/28mm
- Processed threads on one end for secure installation.
- Optional hot-dip galvanization for corrosion resistance.
- Driven Anchors:
- Diameter: Ø16mm steel bars
- Length: 0.3m to 0.6m
- Hook welded on one end for added functionality.
Tecco Mesh Models
- GTC-65A
- GTC-65B
Main Protective Functions of Tecco Mesh
- Reinforces slopes to prevent collapses, weathering, and detachment.
- Suppresses shallow landslides and controls localized or small rockfalls.
- Ideal for softer slopes and small rockfall scenarios.
- Corrosion-resistant for up to 100 years, ensuring long-term durability.
- Provides 70%-80% reinforcement capacity but unsuitable for large unstable rocks exceeding 1 cubic meter.
Why Choose Tecco High Tensile Mesh Factory?
Our Tecco High Tensile Mesh Factory ensures superior quality by manufacturing products with high-tensile steel wire, advanced corrosion resistance, and precise engineering. We customize solutions to meet specific project needs and ensure timely delivery. Whether for infrastructure, mining, or environmental protection, our factory guarantees safety and reliability.
Contact us today to learn how Tecco Mesh from our Tecco High Tensile Mesh Factory can secure your slopes effectively.
Applications of Tecco High Tensile Mesh
- Stabilizing slopes to prevent landslides and erosion.
- Providing rockfall protection for roads, railways, and buildings.
- Controlling soil erosion on steep and unstable terrains.
- Enhancing safety in mining sites by preventing rock displacement.
Benefits of Tecco High Tensile Mesh
- Delivers superior tensile strength for reliable slope stabilization.
- Features corrosion-resistant coating for extended durability.
- Reduces costs by 60-80% compared to traditional systems.
- Simplifies installation, saving time and labor.
- Adapts to various terrains and project conditions.

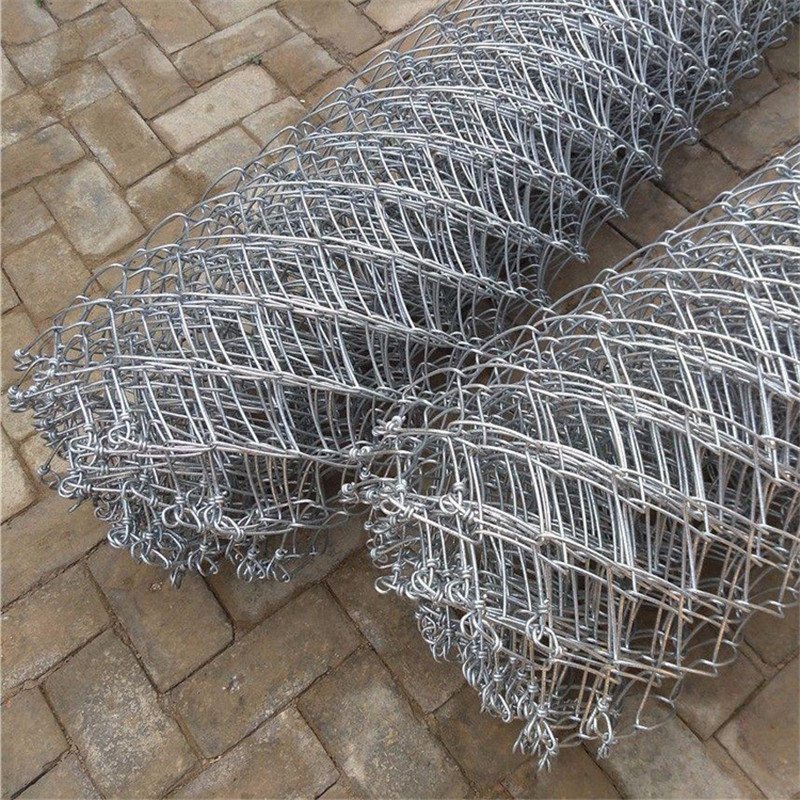

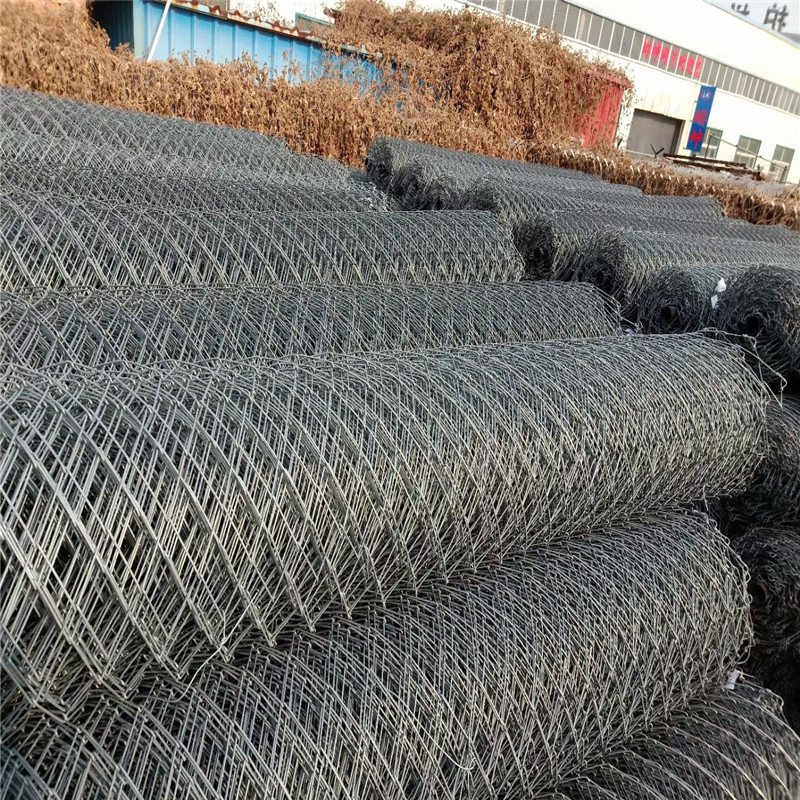

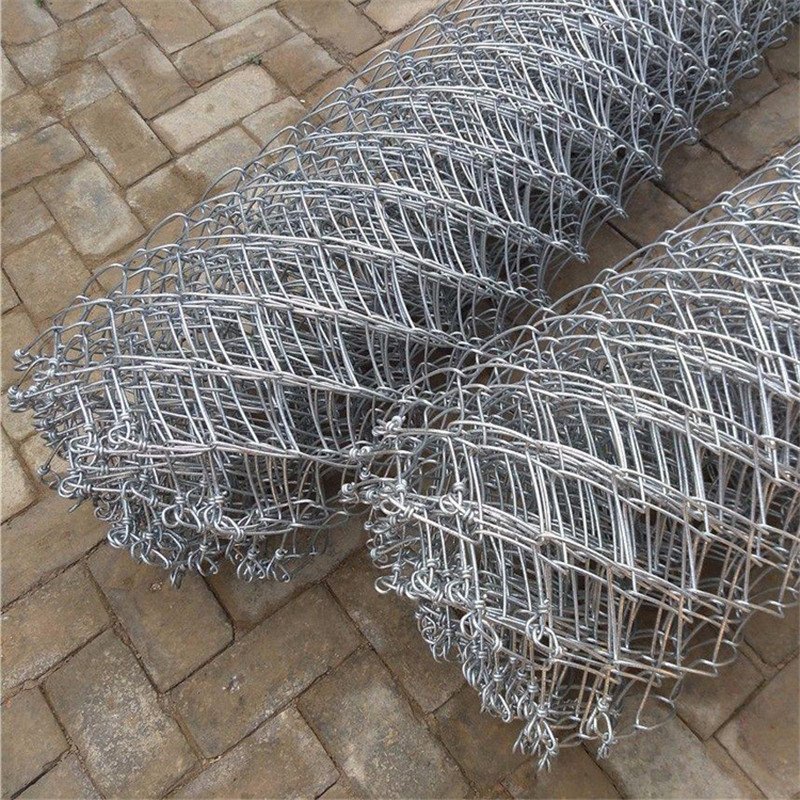

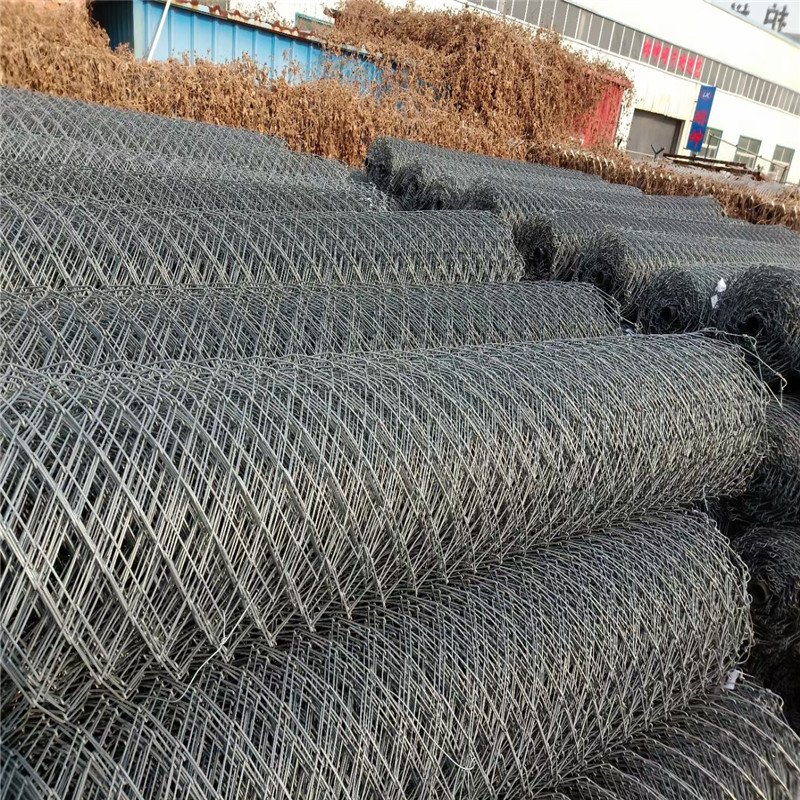

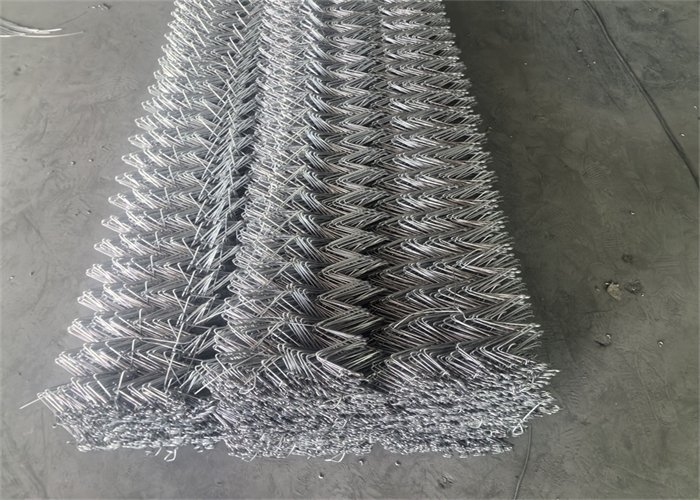

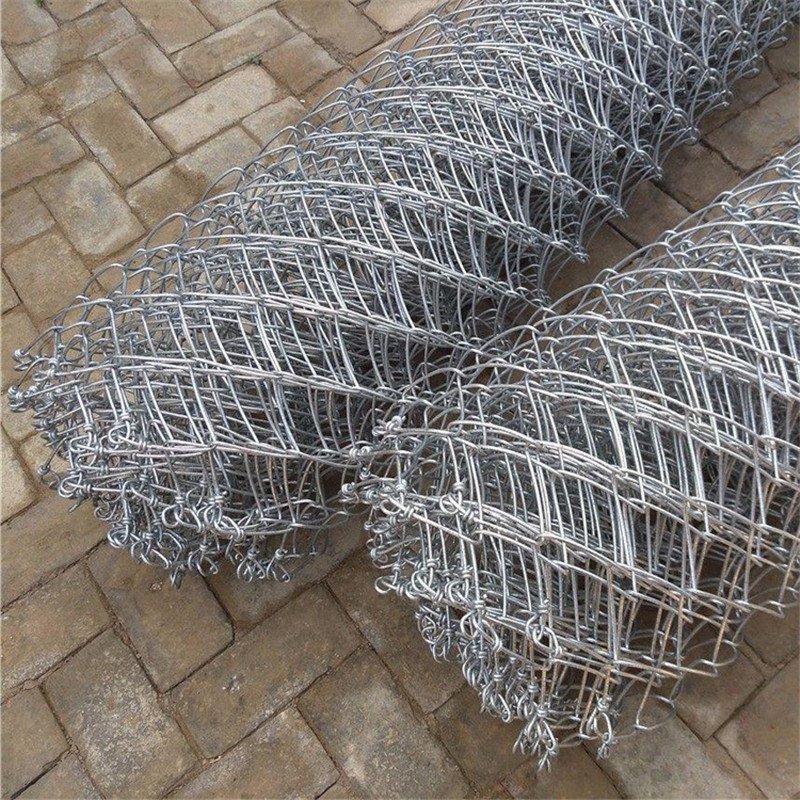

Packing at Tecco High Tensile Mesh Factory
- Roll Widths: Available in 2m, 2.5m, 3m, 3.5m, and 4m. Custom widths are offered.
- Roll Lengths: Standard lengths include 10m, 20m, and 30m, with custom sizes available.
- Packing Method: Each roll is knotted at the edges and packed securely on pallets for safe transport.
- Delivery: Efficient shipping ensures timely delivery to meet project schedules.
Complete Specifications of Tecco High Tensile Mesh
| Specification | Tecco G45/2 | Tecco G65/3 | Tecco G80/4 |
|---|---|---|---|
| Wire Diameter | 2.0mm | 3.0mm | 4.0mm |
| Steel Quality | High-tensile steel wire | High-tensile steel wire | High-tensile steel wire |
| Tensile Strength of Wire | ≥ 1770 N/mm² | ≥ 1770 N/mm² | ≥ 1770 N/mm² |
| Tensile Resistance of Wire | 5.5kN | 12.5kN | 18.0kN |

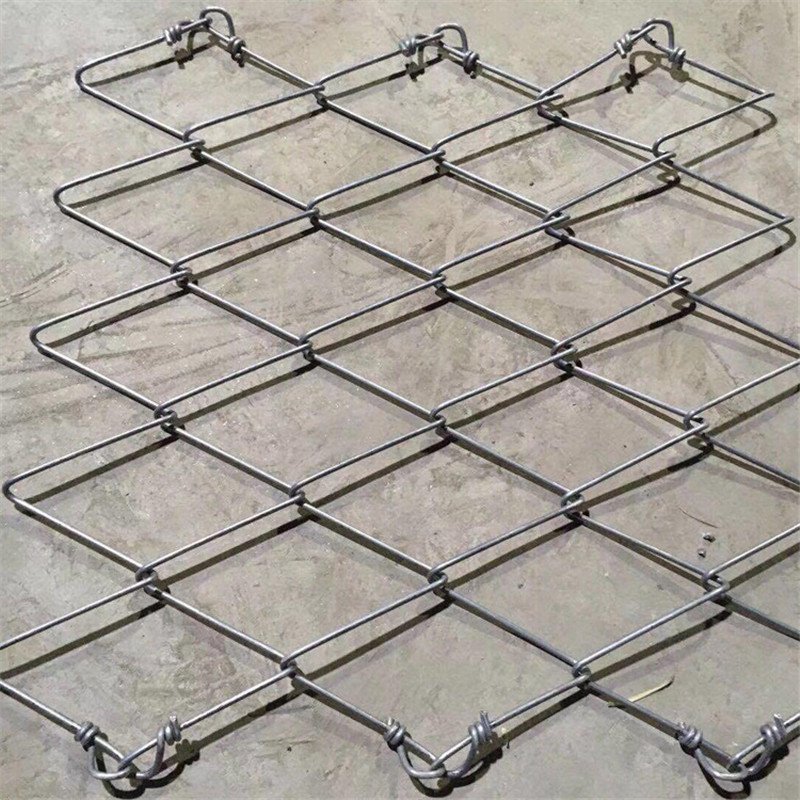

| Mesh Shape | Rhomboid | Rhomboid | Rhomboid |
| Tensile Strength of Mesh | ≥ 85 kN/m | ≥ 150 kN/m | ≥ 250 kN/m |
| Diagonal Dimensions | 62mm x 95mm (+/- 3%) | 83mm x 143mm (+/- 3%) | 95mm x 150mm (+/- 3%) |
| Mesh Width | 48mm (+/- 3%) | 65mm (+/- 3%) | 80mm (+/- 3%) |
| Corrosion Protection | Zn/Al coating (95% Zinc, 5% Aluminum) | Zn/Al coating (95% Zinc, 5% Aluminum) | Zn/Al coating (95% Zinc, 5% Aluminum) |
| Coating Thickness | Minimum 125g/m² | Minimum 150g/m² | Minimum 150g/m² |
| Salt Spray Test | 2000 hours (EN ISO 9227) | 1700 hours (EN ISO 9227) | 1700 hours (EN ISO 9227) |
| Roll Widths | 3.5m | 2m, 2.5m, 3m, 3.5m, 4m | 2m, 2.5m, 3m, 3.5m, 4m |
| Roll Lengths | 10m, 20m, 30m, custom lengths | 10m, 20m, 30m, custom lengths | 10m, 20m, 30m, custom lengths |

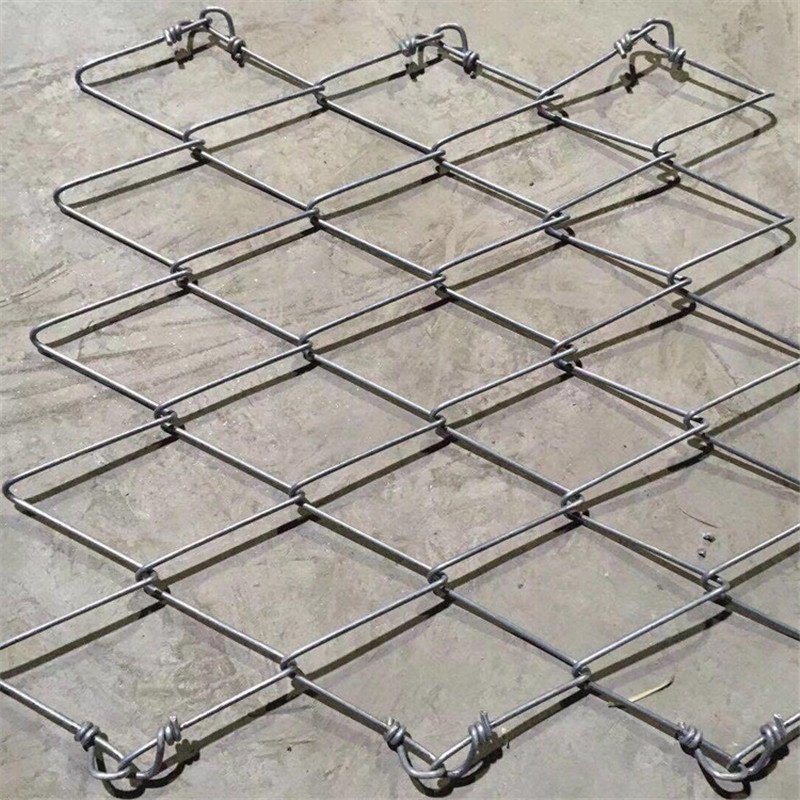

| Mesh Edges | Knotted | Knotted | Knotted |
| Weight per m² | 1.1kg | 3.3kg | 4.8kg |
| Total Surface Area per Roll | 117m² | 70m² | 56m² |
| Roll Weight | 128kg | 231kg | 268kg |
| Load Capacity | Light rockfall protection | Medium slope stabilization | Heavy rockfall protection |
| Edge Protection Angle | 54° | 49° | 45° |
| Puncturing Resistance | ≥ 80 kN | ≥ 280 kN | ≥ 370 kN |
| Shearing Resistance | ≥ 40 kN | ≥ 140 kN | ≥ 185 kN |
| Slope-Parallel Stress | ≥ 10 kN | ≥ 50 kN | ≥ 75 kN |
| Salt Resistance | ≤ 5% dark rust after 2000 hours | ≤ 5% dark rust after 1700 hours | ≤ 5% dark rust after 1700 hours |
| Applications | Small rock stabilization | General slope stabilization | High-risk rockfall and erosion |
Production Process at Tecco High Tensile Mesh Factory
- Source high-tensile steel wire for superior strength.
- Apply Zn/Al coating to enhance corrosion resistance.

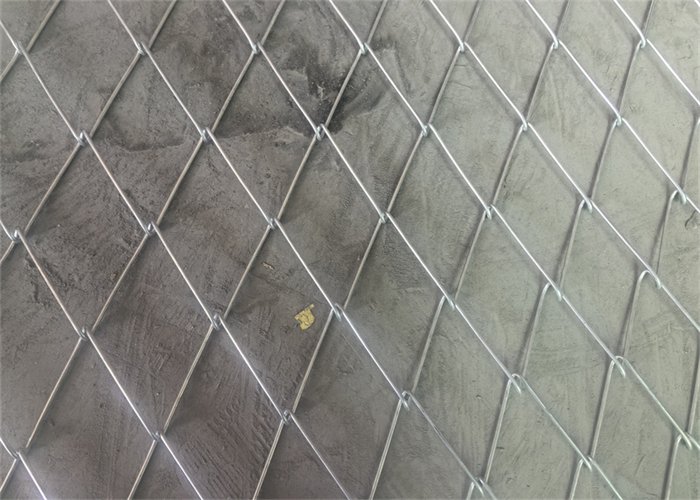

- Weave wires into precise rhomboid patterns for flexibility and stability.

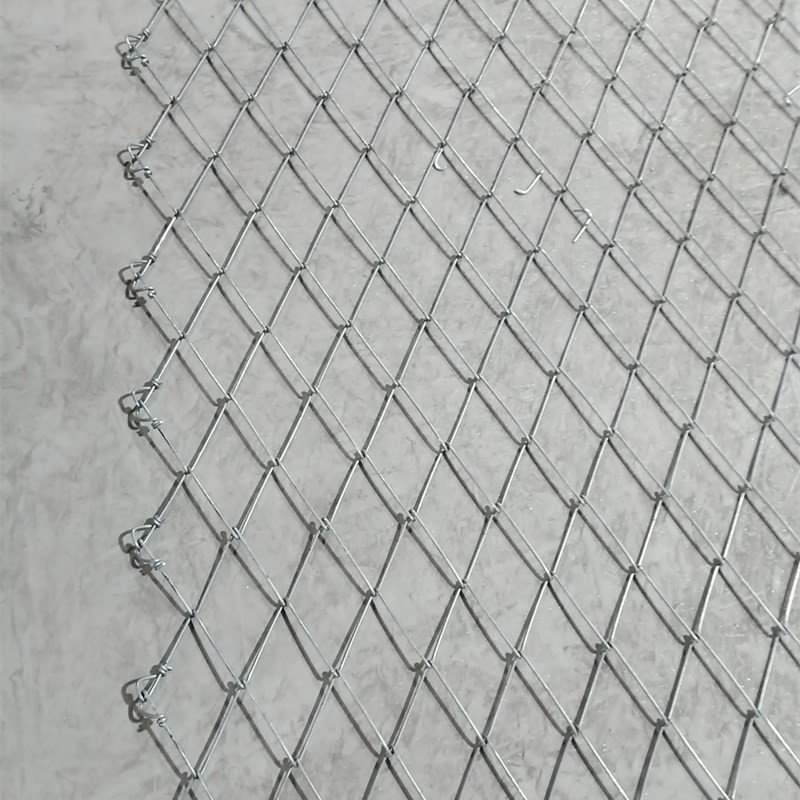

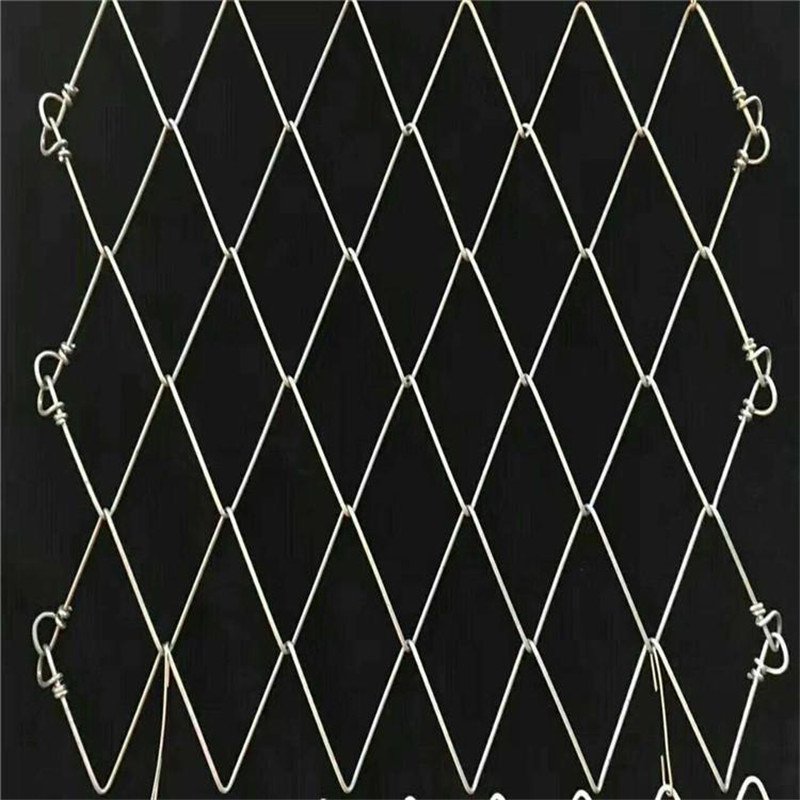

- Knot edges securely to simplify and ensure proper installation.
- Test each roll for tensile strength and environmental resistance.
- Pack rolls carefully on durable pallets for safe transportation.
Conclusion
The Tecco High Tensile Mesh Factory delivers premium solutions for slope stabilization and rockfall protection. Our high-tensile meshes combine strength, corrosion resistance, and cost-effectiveness, making them perfect for construction, mining, and infrastructure projects. With customizable sizes and reliable delivery, we ensure your project’s safety and success. Contact our factory today for high-performance slope protection solutions.
