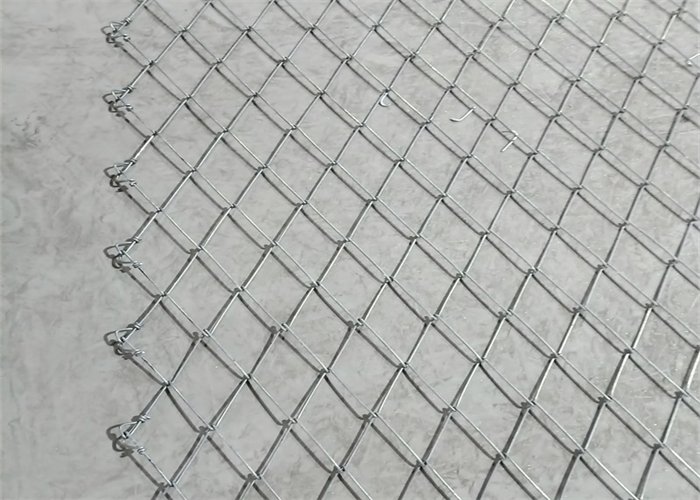

TECCO® Mesh G45/2 is a high-tensile steel wire mesh system designed to protect against rockfall and slope instability. Engineers widely use this mesh in geotechnical applications to safeguard areas prone to natural hazards such as landslides, avalanches, and mudflows. With its exceptional strength, durability, and resistance to corrosion, TECCO Mesh G45/2 guarantees long-term performance in challenging environments.
Key Benefits
High Tensile Strength: The mesh offers a tensile strength of ≥ 1,770 N/mm², which helps resist the forces of rockfall and slope movement.
Superior Corrosion Resistance: The mesh features GEOBRUGG SUPERCOATING, a protective layer of 95% Zn and 5% Al. This coating ensures durability in harsh weather and environmental conditions.

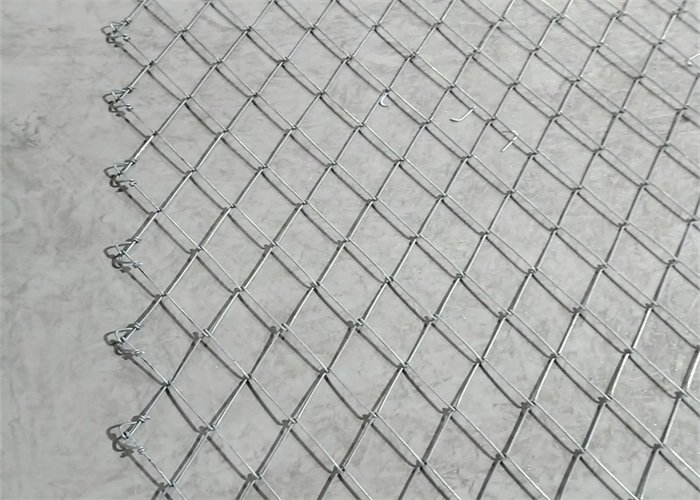

Rhomboid Mesh Shape: The mesh’s unique rhomboid shape distributes the load effectively, making it ideal for handling dynamic forces like rockfall.
Customizable Dimensions: The mesh offers flexibility with dimensions, allowing for easy customization to meet specific project requirements.
Complete Specifications
| Specification | Details |
|---|---|
| Mesh Shape | Rhomboid |
| Wire Diameter | 2.0 mm |
| Diagonal Dimensions (x ∙ y) | 62 ∙ 95 mm (+/- 3%) |
| Tensile Strength | ft ≥ 1,770 N/mm² |
| Mesh Width (Di) | 48 mm (+/- 3%) |
| Material | High-tensile steel wire |
| Mesh Angle (ε) | 54° |
| Tensile Resistance of a Wire (Zw) | 5.5 kN |
| Total Height of Mesh (htot) | 7.0 mm (+/- 1 mm) |
| Mesh Clearance (hi) | 3.0 mm (+/- 1 mm) |
| Corrosion Protection | GEOBRUGG SUPERCOATING (95% Zn / 5% Al) |
| Coating Thickness | Min. 125 g/m² |
| Rust Resistance (Salt Spray Test) | ≤ 5% dark brown rust (2000 hours, EN ISO 9227) |
| No. of Meshes Longitudinal (nl) | 10.5 pcs/m |
| No. of Meshes Transversal (nq) | 16.1 pcs/m |
| Tensile Strength of Mesh (zk) | ≥ 85 kN/m |
| Bearing Resistance Against Puncturing (DR) | ≥ 80 kN / 110 kN |
| Bearing Resistance Against Shearing-Off (PR) | ≥ 40 kN / 55 kN |
| Slope Parallel Tensile Stress (ZR) | ≥ 10 kN / 10 kN |
| Roll Width (bRoll) | 3.9 m |
| Roll Length (lRoll) | 30 m |
| Total Surface per Roll (ARoll) | 117 m² |
| Weight per m² | 1.1 kg/m² |
| Weight per Mesh Roll (GRoll) | 128 kg |
| Elongation in Longitudinal Test | δ < 6.0 % |
| Classification (EAD 230025-00-0106) | Group 4, Class A (P25, P33) |

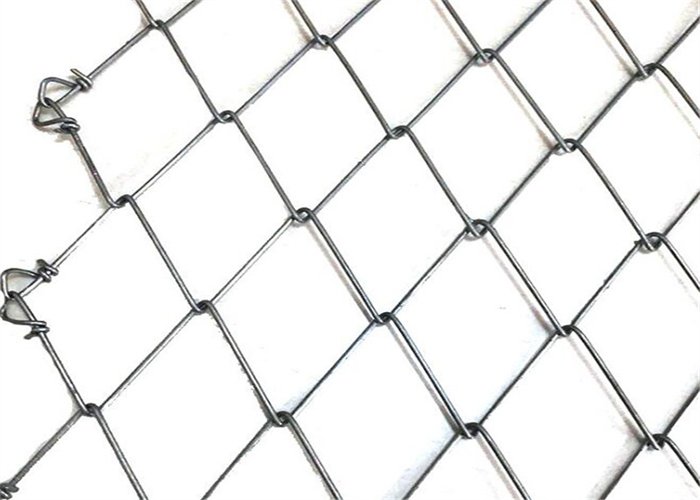

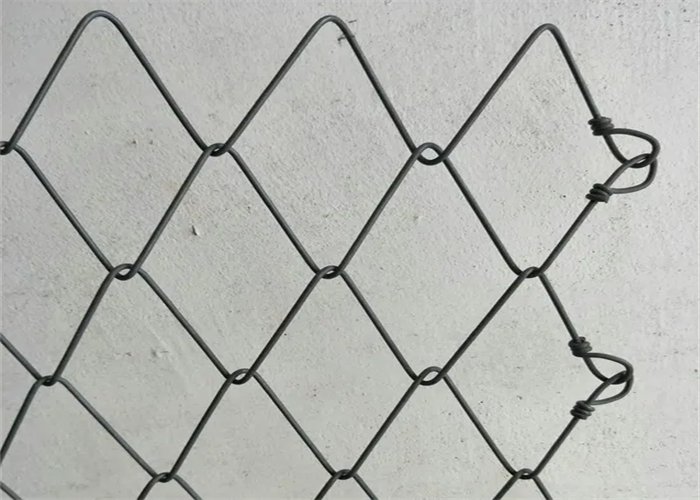

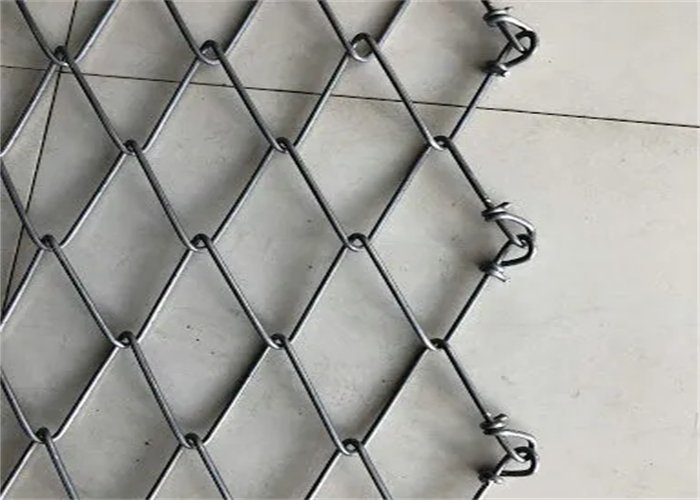

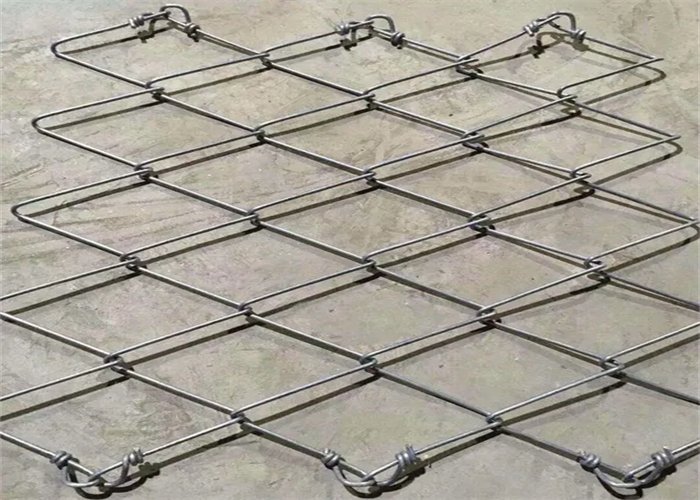

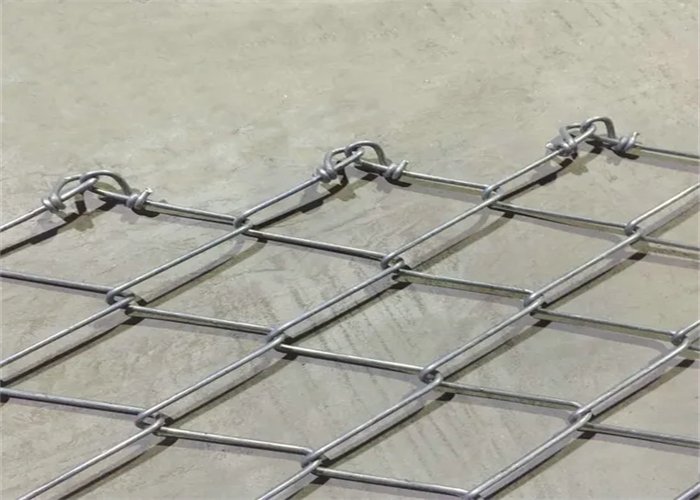

| Mesh Edges | Mesh ends knotted |
Applications of TECCO Mesh G45/2
TECCO Mesh G45/2 is primarily used for:
- Rockfall Protection: It helps prevent rock and debris from falling onto roads, railways, or inhabited areas.
- Slope Stabilization: The mesh supports soil and rock slopes to prevent sliding and erosion.
- Avalanche Protection: In mountainous regions, TECCO mesh provides a barrier against avalanches, protecting infrastructure and property.
- Mudflow Management: It effectively contains mudflows, reducing damage in flood-prone areas.
Installation and Maintenance of TECCO Mesh G45/2
Proper installation and maintenance are critical for maximizing the performance of TECCO Mesh G45/2. Experienced professionals familiar with geotechnical engineering practices should install the mesh to ensure proper installation and performance. Regular inspection and maintenance of the mesh, particularly after extreme weather events or natural disasters, ensure the system remains effective. It is also important to replace any damaged sections promptly to maintain the protective barrier.
Conclusion
TECCO Mesh G45/2 is an advanced, high-performance steel wire mesh that offers exceptional strength, durability, and corrosion resistance. Its versatility in protecting against rockfall, slope instability, avalanches, and mudflows makes it an ideal choice for various geotechnical applications. With customizable dimensions, high tensile strength, and reliable corrosion protection, TECCO Mesh G45/2 provides long-term stability and safety in challenging environments.
For more information about TECCO Mesh G45/2, including technical support and project specifications, please contact us directly.
