PVC pinahiran labaha wire is an advanced form of traditional razor wire that combines the sharp deterrent qualities of razor wire with a durable polyvinyl chloride (PVC) patong na patong. This protective layer not only boosts the performance of razor wire by increasing its resistance to corrosion but also offers aesthetic benefits, allowing the wire to blend seamlessly with various environments. PVC coated one is particularly effective in applications where both security and appearance are important.
Key Features and Benefits of PVC Coated Razor Wire
Paglaban sa kaagnasan:
The PVC coating provides an additional protective layer that prevents moisture, salt, and other corrosive substances from coming into contact with the steel wire. This increases the wire’s longevity and reduces maintenance requirements, especially in areas with high humidity or industrial zones with harsh chemical exposure.
Customization with Color Options:
PVC coated razor wire comes in a variety of colors such as green, itim na itim, and brown. This enables you to choose the color that best suits your environment, whether it’s to match with landscaping, mga bakod, or to blend in with the surroundings. Green is a popular choice for outdoor applications as it helps the wire blend with natural environments, making it less obtrusive.
Weather Resistance:
PVC-coated wire has excellent weather resistance properties. It can withstand extreme weather conditions, including high UV exposure, rain, snow, and even ice, without deteriorating. This makes PVC coated razor wire a long-lasting solution, even in harsh climates.
Aesthetic Appeal:
Beyond its security features, the PVC-coated wire enhances the appearance of security installations. Ang makinis, uniform coating delivers a sleek, modern look, which is especially important in residential or commercial areas where appearance plays a key role.
Mababang Pagpapanatili:
The PVC coating reduces the maintenance required compared to uncoated razor wire. It prevents rust and fading, significantly lowering the need for frequent repairs or replacements.
Durability and Strength:
The core wire of PVC-coated razor wire is typically made from high-tensile steel or stainless steel, ensuring the necessary strength and durability to withstand attempts to cut or breach the barrier. The razor edges further increase deterrence for intruders, making it a highly effective security solution.
Specifications of PVC Coated Razor Wire
| Pagtutukoy | Mga Detalye |
|---|---|
| Materyal | High tensile steel wire, hindi kinakalawang na asero |
| Patong na patong | PVC (Polyvinyl Chloride) |
| kapal ng patong | Typically 0.5mm to 1mm |
| Core Wire Diameter | 2.5mm, 3mm |
| Coil Diameter | 450mm, 500mm, 600mm, 720mm, 980mm |
| Barb Length | 12mm to 65mm (customizable) |
| Barb Distance | 26mm to 100mm (customizable) |
| Color Options | Berde, Itim, Brown, Custom Colors |
| Coil Length | 7m, 10m, 12m, 15m, 16m (customizable) |
| Clips | 3 o 5 clips per coil (customizable) |
| Lakas ng Paghatak | 1500 N/Sqm |
| Pag-iimpake | Waterproof paper inside and woven bags |
| HS Code | 73130000 |

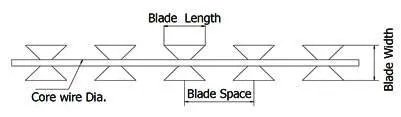

Here is the Specification Table for the Razor Wire:
| Numero ng Modelo | Blade Shape | Blade Thickness mm |
Coil Wire Dia mm |
Blade Length mm |
Blade Width mm |
Blade Spacing mm |
| BTO-10 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 10 ± 1 | 13 ± 1 | 26 |
| BTO-12 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 |
| BTO-18 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 18 ± 1 | 15 ± 1 | 33 |
| BTO-22 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 |
| BTO-28 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 28 ± 1 | 15 ± 1 | 45 |
| BTO-30 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 30 ± 1 | 18 ± 1 | 45 |
| CBT-60 |  |
0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 |
| CBT-65 |  |
0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 |
Hot-Dipped Galvanized Razor Wire Specifications
| Plate Zinc Coating | Core Wire High Carbon Steel Wire | Core Wire Low Carbon Steel Wire |
|---|---|---|
| 40G/m² | 40G/m² | 15G/m² |
| 80G/m² | 80G/m² | 80G/m² |
| 120G/m² | 120G/m² | 200G/m² |
| 200G/m² | 200G/m² | 275G/m² |
| 230G/m² | 230G/m² | 300G/m² |
| 250G/m² | 250G/m² | 250G/m² |
| 275G/m² | 275G/m² | 275G/m² |
Stainless Steel Razor Wire Specifications
| Plate Grade | Core Wire Stainless Steel Wire | Core Wire Low/High Carbon Steel Wire |
|---|---|---|
| SUS430 | SUS430 | 40G/m² |
| SUS430 | SUS430 | 80G/m² |
| SUS201 | SUS304 | 120G/m² |
| SUS304 | SUS304 | 200G/m² |
| SUS316 | SUS316 | 230G/m² |
| SUS316L | SUS316L | 250G/m² |
| SUS316L | SUS316L | 275G/m² |
What is PVC Coated Razor Wire?
PVC-coated razor wire combines the sharp security benefits of traditional razor wire with the protection provided by a PVC coating. The coating is applied through either extrusion or dipping, enhancing the wire’s durability by preventing corrosion, moisture penetration, at pinsala sa kapaligiran. Dagdag pa rito, the PVC coating comes in various colors, offering flexibility for different settings, such as blending with the environment in residential or commercial areas.
The wire itself is made from high-quality steel or stainless steel, both of which are known for their tensile strength and ability to resist breaking. This ensures the wire maintains its strength under physical stress. The thin but durable PVC layer increases the wire’s resistance to harsh weather conditions like UV rays, rain, and high winds.
By applying the PVC coating, the wire not only becomes more resistant to environmental factors but also becomes less visually intrusive compared to traditional razor wire, making it ideal for a wider range of applications.
Pangwakas na Salita
PVC coated razor wire offers an effective, matagal na panahon, and visually appealing security solution. Its corrosion resistance, combined with color customization options and robust weather resistance, makes it suitable for various environments. Para man sa residential, komersyal na, industrial, or military applications, PVC coated razor wire is an excellent choice for those seeking both security and aesthetics in their fencing solutions.
For more information or to request a quote, feel free to contact us!
How PVC Coated Razor Wire is Made
The manufacturing process of PVC-coated razor wire follows a few important steps that ensure a high-quality product:
Wire Preparation: Una, the steel wire undergoes a thorough cleaning process. This removes any dirt, kalawang, or other contaminants, ensuring a clean surface that will enhance the bonding of the coating.
Razor Blade Formation: Susunod, manufacturers punch the steel wire to create sharp, barbed edges. These razor blades provide the security function of the wire, making it difficult for anyone to cut or pass through.
PVC patong: After forming the blades, manufacturers coat the wire with PVC using extrusion or dipping methods. This process adds a protective layer, enhancing the wire’s durability by making it resistant to corrosion, moisture, and environmental wear.
Coiling: Once the coating is applied, the wire gets wound into coils of various sizes. This step makes it easier to handle, transport, at i-install. Dagdag pa, manufacturers can customize the coil size based on the customer’s specifications.
Pagpapasadya: Sa wakas, manufacturers offer customization options. Customers can adjust the product to different lengths, coil sizes, and colors according to their specific needs.
